Bill payment kiosk with cash validator

$4700.00

≥3600 Others

Min. Order:: 3600 Others

Min. Order:: 3600 Others

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Hong Kong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	600 units per month
Supply Ability:	600 units per month
Payment Type:	T/T,L/C
Incoterm:	FOB,CFR,CIF,FCA
Certificate:	ISO9001, UL, CE
HS Code:	84716040
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Hong Kong

Product Description

BILL PAYMENT KIOSK SOLUTION

【Model SKTD-1047 Series】

2021.12.17

Introduction:

This Kiosk is originally designed for Payment Service Provider who want to extend their business scale from online to offline, or to compete with the counterpart in the market by providing value-added service. This lobby kiosk is designed with capacitive touch screen as the main operation panel, which offer the tactile operation experience for the end user; Equipped with one cash recycler module, this kiosk can handle banknotes more than bank cards. We specially designed on POS holder so that PSP can select the proper POS to provide the bank card service, but without additional investment on the complicated bank card transaction. Nowadays, this kiosk has X86 platform and Android platform to meet different requirements from client.

Product Features

² Dual Screen design, 17 inch CAP touchscreen for operation and 19 inch display as digital signage.

² Equipped with Cash Recycler to handle most of the banknotes.

² Equipped with door alarm sensor to detect the illegal opening.

² Reserved the mounting holes in the bottom to allow fix the machine with anchor bolts.

² Reserved POS holder so that PSP can provide bank card service；

² All drivers from windows to android will be offered.

Application Scenarios:

² Mobile Phone Top Up; Utility Payment; Electricity or Gasoline Payment; Toll payment; Prepaid Card Top Up; Internet Account Top Up, or other service developed by PSP.

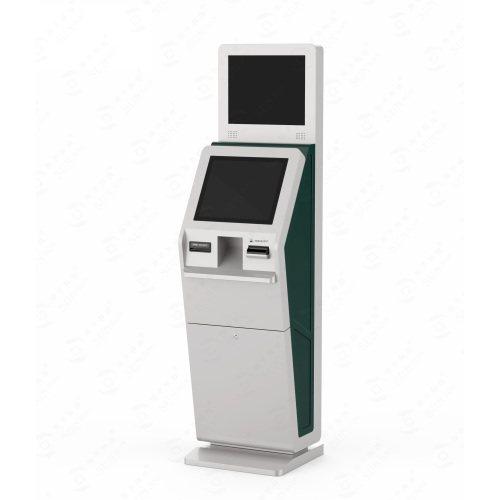

bill payment kiosk (1)

See next page for detailed configuration

Product specifications

No.	Components	Detail Description	Remarks
1	Android Industrial Motherboard	Industrial Motherboard, 64bit process, 1.8GHz; DDR3 4G RAM; Storage: 16G, Storage can be extended as request. 2RS232, 2/8USB, support HDMI, Integrated Net Card, SoundCard, Display Card etc	X86 platform is available
2	19 inch Top Advertising Screen	Brightness: 300cd/m2; angle：horizontal 100°above, Vertical 80°above, Contrast: 450:1; Backlight tube life：more than 40,000hours; Operating temperature：-20-50°C;Response Time:16ms；Dot pitch: 0.297；Max. resolution: 1280×1024
3	17inch Touch Screen	17inch Capacitive Touch Screen; Brightness: 300cd/m2; angle：horizontal 100°above, Vertical 80°aboveContrast: 450:1; Backlight tube life：more than 40,000hours; Operating temperature：-20-50°C;Response Time:16ms；Dot pitch: 0.297；Max. resolution: 1280×1024
5	Cash Recycler	Bezel: 82 / 85 mm width; Note Dimensions Accepts: Width 60 - 85 mm, Length 115 -170 mm, Lockable Cashbox, Capacity:1000notes, recycling box capacity 70pcs
6	Receipt Printer	Thermal Printer, Paper Width: 80mm. Print Method:Direct thermal line print;Print Speed:150mm/S;Print Density:8dots/mm;Cutter Life 1,000,000cuts
7	Amplifier and Speakers	Left and right bi-channel, amplified output, multimedia speaker
8	Internet Access	Both Lan and Wlan
9	4G data module	Support SIM data connection. Supports TD-LTE and FDD-LTE, TD-SCDMA,WCDMA, GSM
10	Door Alarm System	sensors to detect the door status
12	Enclosure (Indoor Porpuse)	Customized enclosure, Durable Steel.Frame, powder coated steel back covers; Slim and smart design; Easy to install and operate; Moistureproof、Anti-rust、Anti-acid、Anti-dust、Static free Notes:Any color option; Customized Logo/lightbox avaliable.
See next page for modules layout details

POS Holder
