White-label ATM Automated Teller Machine

White-label ATM Automated Teller Machine

USD7600

≥10 Piece/Pieces

Payment Type:: L/C, T/T

Incoterm:: EXW

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Delivery Time:: 45 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	50000 Pieces/year
Payment Type:	L/C,T/T
Incoterm:	EXW
Transportation:	Ocean,Air

Product Description

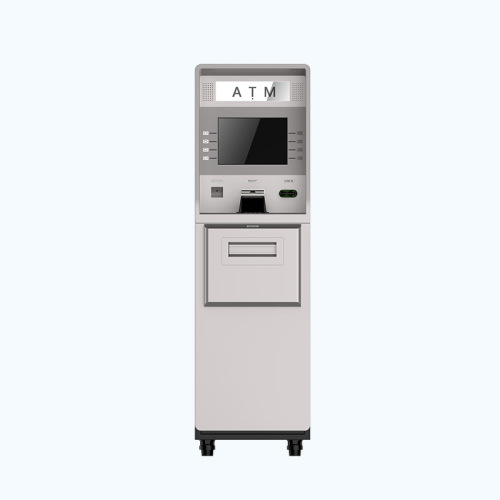

White-label ATM Automated Teller Machine

This White-label ATM Automated Teller Machine has 2 dispenser cassettes, each has a storage capacity of 3000 bills. The system supports maximum 4 dispenser cassettes (Optional). The built-in NFC module enables transactions without inserting bank card, and Bio-recognition modules such as fingerprint & face recognition modules are also available subject to user’s requirements. The following is an introduction of Sunson Standard Automated Teller Machine ATM .

ATM Machine

Main Function

1) Withdraw money, account inquiry

2) Transfer, recharge

3) Print receipt

4) Change password

5) AD player

6) Financial information release

7) Other online transactions

Product Features

1) The appearance is fashionable, the structure is concise, the cabinet body is firm, and the installation and maintenance is convenient.

2) Easy and quick deployment.

3) The transaction is safe and reliable, in line with UnionPay and national secret security certification.

4) Energy saving, green and environmental protection.

5) Personalized APP applications can be superimposed.

Main Specification

Module	Specification
Main Control	Industrial control motherboard, H81 chip, LGA1150CPU architecture; 2 DDRIII memory slots; 2 VGA interfaces; 10 USB,12 RS232 interfaces, two 1000Mb adaptive dual network cards, support TCP/IP protocol, ATX300W power supply; power on with timing switch function

Display	15-inch capacitive touch integrated LED backlit LCD screen, VGA interface, DC12V, resolution 1024768, USB interface, Touch accuracy：40964096

Dispenser Cassette	RS232 interface, AC220V/3A, whole stack of horizontal banknote presenter, 2 withdrawal cassettes + 1 reject box, banknote box capacity is 3000 bills each, and the reject box capacity is 250 notes, banknote cassette can be expanded to 4 (Optional)

Receipt Printer	DC24V, paper width 80mm, Black mark detection of paper run out, half cut, paper roll diameter 80mm.

Card Reader	Standard RS232 interface, DC24V, two-in-one, support read and write of contact IC card and magnetic card, with electric door, magnetic card conforms to ISO7810 ID-1,7811 standard, IC card conforms to ISO7816-2 standard, pass EMV or PBOC authentication

Encryption PIN pad	Standard RS232 interface, certified by PCI V3.0, with waterproof, dust-proof, riot-proof and leak-proof, single DES, double DES, 3DES algorithm, unpacking self-destruct program

Non-contact Card Reader	USB interface, DC5V (powered by USB), working frequency 13.56MHz, conforming to ISO-7816 standard A, B and C grade (5V); conforming to ISO-14443 standard A & B class , supporting S50/S70 card; supporting NFC function, supporting transaction of non-contact IC card; RF reading and writing distance: more than 50mm


Power Supply	Input: AC110/220V, 150W/200W, Output: DC12V/12A, DC24V/8.8A
Multi-media Speakers	Support for multimedia voice system
Dimension	500x780x1700mm
Weight	170Kg

Note: The above configurations are for reference, we remain the rights of upgrade without prior notice.

Sunson Profile

Deposit/Dispensing ATM Automated Teller Machine

FAQ:

Q1: Can I customize the product I ordered?
A1: Absolutely yes, customization offer from customers are welcome in our company.

Q2: How long is the warranty time for your products?
A2: The standard warranty is 1 year from the date of delivery, but can extended if extra cost paid.

Q3: What is your after-sale service?
A3: Our well-trained engineers can provide you any technical support in time. Our sales persons are also available at 24/7 on mobile phone, email etc.

Q4: What payment methods your company accept?
A4: We accept most of the payment methods, but mainly accept T/T,L/C.
