White-label Bulk Note Acceptor BNA
-
USD12313≥10 Piece/Pieces
- Payment Type:
- L/C, T/T
- Incoterm:
- EXW
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 45 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50000 Pieces/year |
| Payment Type: | L/C,T/T |
| Incoterm: | EXW |
| Transportation: | Ocean,Air |

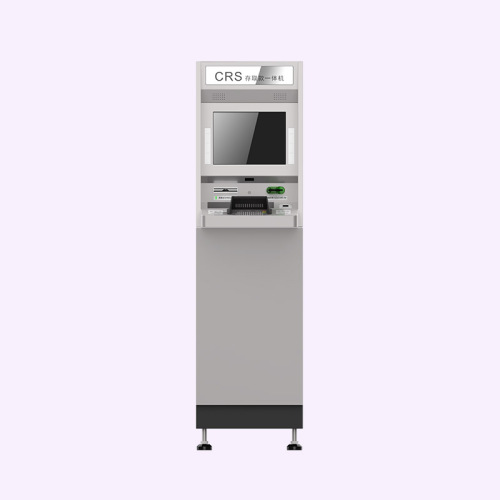

Sunson White-label Bulk Note Acceptor BNA is a banknote deposit/withdraw ATM with 4 revolving cash cassettes, each has a cash box volume of 3000 bills, The recycling box is good to collect up to 1800 rejected notes. Cash Recycling Machine CRS Model SKTD1029 also supports banknote serial number recognition.
Main Functions
1) Deposit, withdrawal and inquiry
2) Transfer, recharge.
3) Receipt printout
4) Change password
5) Advertising
6) Financial information release
7) Online transaction
Product Features
1. The appearance is fashionable, the structure is concise, the cabinet body is firm, and the installation and maintenance is convenient.
2. Convenient location and quick deployment.
3. The transaction is safe and reliable. In line with UnionPay and customized transaction channels.
4. Energy saving, green and environmental protection.
5. Personalized APPs can be superimposed.
Main Specification
|
Module |
Specification |
|
|
Main Control |
Industrial control motherboard, H81 chip, LGA1150CPU architecture; 2 DDR3 memory slots; 2 VGA interfaces; 10 USB,12 RS232 interfaces, 2 1000Mb adaptive dual network cards, Support TCP/IP protocol, ATX300W power supply; Power on with timing switch function. |
|
|
Display |
15-inch capacitive touch integrated screen, VGA interface, DC12V, Resolution 1024*768, Touch accuracy 4096*4096. |
|
|
Revolving Cassette |
USB interface, DC24V/33A, can put up to 200 sheets at a time (max 100 notes for each transaction), four recycling banknote cassettes with box capacity of 3000 bills each, a reject box with capacity of 1800 banknotes, banknote storage direction, four-directions banknote collector, with crown character/serial number recognition function, front-end maintenance. |
|
|
Receipt Printout |
DC24V, paper width 80mm, Black mark detection of paper run out, half cut, paper roll diameter 80mm. |
|
|
Card Reader |
Standard RS232 interface, DC24V, two-in-one, support contact IC card, magnetic card read and write, with electric door, magnetic card conforms to ISO7810 ID-1,7811 standard, IC card conforms to ISO7816-2 standard, qualified EMV or PBOC authentication |
|
|
Encryption PIN Pad |
Standard RS232 interface, certified by PCI V3.0, with waterproof, dust-proof, riot-proof and leak-proof, single DES, double DES, 3 DES algorithm, Self-destruction during unsealing. |
|
|
Non-contact Card Reader |
USB interface, DC5V, Operating frequency 13.56MHz, ISO-7816 standard A, B and C grade (5V); ISO-14443 standard A & B class, Support S50 /S70 card; Support NFC function, Recognition distance above 50mm. |
|
|
Power Supply |
Input: AC110V/220V, 150W/200W, Output: DC12V/12A, DC24V/8.8A |
|
|
Multimedia Speakers |
Support multimedia voice system. |
|
|
Dimension |
450x1210x 1640mm |
|
|
Weight |
230Kg |
Note: The above configurations are for reference, we remain the rights of upgrade without prior notice.
Application Scenario
CRS are self-service terminals widely used in the financial market, suitable for placing in crowded places such as bank outlets, unattended ATM financial service points, community service centers, supermarkets, tourist attractions and hotel lobbies, etc.
Sunson Profile
FAQ:
Q1: Can I customize the product I ordered?A1: Absolutely yes, customization offer from customers are welcome in our company.
Q2: How long is the warranty time for your products?
A2: The standard warranty is 1 year from the date of delivery, but can extended if extra cost paid.
Q3: What is your after-sale service?
A3: Our well-trained engineers can provide you any technical support in time. Our sales persons are also available at 24/7 on mobile phone, email etc.
Q4: What payment methods your company accept?
A4: We accept most of the payment methods, but mainly accept T/T,L/C.
