Product Description

Multi-point Cashflow Management Platform Solution

I. Brief Introduction:

Multi-point Cashflow Magagement Platform Solution consists of Smart Safe Boxes deployed in supermarket chain stores, money changer points, fast food chain restaurants, or any other chain shops, together with the operation software and the backend platform. The complete system forms a private-owned network which is independent from any banking systems or supervision sections. It is welcomed and widely used by large and medium sized private chain store owners for its security, privacy, real time cashflow management. More importantly, this cash management solution will help to prevent employees from illegal operations with the money.

II. Application Scenarios:

supermarket chain stores, money changer points, fast food chain restaurants, or any other chain shops, retail business, gas stations, gaming houses, lottery industry, cash escort companies, etc.

III. Images:

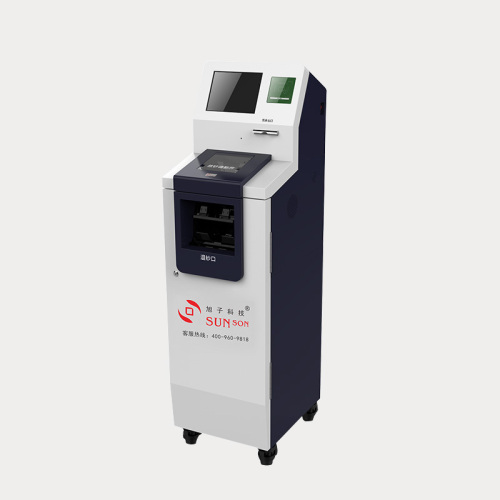

43 Smart Vault B 3 Jpg

IV. Main Specifications

Module	Specification
Main Control	Android 5.1, RK3288 quad-core processor, 2G RAM, 8G Storage memory, Up to 64G TF card storage, with WIFI, 8USB, 2 serial ports, 1 HDMI ,1 VGA, DC12V.
Main Control
Touch Display	10.4 inch capacitive integrated screen, resolution 1024* 768, touch precision: 4096*4096，display ratio 4:3，DC12V, VGA interface, USB interface.
Touch Display
Deposit Cassette	RS232 interface, AC110/220V, Banknote entry capacity 400 sheets, Maximum reject box capacity 50 bills, Refund box capacity 100 notes, Banknote counting speed 800/1000 notes/min. (MIX mode); support the currencies of different countries. Capacity of deposit cash bag: about 20,000 bank notes of different denominations.
Deposit Cassette
Receipt Printer	DC24V, paper width 80mm, Black mark detection of paper run out, half cut, paper roll diameter 80mm.
Receipt Printer
Non-connect Card Reader	USB interface, DC5V, Operating frequency 13.56MHz, ISO-7816 standard A, B and C grade (5V); ISO-14443 standard A & B class, Support Mifxxx S50 /S70 card; Support NFC function, Recognition distance above 50mm.
Non-connect Card Reader
Power Supply	AC110V or AC220V, 150W/200W，Output DC12V/12A, DC24V/8.8A.
Multimedia Speakers	Support multimedia voice system.
Dimension	420x600x1450mm
Weight	135Kg.

Note: The above configurations are for reference, we remain the rights of upgrade without prior notice.
