Hellowave WiFi Temperature Controller Development
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 200pcs/day |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| HS Code: | 9032100000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |

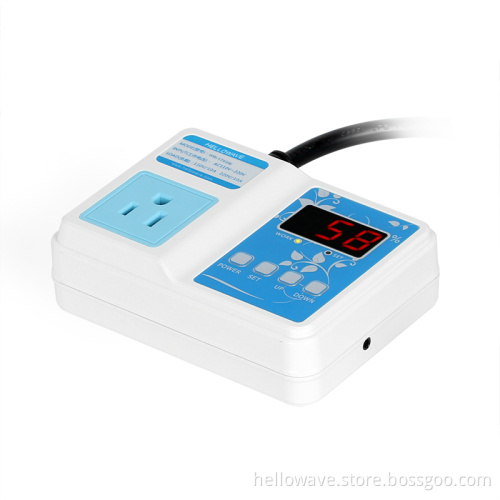

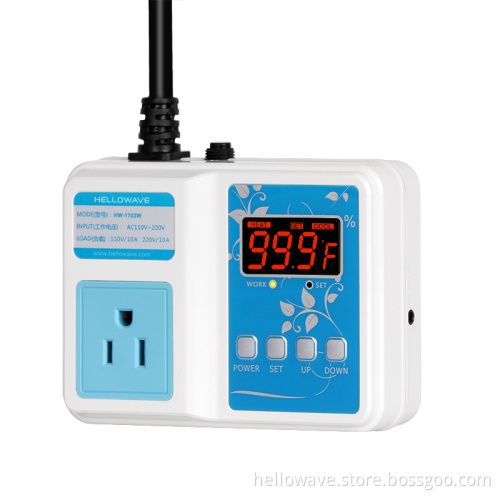

About HW-1803W temperature controller:
- Digital WIFI temperature controller for remote controling.
- Android (6.0) and IOS App online monitoring.
-
Multifunction socket for US.EU standard power plug.
-
Overcurrent breaker for protecting, maximum 5amps.
-
Replaceable waterproof sensor probe.
- NEMA 4X/IP65 gasket front panel.
- Dual MCU IC chip, safety controlling and fast computing.
- Goodsky relay with UL/CE certification, constantly click more than 100,000 times lifetime.
- Optional input:AC110V/220V.
- Hardware lockout plus remote lockout protection.
- Celsius and Fahrenheit display unit switchable.
- High & low temperature alarm system.
- Timing off function.
- Limited temperature pre-setting for protection.
- Power off data save protection.
What does the HW-1803W can do for you?
1803W is the WIFI model upgraded from 1803A, the control range for 1803W is -50℃ ~110 ℃ / -58℉~230℉, most of the user choosed it for a low range temperature controlling such as water heater, air-condition cooler.
Download the App from Google play or Apple store, connect your controller with WIFI, you can control and monitor your device online, the App will alarm you when your device is out of controlling.
1803W series controller only has a single way output, means you can only connect it with a heater or cooler for controlling the temperature at one time.
Fast to learn the difference between each temperature controller.
Model
Probe Measurement Range
Input (Optional)
Accuracy
Load (Intermediate relay extend available )
Controlling Model
Delay Working
C/F Display Unit Switch
Adjusting Value
1803A
(-50℃ ~110 ℃ / -58℉~230℉)
AC 110V,220V
± 0.1 ℃ / ℉
10Amp
Singel way output,either heating or cooling at the same time,controlled by setting a ON and OFF value
Yes
Yes
0.1 / 0.5
1803B
(-30℃ ~300 ℃ / -22℉~572 ℉)
AC 110V,220V
± 0.1 ℃ / ℉
10Amp
Singel way output,either heating or cooling at the same time,controlled by setting a ON and OFF value
Yes
Yes
0.1 / 0.5
1803C
(-50℃ ~110 ℃ / -58℉~230℉)
AC 110V,220V
± 0.1 ℃ / ℉
5Amp
Singel way output,only heating mode, PID control system, high accuracy temperature controlling,apply to incubator, homebrewing which need a high precision temperature.
Yes
Yes
0.1 / 0.5
1803WIFI
(-50℃ ~110 ℃ / -58℉~230℉)
DC12V,24V / AC 110V,220V
± 0.1 ℃ / ℉
10Amp
Singel way output,either heating or cooling at the same time,controlled by setting a ON and OFF value, WIFI remote control and monitor from your App.
Yes
Yes
0.1 / 0.5
