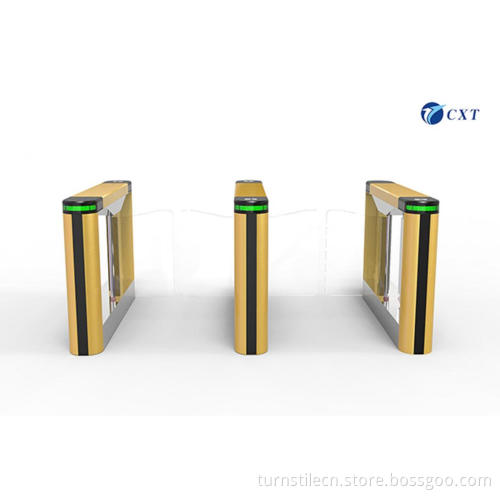

Metro Fast Accessing Speed Gate

Description of Metro Fast Speed Gate:
CXT servo motorized speed gate turnstile, it is ideal for high-level places yet has mass throughout daily, like metro, station, airport etc.
High-Speed Turnstile gate is equipped with triple anti-pinch design: infrared anti-pinch, mechanical anti-pinch and barrier anti-pinch, CXT speed gates can effectively prevent illegal intrusion and tailgating pass.
Speedtype Turnstile adopts CXTO® Patent appearance and Stable & Strong Control Core. It can sensitively detect the behaviors that threaten the passageway safety, such as illegal intrusion, reverse passing, tailgating, and give out audible and visual alarms. Speedtype turnstile can be also linked with other security systems. More speed gates for sale.
 Metro Circular Shape Speed Gate Unique Features:
Ultra Strong Folding Wing Gate Technology
Fast & Stable Operation
Innovative and patented design both in appearance and inner structure
Step-less anti-collision tech for better effect of crashproof.
Superego protection algorithm system and mechanical design.
Merits for smooth running, speed adjustable and low wear.
Module structure design for easier maintenance and parts replacement.
Lane size can be set and has a good anti-pinch performance to protect passengers.
In addition to the function of standard swing turnstile, Luxury fast lanes still got merits for high-end artistic appearance, exquisite workmanship, faster passing speed.
 Metro Circular Shape Speed Gate Direction Indicator
The installation position of direction indicator can be adjusted
The pattern of direction indicator can be customized
 Metro Circular Shape Speed Gate Dimension ,Material and Surface Finish
Stainless steel thickness of the cabinet: customized within 1.5-3.0mm
Lane width:900mm is at the maximum, but the lane depth may be changed accordingly.
Material of the cabinet:304/316 grade stainless steel
Material of the swing gate: Tempered glass/organic glass/polycarbonate,and color can be customized
Surface finish of the cabinet:satin finish/polishing/frosted finish/electroplating/backing finish.
 Metro Circular Shape Speed Gate Technical Parameter:
Product Model: CXT-BT118
work-craft Processing: Apply with Laser, bend, weld, polish and etc.
Standard Dimension: L1800mm*W220mm*H1000mm
Weight: per different models
Arm length: 300mm(adjustable)
Lane Width: 650mm(adjustable)
Voltage: AC220±10V,50HZ (notify if you have special requirement)
Motor: Sevo motor
MCBF:12 million times
LED guider: High brightness traffic status indication (Arrow flashing when passing)
Working environment: Indoor and Outdoor
Suitable Temperature: -40℃ ～ 80℃
Suitable humidity: 5%-90%
Emergency measure: Arm drops when power off
Gate opening/closing time: 0.5s-2s (adjustable)
Passing speed: 35-45people/minute
Communication interface: RS485/RS232
CXT turnstile inc dedicates to providing all kinds of middle and high-class Turnstile solutions for Integrators and Distributor worldwide with 12 years history.
