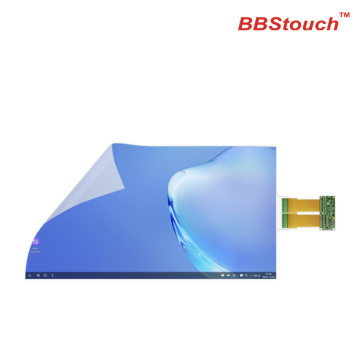

USB Nano Multi Touch Foil 98 Inch
-
$1298.14≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Supply Ability: | 1000000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ISO9001 And ISO14001 |
| HS Code: | 8548900030 |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |

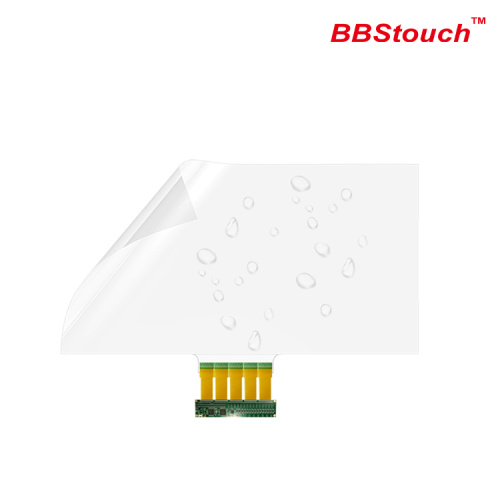

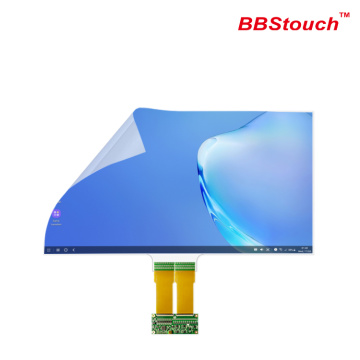

Interactive Touch Foil XTC Series
Our touch foil XTC series has the following features,1.With 376 channels,2.Can object recognition,3.Medium-large size,4.Using FPGA technology. It can removable lmperial or permanent paste.It 's output way for USB,can be called USB interactive multi touch foil,USB capacitive multi touch foil,USB Nano multi touch foil.
Product Overview
The principle of the projective capacitive touch film technology belongs to the projective capacitive screen. It is composed of two transparent thin films, with a grid matrix layer consisting of a layer of metal wires crisscrossed by X and Y axes. Each matrix forms an induction unit that can sense the touch of human hands. The touch signal is transmitted to the circuit control board connected to the touch film, and the control board transmits the signal to the computer, and the computer automatically calculates the touch position to form an effective touch response, thereby achieving the effect of replacing the mouse or even exceeding the mouse (multiple points).
Product Quality
XTC channel number 376, suitable for big sizes, be used in 43-180 inch object recognition field. In order to ensure that the experience of large and medium-sized products reaches the first-class level, XTC has greatly improved the accuracy, speed and signal-to-noise ratio. At the same time, for the differential application of object recognition, XTC not only achieves ultra-high precision, but also achieves the docking with marker through protocol, which is the only one in China.
Product Features

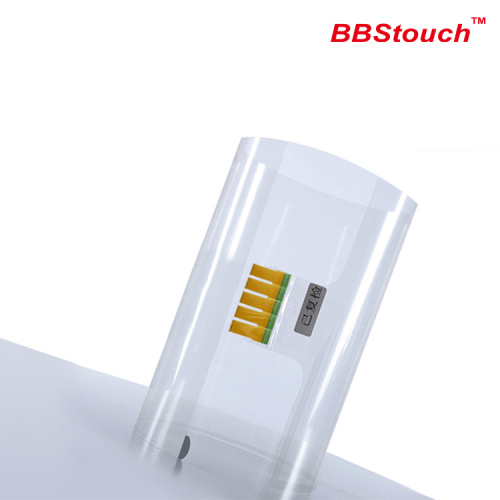

◇ Light weight,can achieve curved surface integrated no frame,pure and beautiful;
◇ 376 channels ,FPGA technology;
◇ Object recognition/medium-large size;
◇ High resolution controller;
◇ Full transparency,transmittance ≥93%;
◇ Full-angle anti-glare llumination,not sensitive to outer light the change of light would not affect.
Product Details
Technical Parameters
| Product Name: | Capacitive Touch Foil 98" | Model: | GT-TF-XTC98 |
| Regular Size: | 43''-180''（XTC Series） | Other Size: | 185"-300" |
| Touch Points: | 40 Points | Deviation: | ≤0.5mm |
| Sensor: | TX : 136(MAX) RX : 240(MAX) | Scanning Speed: | 10ms |
| FPS: | 100 | Power Consumption: | 1W |
| Power Supply: | USB（5V+/-5%DC) | Calibration: | Software Calibration |
| Thickness: | ≤200um | Transmittance: | ＞93% |
| Voltage: | 5V | Transmission: | USB2.0 |
| Transmit Distance: | ≤50m | Safe Distance: | 2mm |
| OperatingnTemperature: | -20℃ ～ 70℃ | Storage Temperature: | -20℃ ～ 80℃ |

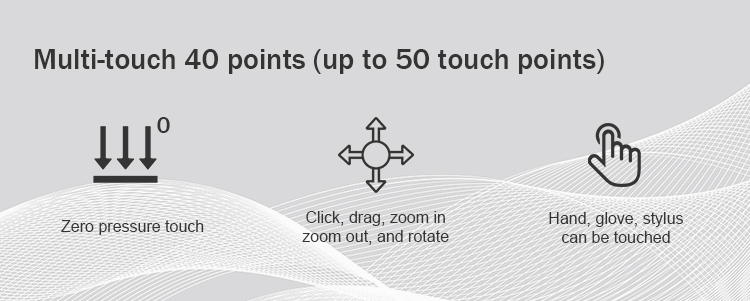

| Touch Gesture: | Click、Drag、Zoom、Rotate | Warranty： | 1 Year |

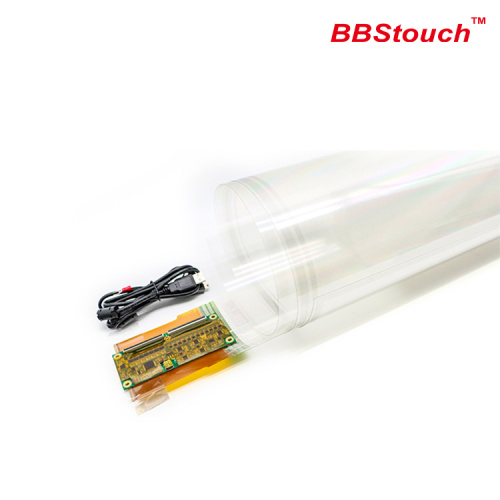

| Ambient Lightness: | Full-angle Anti-glare Illumination | Packing List: | Touch Foil*1 , Controller*1 , USB *1 |
| Support Systems: | Windows，Android，Linux | Certificates: | CE,FCC,RoHS,ISO |

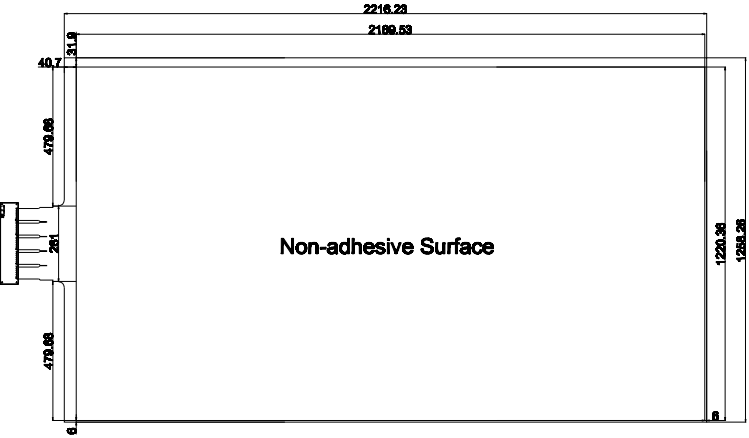

Engineering Drawing:GT-TF-XTC98
Product Customizable
Product Packaging
Product Applications
Other Products
We have our own brand -BBSTouch,already established full-automatic production line ,full-enclosed dust-free plant,and passed ISO 9001 and ISO 14001 system.In addition interactive touch foil, we also supply 4 wire resistive touch screen,5 wire resistive touch screen,capacitive touch screen ,infrared touch screen,infrared touch frame,touch monitor,touch all-in-one PC and other touch products.
