Lcd Led Oled Screen Touch Foil 75"
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Supply Ability: | 1000000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ISO9001 And ISO14001 |
| HS Code: | 8548900030 |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |

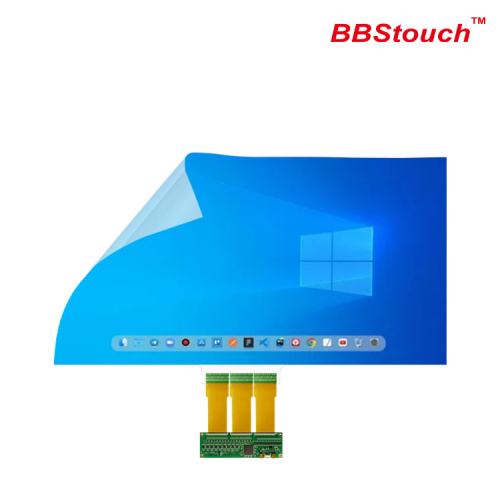

Interactive Touch Foil XTB Series
What kind of our touch foil?It is a touch screen foil,For example ,Lcd screen touch foil,Led screen touch foil ,Oled screen touch foil and so,it can install on the glass screen.It insensitive to external light, changes in light will not affect.It can widely used to shopping mail,Educatio n ,Exhibition ,Hotel,Airport etc .
Product Overview
The principle of projected capacitive touch foil technology belongs to projected capacitive screen. It is composed of two transparent thin films, with a grid matrix layer of X and Y axes crisscrossed by metal wires.Each matrix forms an induction unit that can sense the touch of human hands.The hand's touch signal is transmitted to a microchip controller connected to the nanowires. The microcontroller transmits the signal through an interface to a computer, which recognizes the position of the touch on the screen.
Product Quality
Our interactive touch foil XTB series channel number 222, generally used for 42-110 inches, suitable for early childhood education all-in-one machine, conference board, intelligent blackboard and other fields, these high-frequency use of the scene in addition to the extremely high requirements for stability, writing fluency, response speed, maintainability are valued. XTB series support broken line repair, remote upgrade, strong stability, good writing fluency, fast response, easy maintenance, report rate of 120, is the best choice for this application scenario.
Product Features
◇ Light weight,can achieve curved surface integrated no frame,pure and beautiful;
◇ Repair broken wire automatially,remote upgrade;
◇ High resolution controller;
◇ Full transparency,transmittance ≥93%;
◇ Full-angle anti-glare llumination,not sensitive to outer light the change of light would not affect.
Product Details
Technical Parameters
| Product Name: | Capacitive Touch Foil 75" | Model: | GT-TF-XTB75 |
| Regular Size: | 42''-110''（XTB Series） | Other Size: | 115"-300" |
| Touch Points: | 40 Points | Deviation: | ≤0.5mm |
| Sensor: | TX : 80(MAX) RX : 142(MAX) | Scanning Speed: | 8ms |
| FPS: | 140 | Power Consumption: | 1W |
| Power Supply: | USB（5V+/-5%DC) | Calibration: | Software Calibration |
| Thickness: | ≤200um | Transmittance: | ＞93% |
| Voltage: | 5V | Transmission: | USB2.0 |
| Transmit Distance: | ≤50m | Safe Distance: | 2mm |
| OperatingnTemperature: | -20℃ ～ 70℃ | Storage Temperature: | -20℃ ～ 80℃ |
| Touch Gesture: | Click、Drag、Zoom、Rotate | Warranty： | 1 Year |
| Ambient Lightness: | Full-angle Anti-glare Illumination | Packing List: | Touch Foil*1 , Controller*1 , USB *1 |
| Support Systems: | Windows，Android，Linux | Certificates: | CE,FCC,RoHS,ISO |
Engineering Drawing:GT-TF-XTB75
Product Customizable
Product Packaging
Product Applications
Other Products
We have our own brand -BBSTouch,already established full-automatic production line ,full-enclosed dust-free plant,and passed ISO 9001 and ISO 14001 system.In addition interactive touch foil, we also supply 4 wire resistive touch screen,5 wire resistive touch screen,capacitive touch screen ,infrared touch screen,infrared touch frame,touch monitor,touch all-in-one PC and other touch products.
