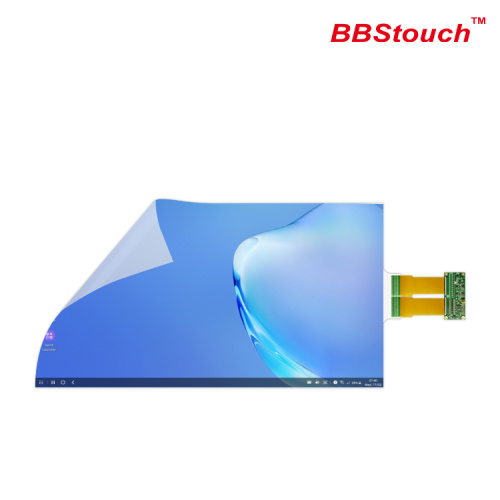

43 Inch Capacitive Touch Foil Nano Foil
-
$104.29≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Supply Ability: | 1000000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | ISO9001 And ISO14001 |
| HS Code: | 8548900030 |
| Transportation: | Ocean,Land,Air |
| Port: | ShenZhen,HongKong |
Interactive Touch Foil XTA Series
We are a top-level company which grasp the technology for capacitive touch foil.capacitive touch foil is also called "touch film", nano touch foil, which is a grid matrix layer composed of two thin films with a layer of X and Y axis interlaced nanowires.It can through the glass or other objects to touch just like gesture.These smart touch foil by customers love and satisfaction.
Product Overview
The principle of projected capacitive touch foil film technology belongs to projected capacitive screen. It is composed of two transparent thin films, with a grid matrix layer of X and Y axes crisscrossed by metal wires.Each matrix forms an induction unit that can sense the touch of human hands.The hand's touch signal is transmitted to a microchip controller connected to the nanowires. The microcontroller transmits the signal through an interface to a computer, which recognizes the position of the touch on the screen.
Product Quality
XTA series channel 152, generally used for 32-65 inches, suitable for touch module, digital signage, outdoor advertising machine, game entertainment, new retail and other application scenarios. These application scenarios generally require stability and easy maintenance.
Touch film XTA series is the first choice. Among them, game and entertainment scenes generally require more points and better waterproofing. XTA can be upgraded to 50 points, and large areas of water can also be touched.Touching without blind area and debugging only 1 minute.
Product Features
◇ Light weight,can achieve curved surface integrated no frame,pure and beautiful;
◇ No dead corner calibrate within 1 minute;
◇ Repair broken wire automatially;
◇ High resolution controller;
◇ Full transparency， transmittance ≥93%;
◇ Strong penetration,glass up to 12mm thick;
◇ Full-angle anti-glare llumination,not sensitive to outer light the change of light would not affect.
Product Details
Technical Parameters
| Product Name: | Capacitive Touch Foil 43" | Model: | GT-TF-XTA43 |
| Regular Size: | 32''-65''（XTA Series） | Other Size: | 70"-300" |
| Touch Points: | 20 Points | Deviation: | ≤0.5mm |
| Sensor: | TX : 56(MAX) RX : 96(MAX) | Scanning Speed: | 8ms |
| FPS: | 120 | Power Consumption: | 1W |
| Power Supply: | USB（5V+/-5%DC) | Calibration: | Software Calibration |
| Thickness: | ≤200um | Transmittance: | ＞93% |
| Voltage: | 5V | Transmission: | USB2.0 |
| Transmit Distance: | ≤50m | Safe Distance: | 2mm |
| OperatingnTemperature: | -20℃ ～ 70℃ | Storage Temperature: | -20℃ ～ 80℃ |
| Touch Gesture: | Click、Drag、Zoom、Rotate | Warranty： | 1 Year |
| Ambient Lightness: | Full-angle Anti-glare Illumination | Packing List: | Touch Foil*1 , Controller*1 , USB *1 |
| Support Systems: | Windows，Android，Linux | Certificates: | CE,FCC,RoHS,ISO |
Engineering Drawing:GT-TF-XTA43
Product Customizable
Product Packaging
Product Applications
Other Products
We have our own brand -BBSTouch,already established full-automatic production line ,full-enclosed dust-free plant,and passed ISO 9001 and ISO 14001 system.In addition interactive touch foil, we also supply 4 wire resistive touch screen,5 wire resistive touch screen,capacitive touch screen ,infrared touch screen,infrared touch frame,touch monitor,touch all-in-one PC and other touch products.
