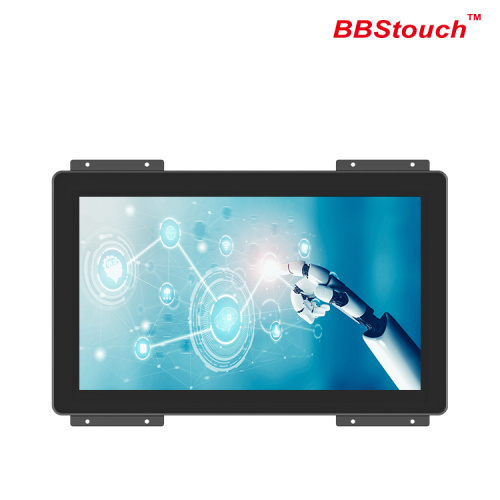

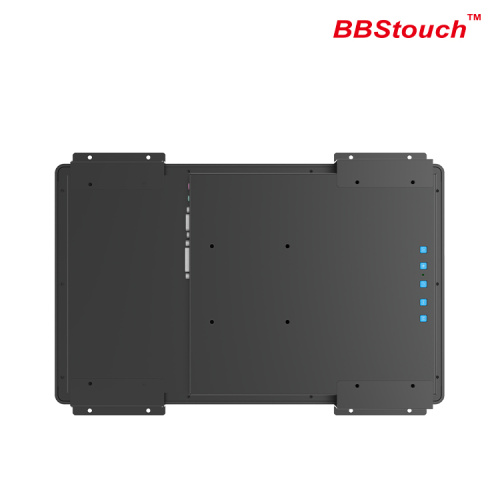

15.6" Open Frame Touch Screen

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen, Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,Paypal,Others
Incoterm:	FOB,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen,Shenzhen

Product Description

Description

Our 3C series open frame touch displays provide excellent multi-point interactive touch solutions for global customers
who need reliable touch products. These multi-functional touch displays (optional 10.1-27 inches) have excellent image
clarity and light transmittance. Our capacitive displays are certified by CE,FCC,RoHS,CCC,CB,UL(power adapter),HDMI,etc.
These industrial-grade displays are dust-proof,dirt-proof and splash-proof. Due to their unique design and performance,
they are used in a variety of high-demand industry applications such as entertainment,medical,service and transportation.

Features

■ 15.6” TFT LCD monitor with resolution 1366 x 768;
■ Projected capacitive touch screen,10-point touch;
■ Pure flat front panel,adopt A+grade original industrial screen;
■ IP65 waterproof and dustproof compliant front panel;
■ The front panel reaches IK06 explosion-proof level;

■ Glass of surface treatment AG,AF,AR(Optional);
■ Embedded,wall-mounted and desktop Installation available.

■ After continuous design and testing to ensure a longer product life;
■ Supports horizontal/vertical display,excellent image clarity and light transmission;
■ Passed electromagnetic compatibility testing and certification,complying with EMC anti-interference standards;

Factory

10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.

Specifications

Display

Size / Panel Type	15.6" Open Frame Touch Screen
Display Size(WHT)	400.1x247.1x43mm
Resolution	1366 x 768
Brightness	400cd/m²
Contrast Ratio	1000 : 1
Response Time	35 ms
Backlight	LED Backlight Unit
Colors	16.7M colors
Viewing Angles	170°/170°

Environment

Operating Temperature	-20°C~+70ºC
Storage Temperature	-25˚C~+70˚C
Operating Humidity	20%~80% RH(Non-Condensing)
Storage Humidity	10%~90% RH(Non-Condensing)
Water and dust protection/Explosion-proof	IP65(front)/IK06(front)

Others

OSD	Menu, Up, Down, Select, Power

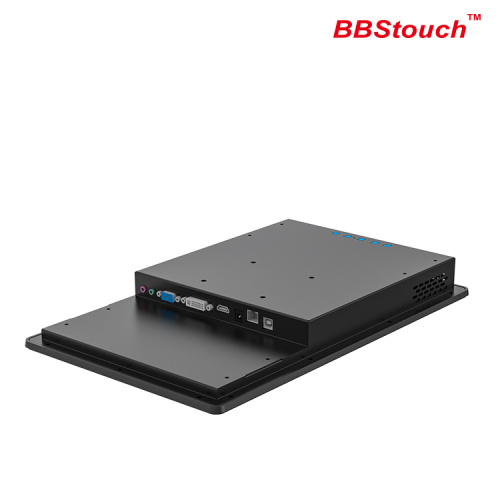

I/O Interface	VGA x 1, HDMI x 1, Power input x 1, DP(optional)
Power Input	DC12V Input
Power Consumption	13.5W
Mounting	75mm VESA mounting
Agency Approvals	CE,FCC,RoHS,CB,CCC
