10.4" Close Frame Industrial Touch Monitor
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- Shenzhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,Paypal,Others |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,Express Delivery |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | Shenzhen,HongKong |
Description
Our 3A series closed frame industrial touch monitors are designed with industrial aesthetics to provide a perfect touch
solution for high-resolution display and multi-touch interactive experience.This model adopts capacitive 10 points touch
technology,it only needs a slight touch to respond.The touch displays （7-65 inches）can be mounted intoembedded
cabinet or can be mounted to an arm,stand,or hung from a surface.They have passed CE,FCC,RoHS,CCC,CB,UL(power
adapter),HDMI certifications,etc.Our industrial-grade high performance and professional design of monitors are better
suited for applications in industries such as retail terminal,information kiosk,self-service,finance,transit, conference,
education and healthcare.
Features
■ Projected capacitive touch screen,10-point touch;
■ Pure flat front panel,adopt A+grade original industrial screen;
■ IP65 waterproof and dustproof compliant front panel;
■ The front panel reaches IK06 explosion-proof level;
■ The visual effect is better under the sun,and the backlight effect is not easy to appear;
■ Good sealing performance,passed EMC anti-interference testing;
■ Optional high brightness 1000 Nit LCD,customization available;
■ Glass of surface treatment AG,AF,AR(Optional);
■ Embedded,wall-mounted and desktop Installation available.
Factory
10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.
Specifications
| Size / Panel Type | 10.4" Close Frame Dustrial Touch Monitor |
| Display Size(W*H*T) | 261.6x208.8x43mm |
| Resolution | 1024 x 768 |
| Brightness | 400cd/m² (Option: 1000cd/m²) |
| Contrast Ratio | 1000 : 1 |
| Response Time | 25 ms |
| Backlight | LED Backlight Unit |
| Colors | 16.7M colors |
| Viewing Angles | 160°/160° |
| Operating Temperature | -10°C~+60ºC |
| Storage Temperature | -20˚C~+70˚C |
| Operating Humidity | 20%~80% RH(Non-Condensing) |
| Storage Humidity |
10%~90% RH(Non-Condensing) |
| Water and dust protection/Explosion-proof | IP65(front)/IK06(front) |
Others
| OSD | Menu, Up, Down, Select, Power |

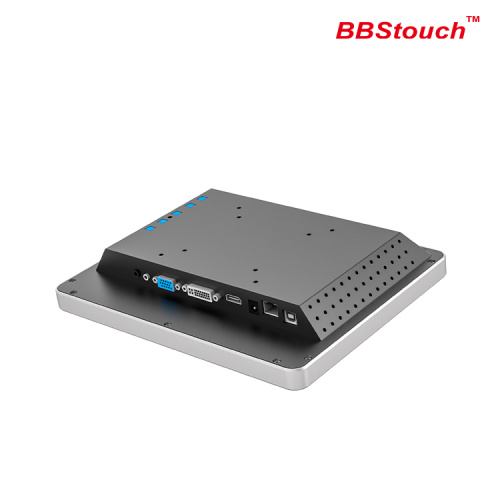

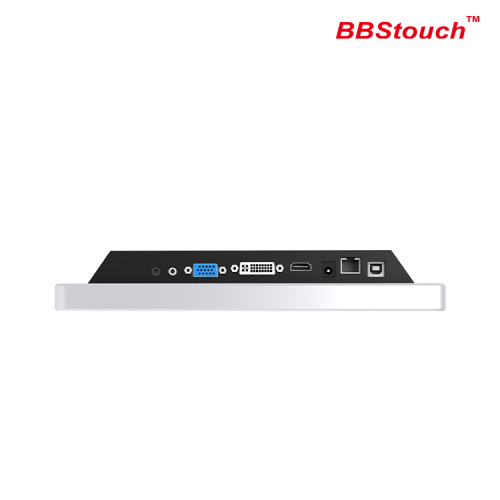

| I/O Interface | VGA x 1, HDMI x 1, Power input x 1, DP(optional) |
| Power Input | DC12V Input |
| Power Consumption | 13.5W |
| Mounting | 100mm or 75mm VESA mounting |
| Agency Approvals | CE,FCC,RoHS,CB,CCC |
