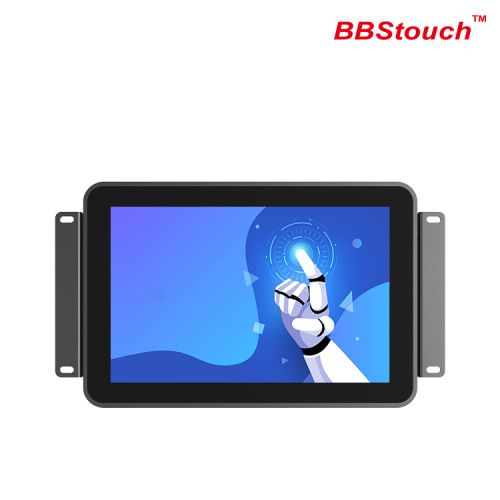

10.1" High Brightness Touch Screen Monitor
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- Shenzhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,Paypal,Others |
|---|---|
| Incoterm: | FOB,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | Shenzhen,HongKong |
Description
The high brightness readable monitors enable users to see clear,sharp video images even in direct sunlight with a bright
screen. Our high brightness touch displays produce 1,000 nits brightness. Some go up to 2,000 nits of brightness. This
makes them far brighter than standard LCD monitors. These 10.1” to 23.8” high brightness touch monitor there are 2
built-in low-frequency turbo fans to improve the cooling effect.They suitable for indoor and outdoor information query,
selfservice, and industrial automation applications.
Features

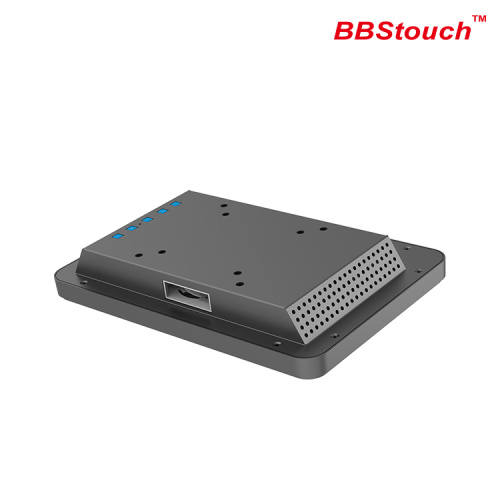

■ 1000 cd/m² high brightness,strong backlight for bright environments;■ Built-in 2 cooling fans, active circulation heat dissipation;
■ Pure flat front,capacitive 10-point touch;
■ Front panel IP65 waterproof and dustproof ,IK08 explosion-proof;
■ Wide temperature:operating:-20℃~70℃; storage: -30℃~ 80℃;

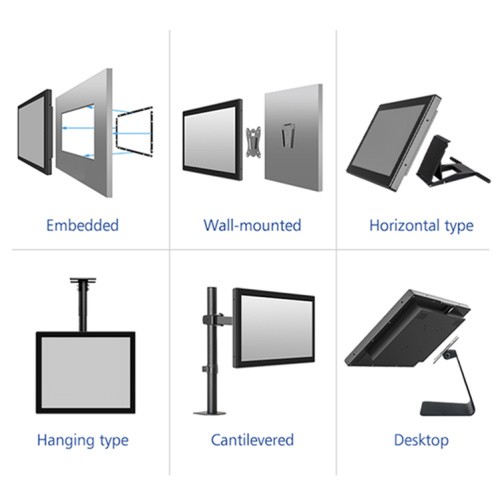

■ Embedded,wall-mounted and desktop installation available;
■ Customized solutions are also possible on a project basis.
Factory
10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.
Specifications
| Size / Panel Type | 10.1” High Brightness Touch Screen Monitor |
| Display Size(W*H*T) | 265 x 180 x 43.5mm |
| Resolution | 1280 x 800 |
| Brightness | 1000cd/m² |
| Contrast Ratio | 900 : 1 |
| Response Time | 30 ms |
| Backlight | LED Backlight Unit |
| Colors | 16.7M colors |
| Viewing Angles | 170°/170° |
| Operating Temperature | -20°C~+70ºC |
| Storage Temperature | -30˚C~+80˚C |
| Operating Humidity | 20%~80% RH(Non-Condensing) |
| Storage Humidity |
10%~90% RH(Non-Condensing) |
| Water and dust protection/Explosion-proof | IP65(front)/IK08(front) |
Others
| OSD | Menu, Up, Down, Select, Power |

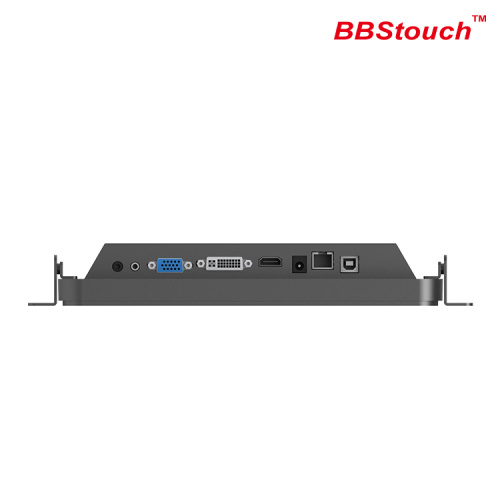

| I/O Interface | VGA x 1, HDMI x 1, Power input x 1 |
| Power Input | DC12V Input |
| Power Consumption | 13.5W |
| Mounting | 100mm or 75mm VESA mounting |
| Agency Approvals | CE,FCC,RoHS,CB,CCC |
Customization
Applications
Related Keywords
