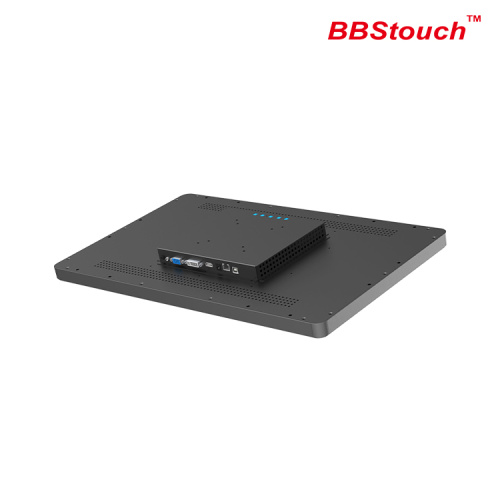

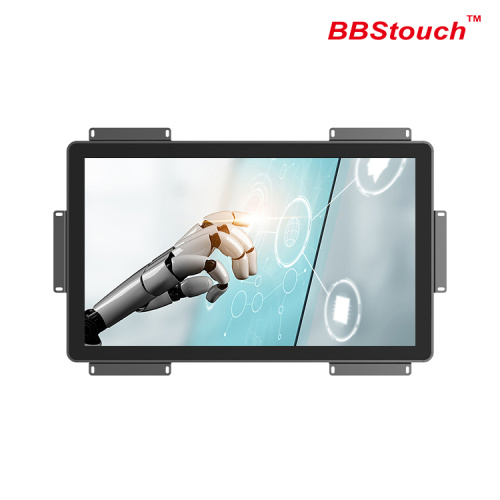

23.6" Open Frame Industrial Touch Monitor
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- Shenzhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,Paypal,Others |
|---|---|
| Incoterm: | FOB,CIF,EXW,CIP,CFR,FAS,FCA,CPT,DDP,Express Delivery |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | Shenzhen,HongKong |
Description
Our 2C series industrial touch screen monitor delivers an perfect solution that is cost-effective for worldwide customers
requiring a reliable touch product.These versatile touch displays(optional 7-55 inches)that can be mounted intoembedded
cabinet or it can be mounted to an arm,stand,or hung from a surface.Our capacitive monitors havepassed CE,FCC,RoHS,
CCC,CB,UL(power adapter),HDMI certifications,etc.These industrial-grade high performance and professional design of
monitors are better suited for applications in industries such as retail terminal,information kiosk,selfservice,finance,
transit,conference,education and healthcare.
Features
■ Projected capacitive touchscreen,10-point touch;
■ Pure flat front panel,adopt A+grade original industrial screen;
■ IP65 waterproof and dustproof compliant front panel;
■ The front panel reaches IK08 explosion-proof level;
■ Good sealing performance,passed EMC anti-interference testing;
■ Optional high brightness 1000 Nit LCD,customization available;
■ Glass of surface treatment AG,AF,AR(Optional);

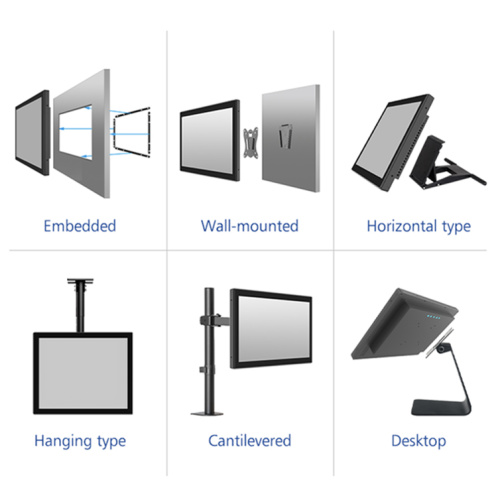

■ Embedded,wall-mounted and desktop installation available.
Factory
10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.
Specifications
| Size / Panel Type | 23.6” TFT LCD Touch Monitor |
| Display Size(W*H*T) | 581.8 x 350.8 x 60mm |
| Resolution | 1920 x 1080 |
| Brightness | 250cd/m² (Option: 1000cd/m²) |
| Contrast Ratio | 1000 : 1 |
| Response Time | 10 ms |
| Backlight | LED Backlight Unit |
| Colors | 16.7M colors |
| Viewing Angles | 178°/178° |
| Operating Temperature | 0°C~+50ºC |
| Storage Temperature | -20˚C~+60˚C |
| Operating Humidity | 20%~80% RH(Non-Condensing) |
| Storage Humidity |
10%~90% RH(Non-Condensing) |
| Water and dust protection/Explosion-proof | IP65(front)/IK08(front) |
Others
| OSD | Menu, Up, Down, Select, Power |

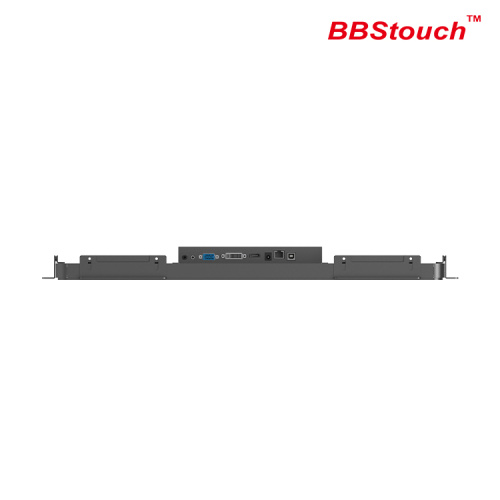

| I/O Interface | VGA x 1, HDMI x 1, Power input x 1, DP(optional) |
| Power Input | DC12V Input |
| Power Consumption | 13.5W |
| Mounting | VESA Mount 75x75mm or 100x100mm |
| Agency Approvals | CE,FCC,RoHS,CB,CCC |
