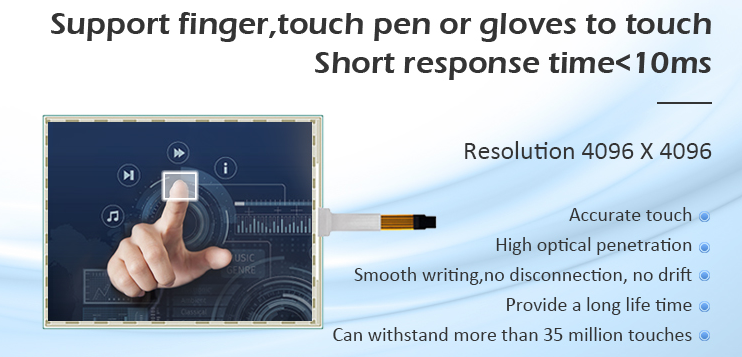

5 Wire Resistive Touch Screen
We apecialize in 5 wire touch screen panel since it established. Our resistive screens range in 7.0 inch to 22 inch.Believe that so multi size can meet your needs.The touch screen come with a controller and support usb or RS232 interface.It working with GPS touch screen,POS touch screen,car touch screen,coffee table touch screen and so .
Product Overview
Our touchscreen is based on proven 5-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance.The screens work with standard EETI/ controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs.
Our resistive touchscreens are available with proprietary technology to deliver a touch response that is drift-free and accurate in high-use applications. It's designed to be integrated into almost any bezeled application for reliability and quality.We delivers both X and Y measurements made on a stable rear glass layer where many other resistive touchscreen designs use a flexing plastic coversheet to measure only one axis. As a result, Our 5 wire touch screen provide a longer product life, designed to withstand more than 5 million touches.
Product Features
♦ 5-wire resistive touch, technologically mature, and can be used with gloves in harsh environments.
♦ Can meet the pencil hardness 3H per ASTM D3363.
♦ Use mist hard coating & anti-Newton rings.
Product Details
Product Parameters
| Product Name: | 12.1" Resistive Touch Screen | P/N： | 5W-12.1A-1 |
| Outline Size： | 266 X 203（mm） | View Area： | 254 X 191（mm） |
| Ratio: | 4:3 | Resolution： | 4096 X 4096 |
| Available Size: | 7"-22" | Touch Point: | Single Point |
| Structure: | ITO Film+ ITO Glass | Thickness: | 2.3 mm |
| Chip Solution: | EETI | Interface： | USB 2.0 |
| Surface Hardness: | 3H | Touch Durability: | 5 Million Touches |
| Operational Voltage: | 2.5V to 5V DC | Operation Temperature: | -20°C-50°C |
| Humidity: | 90% RH, Noncondensing | Storage Temperature: | -40°C-75°C |
| Warranty: | 1 Year | Product Certified: | CE,FCC,RoHS |
| Customizable | Support | Operation Systems: | Windows，Android，Linux |
Engineering Drawing:GT-5W-12.1A-1
Other Show
Product Applications
Point-of-sale (POS) terminals,voting, ticket and lottery terminals,industrial automation,industrial panel PC,iedical equipment,office automation,retail automation,pharmacy automation.
Other Products
We focus on touch application since established.Our products widely acclaimed from the indoor or outdoor customer because of our top quality products.In addition 4 wire resistive touch screen, we also supply 5 wire resistive touch screen,capacitive touch screen ,infrared touch screen,interactive touch foil,touch monitor,touch all-in-one PC and other touch products.
