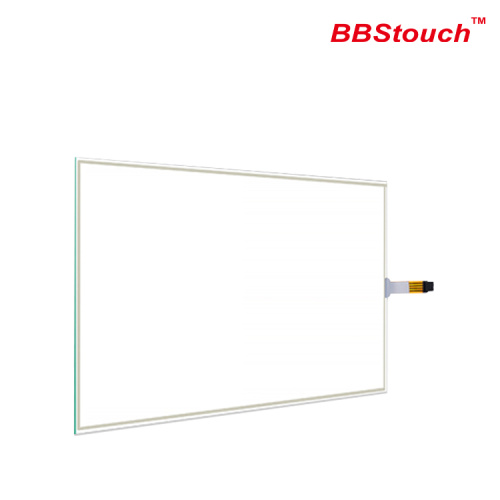

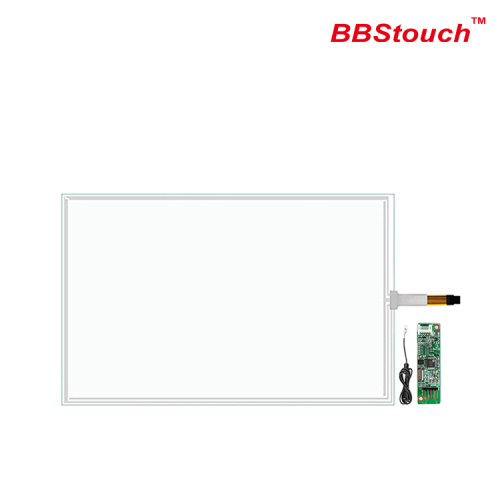

4 Wire Resistive Touch Screen
Pruduct Overview
Our touch screens are based on proven 4-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. The 4 wire resistive touch screen work with standard EETI controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs.
Product Quality
Our resistive touch screens are available with proprietary technology to deliver a touch response that is drift-free and accurate in high-use applications. It's designed to be integrated into almost any bezeled application foreliability andquality. delivers both X and Y measurements made on a stable rear glass layer where many other resistance touch screen designs use a flexing plastic coversheet to measure only one axis. As a result, the resistive touchscreen provide a longer product life, designed to withstand more than 5 million touches.
Our touch screen panel can be sealed against contamination to support NEMA 4/4x/12 and IP65 standards. Each 4 wire touch screen panel meets pencil hardness 3H per ASTM D3363. Agency approvals include CE ,FCC and RoHs class A.
Product Features
♦ 4-wire resistive touch, technologically mature, and can be used with gloves in harsh environments.
♦ Products precision, and robustness ,extremely durable.
♦ Can be sealed against contamination,support NEMA 4/4x/12 and IP65 standards.
♦ Can meet the pencil hardness 3H per ASTM D3363.
♦ Class 1,000 clean,fast delivery,high quality. (Air Bonding / OCR Bonding)
Product Details
Product Parameters
| Product Name: | 22" Resistive Touch Screen | P/N： | GT-4W-22.0 |
| Outline Size： | 488 X 310（mm） | View Area： | 269 X 294（mm） |
| Ratio: | 16：9 | Resolution： | 4096 X 4096 |
| Available Size: | 2.7"-22" | Touch Point: | Single Point |
| Structure: | ITO Film+ ITO Glass,ITO Film+ITO Film | Thickness: | 2.3 mm |

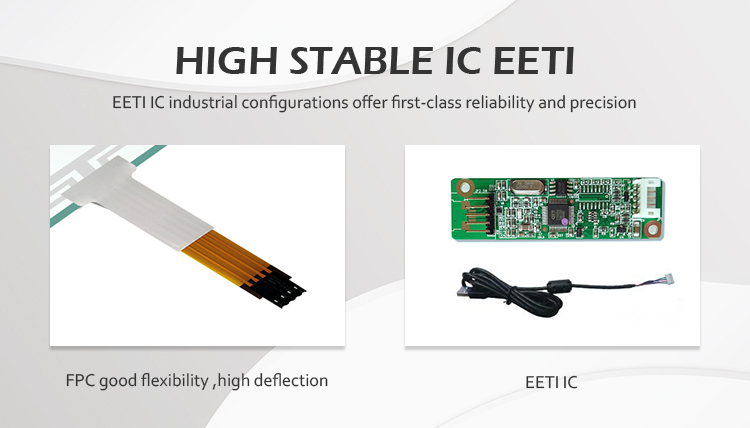

| Chip Solution: | EETI | Interface： | USB 2.0 |
| Surface Hardness: | 3H | Touch Durability: | 5 Million Touches |
| Operational Voltage: | 2.5V to 5V DC | Operation Temperature: | -20°C-50°C |
| Humidity: | 90% RH, Noncondensing | Storage Temperature: | -40°C-75°C |
| Warranty: | 1 Year | Product Certified: | CE,FCC,RoHS |
| Customizable | Support | Operation Systems: | Windows，Android，Linux |
Engineering Drawing:GT-4W-22
Production Show
Product Customizable
Provides a wide range of customization options to meet your requirements, including screen size, FPC outlet location, length, ITO glass thickness, LOGO and matte anti-Newton ring, bright surface treatment such as anti-newton ring.
Product Applications
Point-of-sale (POS) terminals,voting, ticket and lottery terminals,industrial automation,industrial panel PC,iedical equipment,office automation,retail automation,pharmacy automation.
Other Products
We focus on touch application since established.Our products widely acclaimed from the indoor or outdoor customer because of our top quality products.In addition 4 wire resistive touch screen, we also supply 5 wire resistive touch screen,capacitive touch screen ,infrared touch screen,interactive touch foil,touch monitor,touch all-in-one PC and other touch products.
