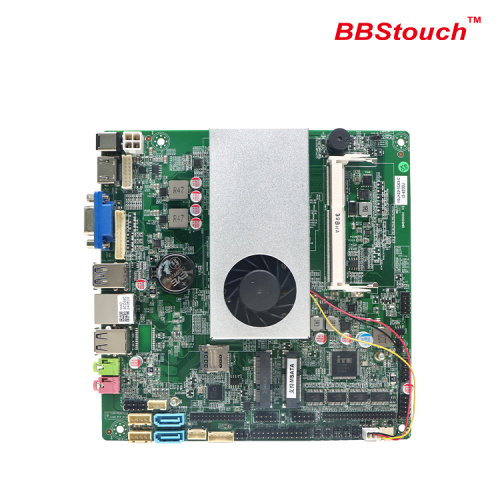

QM9400H-UA Motherboard(Intel UHD Graphics)
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- Shenzhen, HongKong
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,Paypal,Others |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,Express Delivery |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | Shenzhen,HongKong |
Description
The 9400H-UA motherboard uses Intel Haswell fourth-generation processor processor,equipped with Windows system,and
HDMI output supports 4k display.The 4th generation integrated Intel® HD4400 graphics controller supports single display,
dual display/triple display replication,dual display/triple display expansion,and single display under DOS.It integrates LVDS/
EDP/Ethernet/HDMI/WIFI/Bluetooth functions and supports PCI-E 3G/4G modules. It is simple,slim and outstanding.Mainly
used in finance,retail,medical,all-in-one machines,advertising machines,industrial computers and other fields,it is your best
choice for human-computer interaction and industrial control projects.
Features
■ High integration: simplified overall machine design,with fan for active cooling;■ High stability: In terms of hardware and software, self-developed technology is added to ensure product stability;
■ Rich expansion interfaces: 4 USB interfaces (2*USB3.0,2*USB2.0),COM1 serial port supports RS232 by default,
COM2 serial port supports RS232/RS422/RS485 (optional);
■ High definition: supports up to 4096×2160 decoding and various LVDS/EDP interface LCD displays;
■ Complete functions: Supports horizontal and vertical screens, timer switch,USB data import and other functions;
■ Easy to manage: Humanized backend management software to facilitate advertising playback management and control.
Factory
10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.
Specifications
| Product Name | QM9400H,QM9500H |
| CPU Graphics | Haswell-U,Broadwell-U |
| Memory | 1*NB-DDR3 SODIMM memory slot,support 1600MHz memory,maximum support 8GB |
| Display Function | Supports single display,dual display/triple display copy and expansion,single display under DOS |
| Ethernet | 1*RJ45 LAN port:RTL8111E or Intel i211 gigabit network card chip |
| Ethernet | 1*Mini-PCIE port:Support WIFI/3G/4G/GPS/Bluetooth module, etc |
| Hard Disk Function | Support MSATA disk,Standard SATA3.0 hard disk interface,maximum transfer speed 6.0 Gbps |
| Sound Function | Integrated Cmedia HS-100B high-fidelity USB audio chip |
| USB Function | 2*USB3.0 port,2*USB2.0 port |
| Operating System |
Support Windows 10,Windows 8,Windows 7,Linux,etc |
Interfaces
