Waterproof infrared touch screen 15"

Get Latest Price

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air, Express, Others

Port:: Shenzhen, HongKong

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,Paypal,Others
Incoterm:	FOB,Express Delivery,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DEQ,DDU
Transportation:	Ocean,Land,Air,Express,Others
Port:	Shenzhen,HongKong

Product Description

Description

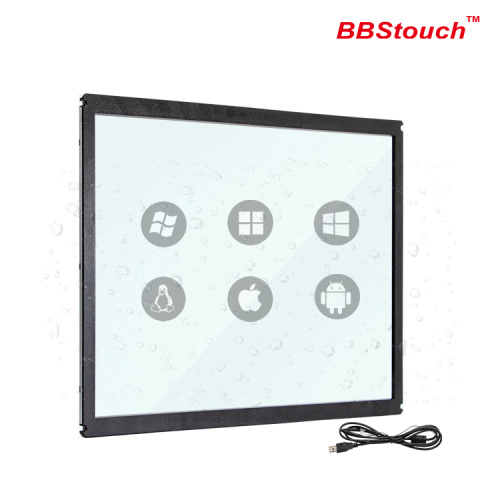

GreenTouch's TE series waterproof infrared touch screens are combined with liquid crystal displays (LCD) for touch solutions
that require reliability and input flexibility, which helps simplify your supply chain and assembly methods. TE waterproof

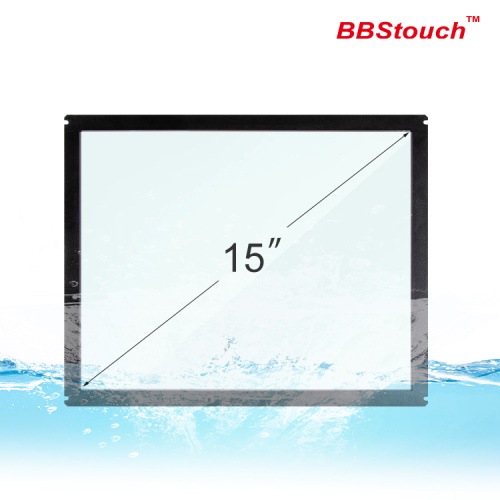

infrared touch frames come in a variety of sizes (15-21.5 inches), and provide customized services from 7-32 inches. The
touch screen is dust-proof, anti-fouling and splash-proof. The touch function still operates stably in harsh environments,
and has excellent clarity and strong EMC performance. This product is widely used in outdoor waterproof equipment such
as self-service vending machines, outdoor smart charging piles, outdoor advertising all-in-one machines, outdoor inquiry
machines, self-service express cabinets, etc.

Features

☆ 1.0mm high-precision writing, 10-point infrared touch, quick response without drift, continuous touch, or jump;
☆ Reach IP65 waterproof and dustproof level, can be used in outdoor environments and complex industrial environments;
☆ According to EN 6100-4-2 2008: Level 3 test, in line with Level 3 anti-static standards;
☆ All-angle light resistance, light resistance up to 8000Lux, can operate touch function normally under strong light;
☆ Explosion-proof full tempered glass cover, easy to deal with violent impact, can well protect LCD devices;
☆ Can operate normally at -15℃~55℃ temperature and 10%~90%RH (no condensation) humidity;

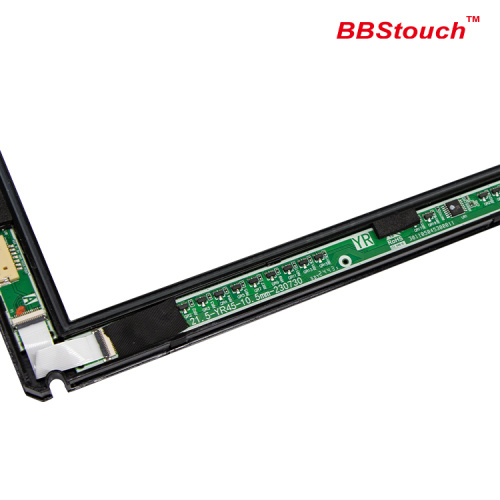

☆ LED infrared transmitting and receiving tubes, individual LED tubes do not work and do not affect the use effect
☆ USB2.0+UATR interface plug and play, support API (software interface), transmission speed 480mbps

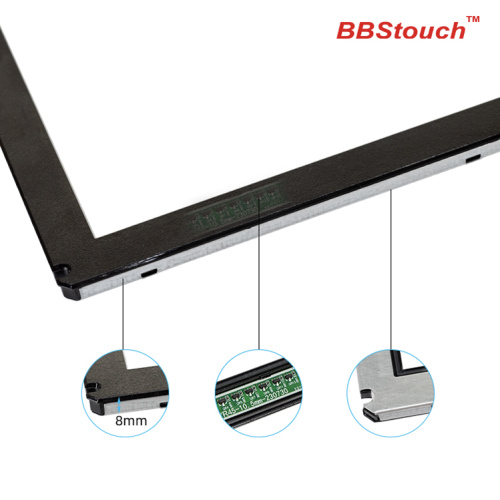

☆ One-piece injection molding light-transmitting frame + waterproof glue + mechanized glass bonding process structure,
ultra-narrow frame thickness of only 8mm;

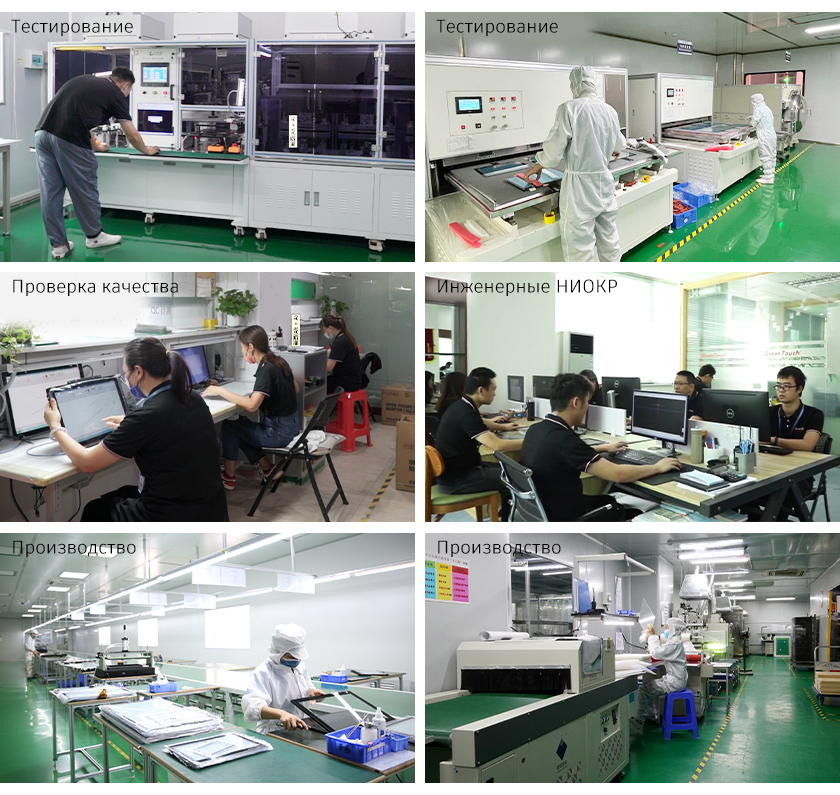

Factory

10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.

Specifications

Display

Size / Panel Type	Waterproof infrared touch screen TE Series
Regular Size	15" to 21.5"
Touch Points	10 Points
Touch Pressure	Zero
Material	Injection molding frame+Tempered Glass
Transparency	＞92%
Input Method	Finger,Pen Stylus
Touch Resolution	32768*32768
Response Speed	<10ms
Touch Object	>7mm
Interface	USB2.0+UATR,plug an play
Transmission Speed	480Mbps
Operational Voltage	DC+5V±5%
Insulation Impedance	<200mA
Temperature	(Operation)-15℃ -55℃;(Storage)-40℃ -70℃
Humidity	90% RH,Noncondensing
Sunlight-proof	Support
About Noies	No Noies
Durability	Unlimited Touches
Support Systems	Windows,Android,Linux,Mac
Certificates	CE,FCC,RoHS
