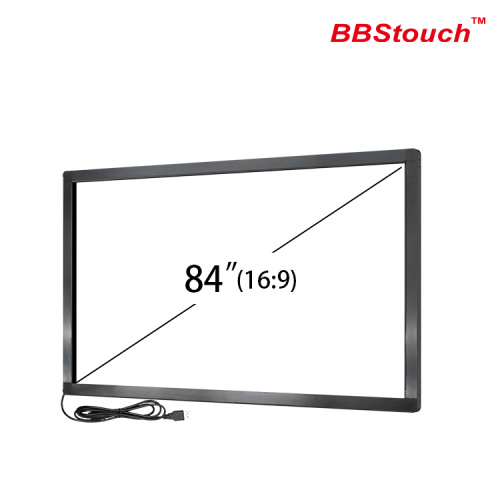

84 Inch Touch Screen Tv Muilt Infrared Frame
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- ShenZhen, HongKong
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Productivity: | 1000000 |
Supply Ability: | 1000000 |
Payment Type: | L/C,T/T,Paypal,Western Union |
Incoterm: | FOB,CIF,EXW |
Certificate: | ISO9001 And ISO14001 |
HS Code: | 8548900030 |
Transportation: | Ocean,Land,Air |
Port: | ShenZhen,HongKong |
Infrared Touch Frame F Series
IR touch screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. Our IR frame is 20 points infrared muilt touch screen frame,USB connection, plug and play, simple operation.you can use the infrared touch screen projection technology to convert your TV into touch screen tv easily.
Product Overview
Our F series touch frame instantly turns LCD/PLASMA/front/rear projection monitor into interactive display. The original image quality is preserved because there is no film in front of the display. After a simple installation, the frame can be operated with either a finger, with or without glove or a pen. Features like high reliability, no drift, scratch proof together with high performance multi-touch support present the ir touch frame an ideal choice for interactive presentation for business, government and classrooms, command centers, large screen digital signage for public venue kiosks, info center directory, and many other interactive applications.
The company has passed the ISO9001 quality system and ISO140001 environmental system certification. The products are assembled in a class 1000 dust-free workshop. During the production process, they pass the 24-hour aging and 100% IQC, OQC testing to ensure product quality.
Product Description
Product Parameteres
Product Name: | Infrared touch frame 84" | Type: | GT-IR-F84 |
Regular Size: | 32"-98" | Custom Size: | 100"-500" |
Bezel Material: | Aluminium Alloy | Touch Resolution: | 32767x32767 |
Touch Points: | 20 Points | Touch Object: | >5mm In Diameter, IR Opaque |
Input Method: | Finger,Touch Pen | Transparency: | 100% |
Response Speed: | ≤8ms | Operating Voltage: | DC 5V ±5% |
Operating Current: | <200mA | About Noises: | No Noises |
Interface: | USB,Plug And Play | Touch Durability: | Unlimited |
Operating Temperature: | –10°C to 50°C | Storage Temperature: | Storage: –20°C to 60°C |
Operating Humidity: | 10 to 85% | Storage Humidity: | 10 to 90% |
Anti-light Interference: | >80000 Lux | Certificates: | CE,FCC,RoHS |

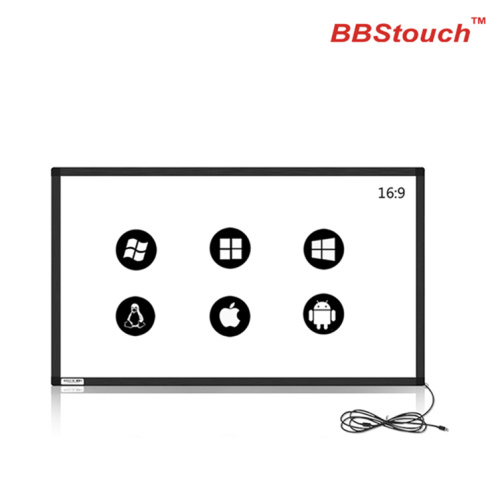

Warranty: | 1 Year | Operation Systems: | Windows,Android,Linux,Mac,3M |
Engineering Drawing:GT-IR-F84
Product Installation
Our ir touch frame is simple operation, you just need to find the corresponding corner according to assemble user manual, put the four frame parts A+A,B+B,C+C,D+D neatly into a full frame,connect the pin and lock the screws,after the installation is complete,plug in the USB,please wait for 10 seconds fo rthe touch test (during testing, pay attention to laying flat).
Product Packaging
1-2 pieces IR touch frames are packed in a carboard tube.3-20 pieces IR touch frames are packed in a carton.An infrared touch frame installation guide is included with each package to make the installation of the client a breeze.
Product Customizable
We can provide you with product customization, like the touch frame size and customer Logo,but you need to pay for the mold cost of the sample and the number of MOQ1K orders.
Production Show
Other Products
We have our own brand -BBSTouch,already established full-automatic production line and professional sales&after-sales team.In addition infrared touch Frame,we also supply 4 wire resistive touch screen, 5 wire resistive touch screen,capacitive touch screen, interactive touch foil,touch monitor,touch all-in-one PC and other touch products.
