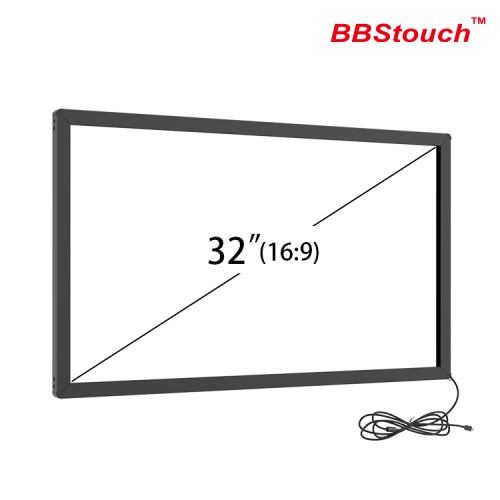

Infrared Touch Frame TB Series
Infrared touch Frame is an electronic device that detects and locates a person's touch gestures using a dense infrared matrix in the X and Y directions.The infrared touch screen installs a circuit board outer frame in front of the display, and the circuit board arranges the infrared transmitting tube and infrared receiving tube on the four sides of the screen, one by one forming the infrared matrix of cross and cross, as shown in the schematic diagram.GreenTouch supply the smart infrared touch frame，no drifting infrared touch frame. This 32 inch infrared touch frame is very common and popular,if you are interested in it,we are your best choice.
Product Overview
Our IR touch screen is a high-end ,multi-point infrared touch screen technology with perfect combination of tradition and innovation,Our touch screen has the features of fast reaction speed, strong anti-environment light ability, good stability and easy integration;With the function of plug and play and without driver, any non-transparent object can change the infrared light and realize the touch operation which is convenient for people to operate and use the digital life and brings the greatest convenience and interactivity to life.
The company has passed the ISO9001 quality system and ISO14001 environmental system certification. The products are assembled in a class 1000 dust-free workshop. During the production process, they pass the 24-hour aging and 100% IQC, OQC testing to ensure product quality.
Product Details
Product Advantages
◇ Ultra-thin, ultra-narrow design, no matter whether it is external or built-in.
◇ Infrared sensing principle, simple finishing, LED die, stable performance, high touch precision and long life.
◇ The unique installation method makes the installation of the client a breeze.
◇ The surface of the aluminum alloy is sprayed and oxidized, and the whole is delicate, simple, generous and multi-touch.
◇ Simple operation, USB connection, plug and play.
| Product Name: | Infrared Touch Frame TB Series | Sizes: | 27'' to 98'' |
| Material： | Aluminium Frame | Transparency: | 100% |
| Touch Resolution: | 32767*32767 | Input Method: | Finger or Touch Pen |
| Touch Object: | >5mm In Diameter, IR Opaque | Response Speed: | 10ms |
| Touch Points: | 20-point | Operating Voltage: | DC 5V ±5% |
| Touch Refresh Rate: | ≥110Hz | Operating Current: | <200mA |
| LED Lifetime: | 60000 hours | Interface: | USB，Plug And Play |
| Working Temperature: | -10℃~50℃ | Storage Temperature: | -20℃~60℃ |
| Warranty: | 1 Year | Certificates: | CE, FCC,RoHS |
| Interface: | Socket Type USB Cable 1.5 Meters, Socket Type 5P | ||
| Fault-tolerant: | 10% Non-consecutive Sensors Are Damaged | ||
| Humidity: | Up to 90% RH from 0℃ to +40℃，No-condensing | ||
| ESD: | EN 6100-4-2 2008:3 level.4KV contact discharge and 8KV air discharge | ||
| Operation System: | Windows / Linux / Android /Mac/3M | ||
Engineering Drawing ：32 inch,GT-IR-TB32
Other Products
We have our own brand -BBSTouch,already established full-automatic production line and professional sales&after-sales team.In addition infrared touch Frame,we also supply 4 wire resistive touch screen, 5 wire resistive touch screen,capacitive touch screen,interactive touch foil,touch monitor,touch all-in-one PC and other touch products.
