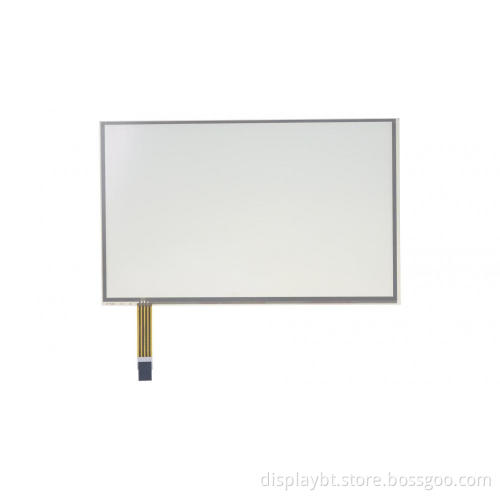

4 -wire 10.3-inch 2-Layer industrial control panel Analog Resistive Touch screen
Your message must be between 20 to 2000 characters
Contact Now
4 -wire 10.3-inch 2-Layer industrial control panel Analog Resistive Touch screen
Please pay a visit to the VR tour of our production department.
https://displaybt.com/vr/
https://displaybt.com/VR/Touch-Screen-Silk-Printing-Workshop-VR-Tour/
| Interface Type: | USB or RS232 |
| Resolution | 4096x4096 |
| Screen Ratio | 16:10 |
| Material | ITO Glass + ITO Film |
| Certificates | CE, FCC, RoHS |
| Input method | Finger or touch pen |
| Position accuracy | 1.15~2.5mm |
| Operating Voltage | DC ≤ 10V |
| Operating current | 5~25mA |
| Response time | Less than 10ms |
| Touch action force | 20~100g |
| Operating temperature | -10°C~60°C |
| Storage temperature | -20°C~70°C |
| Surface hardness | 3H |
| Working environment | Under sunlight, indoor and outdoor |
| Transparency | ≥80% |
| Isolation resistance | ≥20MΩ DC 25V |
| X.Y resistance | 100Ω~1000Ω according to the size |
| Linearity | ≤1.5% |
| The number of hits | ≥1,000,000/point |
| Warranty | 1 year |
| Support Systems | Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac |
DISPLAYBLY (SZ) TECHNOLOGY CO., LIMITED was established in 2003 in Shenzhen, China. The group has integrated with R&D, production, marketing opto-electronics products and display devices. Our company has obtained TUV entity factory certificaties and implemented the ISO quality system management. Our products past ROHS, CE, REACH, UL certificates and so on. Our civil business partners are excellent companies in their industries and Chinese listed companies. Our international partners are all over the world, particularly in Japan, Europe and Middle East countries. We are capable of supplying LED backlight series products, LED series products, LCD series products and touch panel series products for long term productive relationships.
