SMT Offline AOI optical inspection equipment

Product Feature:

√Strong inspection of fuzzy features, easy and quick programming

√Intelligent parameter adjustment

√Easy installation across production line

Product Core Technology:

√Intelligent parameter adjustment

Auto identify components to match inspection algorithm, Intelligent adjustment of parameters to speed up programming.

√AI training tool

Model self-training for special components, reduce false positive rate by continuous learning to improve inspection accuracy.

√Support both online/offline programming

Online/remote offline programming, without stopping the production line.

√Support Mixed PCB inspection

Support mixed PCB and mutil-in-1 board inspection by AI positioning algorithm

√Centralized management by remote control

Centralized management of multiple production lines, remote control to save maintenance costs.

√SPC data analysis

Recording bad data in multiple aspects to provide objective basis for process improvement

Product Software:

Operating system : Ubuntu 18.04 LTS 64bit

Function : Remote control, Remote assistance, CAD file import and user-defined model training

Data output: Auto generated statistic analysis SPC

Special function: Automatic search of elements and quick programming

Product Hardware:

CPU：intel i5

Display card：Nvidia GTX1050Ti

Memory：16G DDR4 ，256G SSD+2T HDD

Network：1000M Wired Network Card

Display： 23.8 inch FHD display

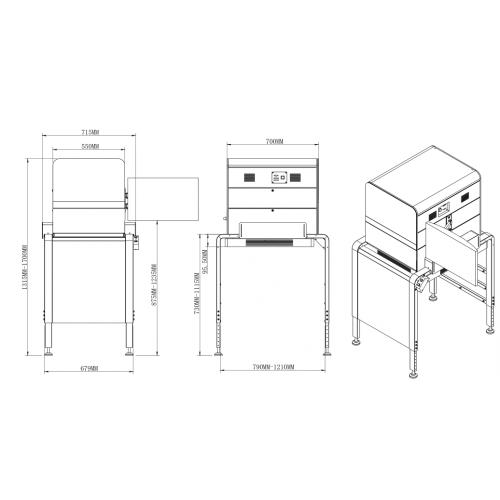

Product Structure Diagram:

Product Advantage:

Inspection-related

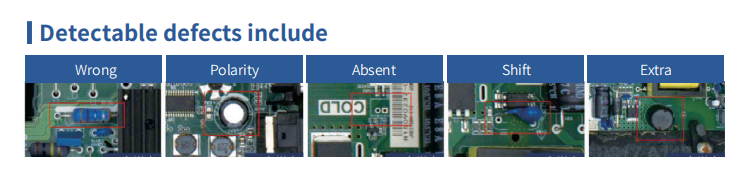

Components: Absent, Reversed, Misalignment, Broken, Extra, Foreign material, Stained, etc.

Other function: NG tracking bar, Control box, Mixed material inspection, Parameter broadcast, Panel inspection, Statistical information system, Voice announcement.

Mixing boards inspection: Support mixed board production and calling program automatically

Algorithm: Automatic search of elements and quick programming
