Automatic Optical Inspection System Online Aoi Machine

Product Feature:

√One-click programming for higher efficiency

√Low false positive rate by AI method

√Multi-apply to benefit different assessment

Product Core Function:

√AI intelligent programming

Automatically select solder joints and set parameters without importing CAD, Gerber and other files

√Support Mixed model and panel inspection

Auto recognize nixed model and panel inspection by AI positioning algorithm

√Support both online/offline programming

On line programming to save line down time

√AI model training

Model self-training for special components, reduce false positive rate

√Multi-function

Multi-purpose, inspect component defects of SMD, THT, solder joint

√Bar code reading

Auto reading of codes (such as code 128, QR codes, Data matrix), original board data is traceable

√Centralized management by remote control

Centralized management of multiple production lines, remote control to save maintenance costs

√SPC data analysis

Real-time data recording and analysis, providing evidence for process improvement, and real-time trace data

Product Software:

² Operating system: Ubuntu 18.04 LTS 64bit

² Function: Remote control, Remote assistance, CAD file import and user-defined model training

² Communication method: Standard SMEMA

² Data output: Auto generated statistic analysis SPC

² Special function: Automatic search of elements and quick programming

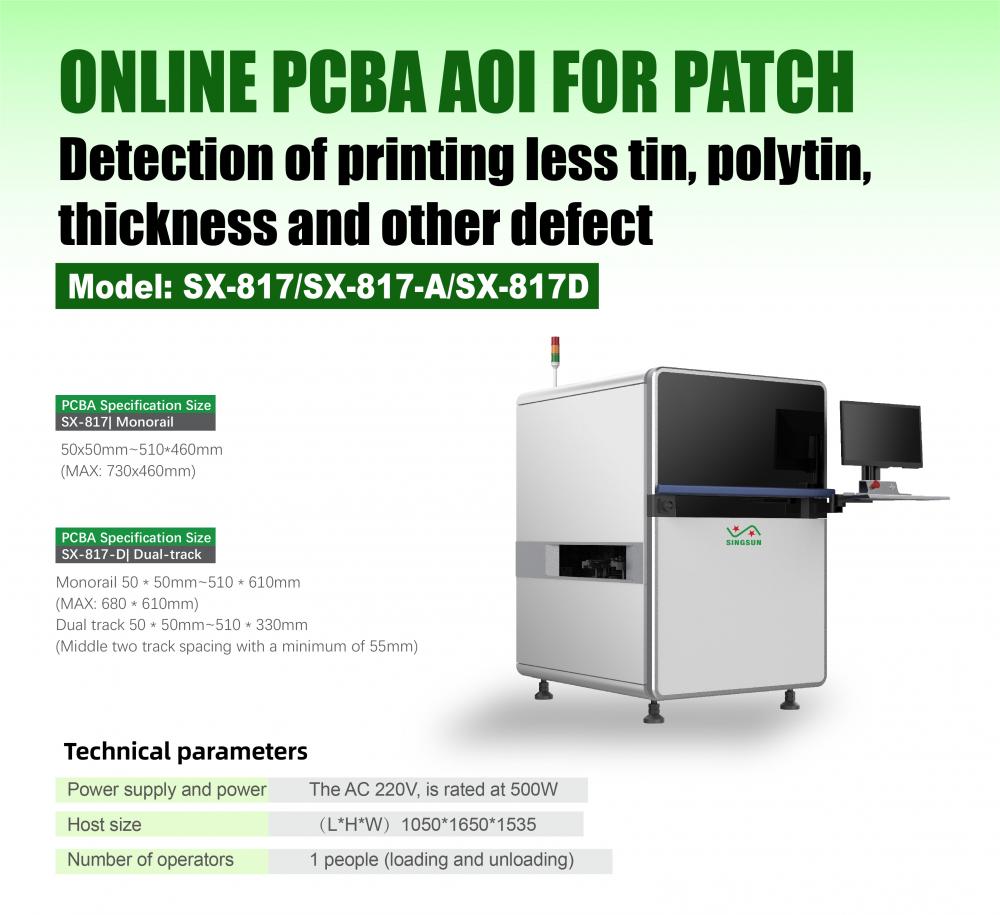

Product Hardware:

² CPU：intel i5

² Display card：NVIDIA Independent GPU Accelerator Card GTX1050Ti

² Memory：64G DDR4 ，240G SSD+2T Mechanical Hard Disk

² Network：1000M Wired Network Card

² Display： 23.8 inch FHD display

² Movement mechanism:  High precision lead screw + servo motor

² Rail width control: Manual/Auto

Product Advantage:

² Inspection-related

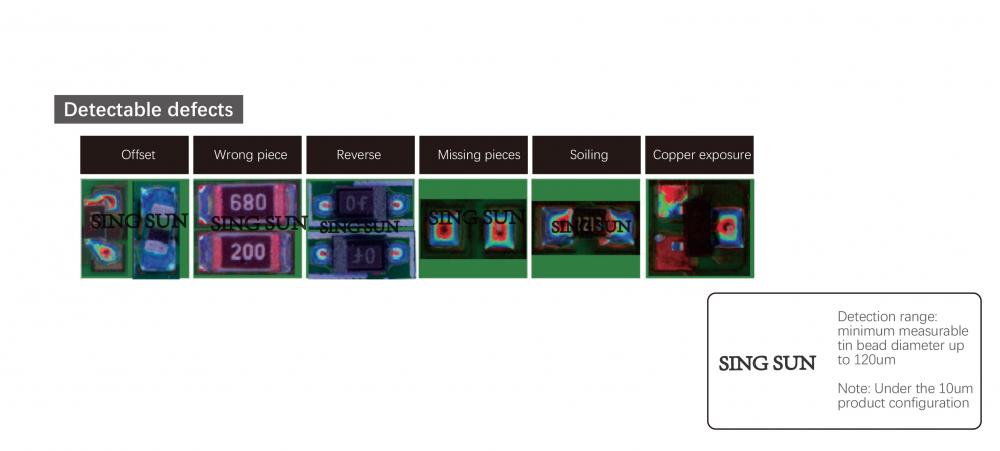

Components: Absent, Reversed, Misalignment, Broken, Extra, Foreign material, Stained

Other function: Bar code Recognition/QR code Recognition/OCR

Solder: insufficient, Excessive, Bridge, No foot, Solder void, etc

Mixing boards inspection: Support mixed board production and calling program automatically

Algorithm: CNN, Color contrast, Outline recognition, Off set inspection, Template matching, Character comparison, OCR, etc.

Speed: 0.23sec/FOV

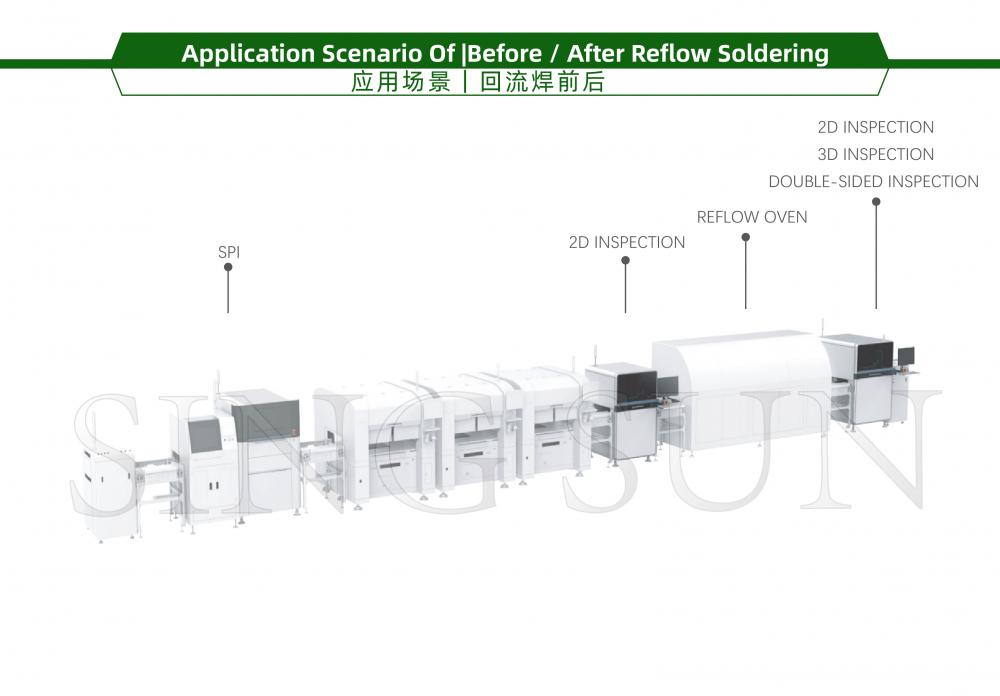

Product Structure Diagram:
