Environmentally Water-Based Stencil Cleaner

ROC can supply PCBA Cleaning Machine, PCB Cleaning Machine, SMT Nozzle Cleaning Machine, SMT stencil cleaning machine, Jigs cleaning machine, Camera modules cleaning machine, Wafer Cleaner Machine, etc.

ROC-1000X is used in：

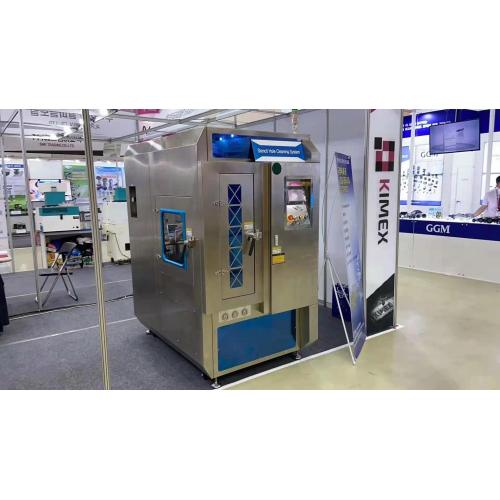

The ROC-1000X stencil cleaning machine is a fourth-generation stencil cleaner designed for the “Water-Based” process:
Fully automatic cleaning, rinsing and drying process. (Using unique double eight spray arm cleaning and rinsing design, double four air knife air cutting and drying design, cleaning and rinsing adopt online filtration to ensure cleanliness)
Applicable to: SMT steel mesh, copper mesh, plastic mesh, printing jig, PCB misprinting plate and PCBA cleaning, can effectively clean the surface of the printing and the residual solder paste, red glue and other contaminants;

Parameter allocation for ROC-1000X

Cleaning area
                   The cleaning liquid storage tank is used for recycling and storing the cleaning liquid, and the cleaning liquid is subjected to
                         level 3 filtration, heating and monitoring, and liquid level monitoring;
                         Cleaning pump: 2.2KW (1), 4 spray arms, 40 nozzles;
                         Reservoir volume: ≤ 90L (1);
                         Filter device: stainless steel filter 1mm (1 piece), filter screen 100 mesh (1 piece), tank filter bag: 10UM (1), cleaning and
                         folding filter 0.45UM (3);
                         Heating power: 9KW (1), heating temperature: room temperature - 70 ° C (adjustable);
                         Liquid level protection: low, medium, stop, over limit;
                         Spray pressure: 0.1-0.6Mpa (adjustable)
Rinsing area
                   The rinsing water tank is used to recover the stored water, and the rinsing water is subjected to level 4 filtration, heating
                         and monitoring, and liquid level monitoring.
                         Rinsing water pump: 2.2KW (1) spray arm 4, 40 nozzles;
                         Rinse storage tank volume: ≤90L (1);
                         Heating power of the rinsing water tank: 9KW (1 strip); heating temperature: room temperature - 70 ° C (adjustable);
                         Filter device: stainless steel filter 1mm (1 piece), filter screen 100 mesh (1 piece), tank filter bag: 10UM (1), cleaning and
                         folding filter 0.45UM (3);
                         Liquid level protection: low, medium, stop, over limit;
                         Spray pressure: 0.1-0.6Mpa (adjustable)
Drying area
                   The drying section is used to thoroughly dry the product and heat and dry the wind and monitor the temperature.
                         Drying fan: 3.45KW (1), stainless steel heating tube: 6KW (1), wind cut air knife 4, heating temperature: room temperature
                         - 60 ° C     (adjustable);
Stencil device moving up and down
                         The running device is smoothly rotated by the stepping motor, the stepper driver, and the encoder; Stepper motor: 1 set,
                          stepper drive: 400W (1), 1 encoder.
