SMT solder paste Stencil washing

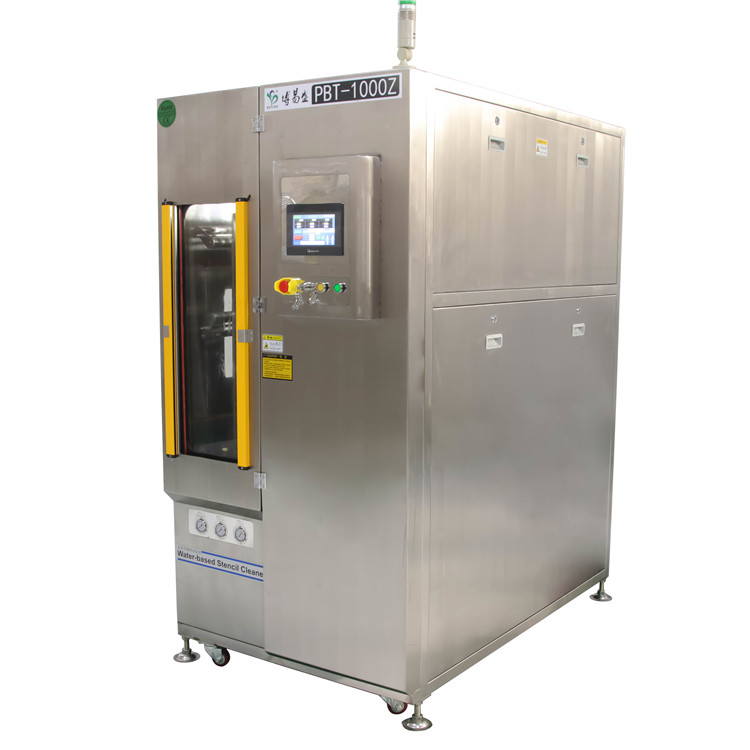

Automatic SMT solder paste and red gum  Stencil washing  machine SMT stencil size 01005 easy cleaning

Product Description

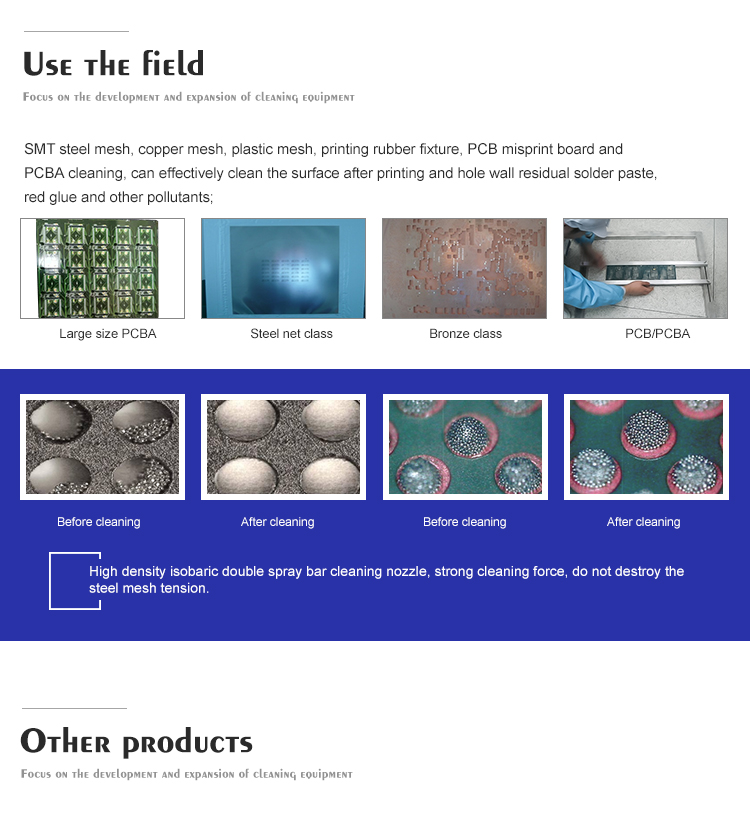

1.Apply to water-based cleaning solution to clean solder paste stencil and red glue stencil
2.Double spray system (eight spray bar cleaning), double spray system (four air knife air cutting), faster cleaning efficiency, 1pcs/eath time
3.Process flow: cleaning(2-3min） - chemical isolation - rinsing (open-loop/closed-loop)（0.5-1min） - air cutting1（1-2min） - drying;
4.Simple operation, adjustable parameters，Filtration accuracy 0.22um
5.The whole stainless steel body is durable, acid and alkaline resistant cleaning fluid.

The main products of ROC: SMT cleaning machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA cleaning machine, PCB separator, SMT spare parts, reflow / wave soldering machine, SMT nozzle, SMT feeder etc. If there is any need, please contact us.

Applicable stencil size	750(L) × 750(W) × 40mm(H) [Oversized size needs to be ordered]
Maximum tank volume	60 liters*2PCS (Man)
Spray pump	4HP stainless steel multistage centrifugal pump
Cleaning method	The stencil is thrown on the plate, and the four spray bars are sprayed with high pressure liquid (washing → wind cutting → rinsing → wind cutting → drying)
External power supply, air source	AC380V 50HZ 33KW 60A/ 0.45 ~ 0.7 (Mpa)
Air consumption	(150 to 350) L/Minutes
Exhaust port size	Φ100×30mm(H) Maximum gravitational wind speed 3m/see
filtering system	Primary filter tank filtration: 10μm (filter impurities and labels) Three-stage filter: 0.45μm (filter ball and rosin particles)
Machine net weight	~550Kg

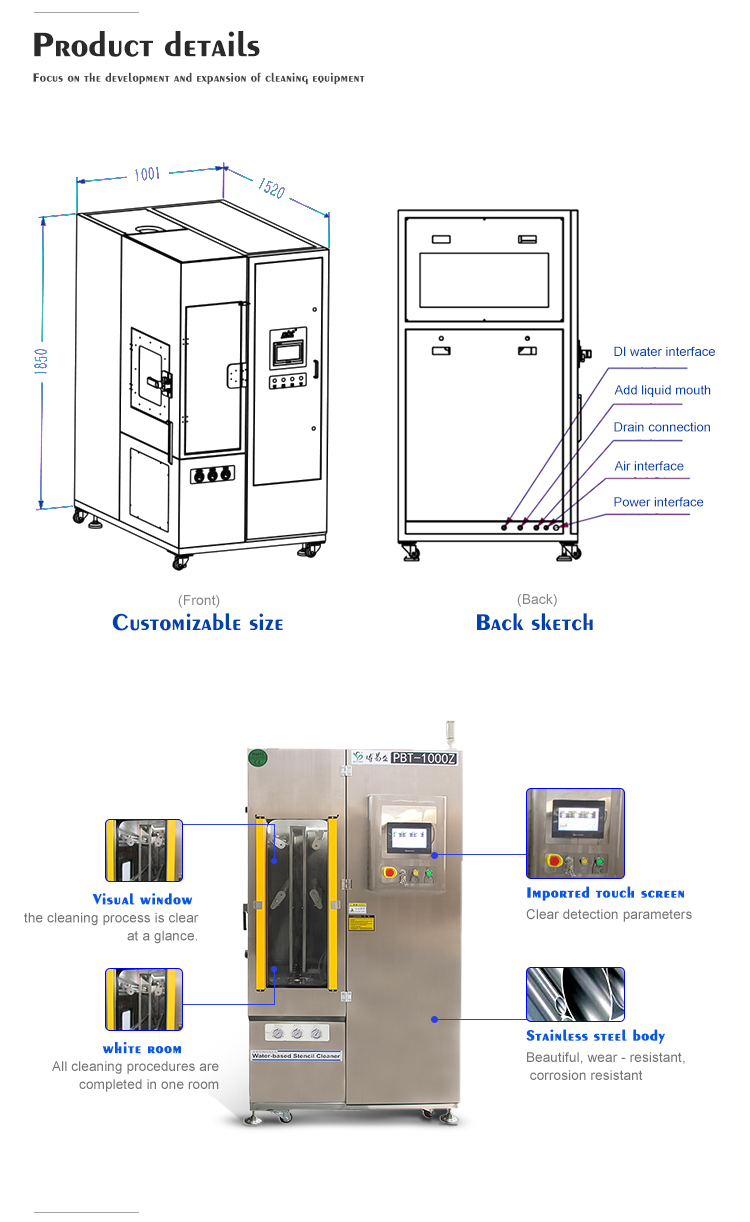

Machine size	1650mm (L) × 1100mm (W) × 2100mm (H)
