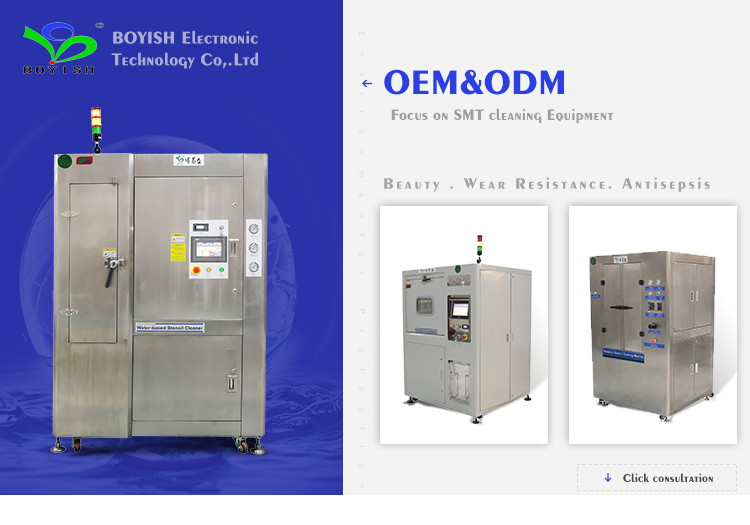

SMT Automatic Electric stencil cleaning machine

PBT-1000X   Environmentally friendly water-based  stencil cleaning machine

Product Description

1.Apply to water-based cleaning solution to clean solder paste stencil and red glue stencil
2.Double spray system (eight spray bar cleaning), double spray system (four air knife air cutting), faster cleaning efficiency, 1pcs/eath time
3.Process flow: cleaning(2-3min） - chemical isolation - rinsing (open-loop/closed-loop)（0.5-1min） - air cutting1（1-2min） - drying;
4.Simple operation, adjustable parameters，Filtration accuracy 0.22um
5.The whole stainless steel body is durable, acid and alkaline resistant cleaning fluid.

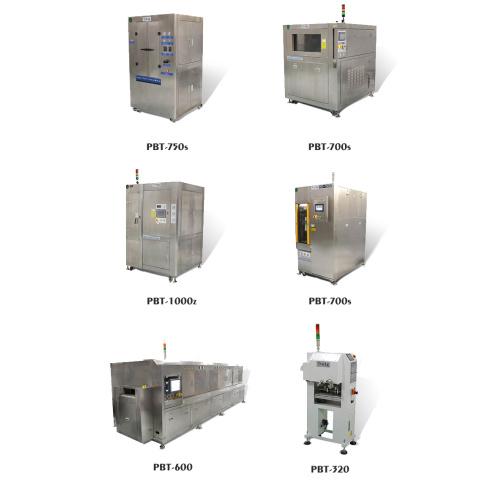

The main products of ROC: SMT Cleaning Machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA Cleaning Machine,  SMT Spare Parts, SMT Nozzle, SMT Feeder etc. If there is any need, please contact us.

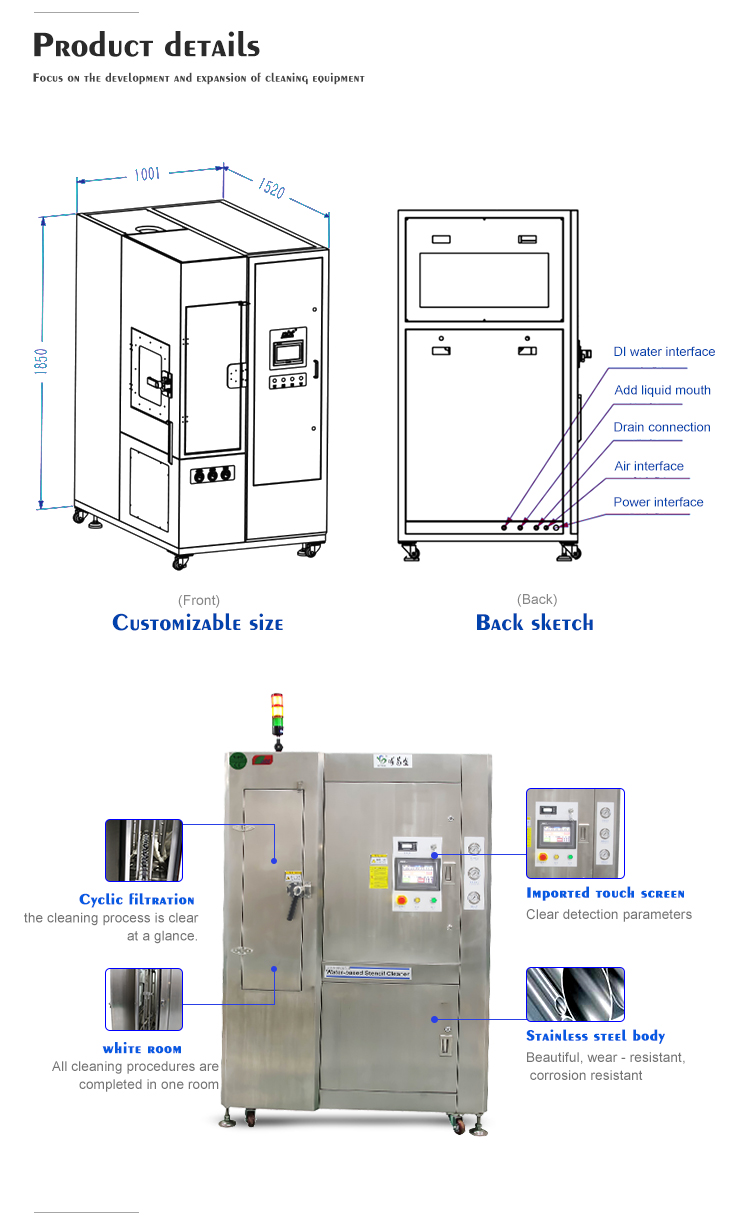

Size of cleaning basket	disc diameter 1000mm x 520mm (H)
Diluent tank capacity	65L (MAX)
Rinse tank capacity	65L (MAX)
Setting drying time	5 minutes
Cleaning mode	360 degree rotating disc; 720 degree high pressure cleaning liquid injection of spray rod
Equipment gas supply	0.45Mpa~ 0.7Mpa
Outlet size	Φ120(W)×30mm(H)
Rinsing drainage flow	40 L/Min
Chemical fluid filter	10μm
DI rinse filter	0.45μm
