Stencil Cleaning Machine with Low Price

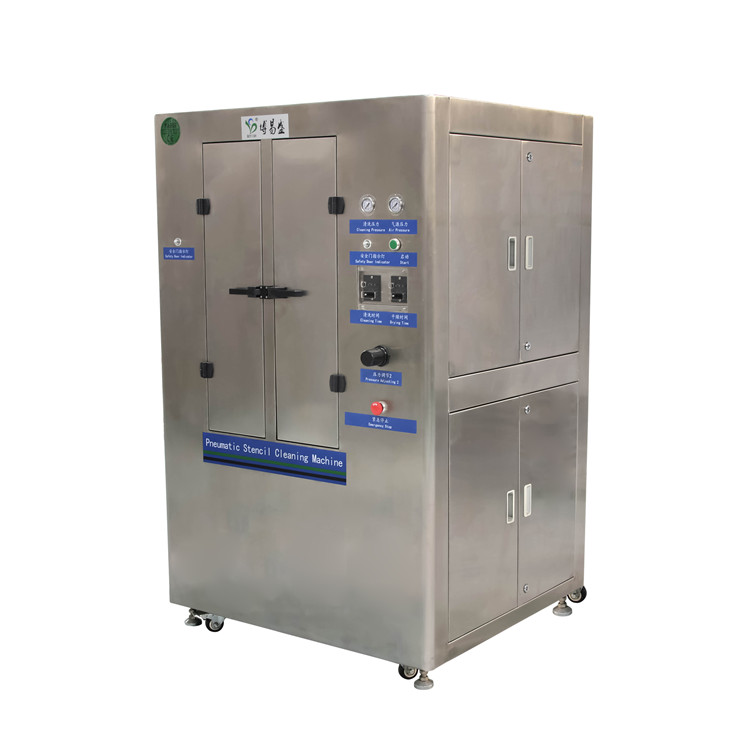

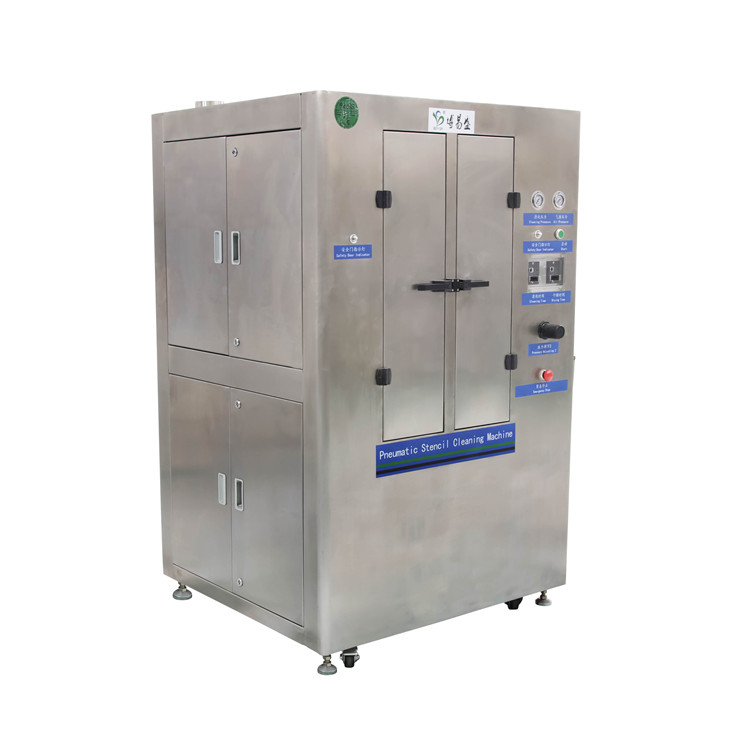

2019 Sell well pneumatic SMT stencil Cleaning Machine with Low Price

Product Description

Feature：

1.Apply to water-based cleaning solution to clean solder paste stencil and red glue stencil
2.Double spray system (eight spray bar cleaning), double spray system (four air knife air cutting), faster cleaning efficiency, 1pcs/eath time
3.Process flow: cleaning(2-3min） - chemical isolation - rinsing (open-loop/closed-loop)（0.5-1min） - air cutting1（1-2min） - drying;
4.Simple operation, adjustable parameters，Filtration accuracy 0.22um
5.The whole stainless steel body is durable, acid and alkaline resistant cleaning fluid.

Technical parameters:

1. Cleaning max size：750mm(L) ×750mm(W) × 40mm(H)
2.Cleaning fluid Capacity：60L（max）×2PCS
3.Cleaning Process flow：The stencil moves up and down, and eight spray rods spray high-pressure liquid (cleaning → wind cutting → rinse → wind cutting → dry).
4.Rinse method: spray, open or closed loop
5.Drying method: four air knife air cutting drying
6.Clean liquid for recycling and filtration,recycled filter 0.45um
7.Air supply：0.45Mpa~ 0.7Mpa
8.Air consumption：200-400L/Min
9. power supply ：AC380V 50HZ 60A
10. net weight：≈450Kg
11.Vent size：Φ120mm(W)
13. The machine size：1000mm(L) ×1520mm(W) × 1950mm(H)

The main products of ROC: SMT Cleaning Machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA Cleaning Machine, PCB Separator, SMT Spare Parts, Reflow / Wave Soldering Machine, SMT Nozzle, SMT Feeder etc. If there is any need, please contact us.

Size of cleaning basket	disc diameter 1000mm x 520mm (H)
Dilution tank capacity	65L (MAX)
Rinse tank capacity	65L (MAX)
Setting drying time	5 minutes
Cleaning mode	360 degree rotating disc; 720 degree high pressure cleaning liquid injection of spray rod
Equipment gas supply	0.45Mpa~ 0.7Mpa
Outlet size	Φ120(W)×30mm(H)
Rinsing drainage flow	40 L/Min
Chemical fluid filter	10μm
DI rinse filter	0.45μm
