Economical efficient nozzle cleaner automatic ​cleaning

Economical efficient nozzle cleaner automatic cleaning machine

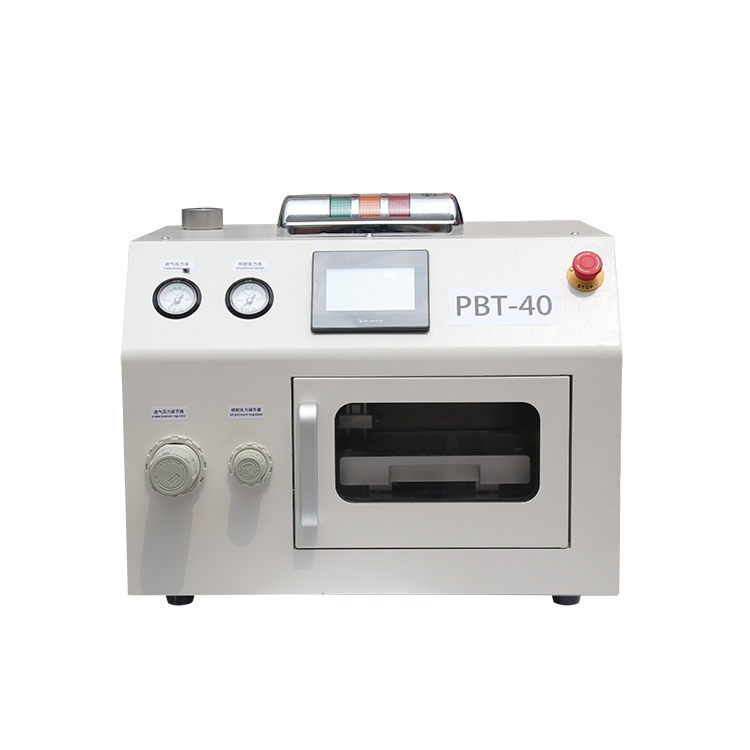

The PBT-40 automatic nozzle cleaning machine is an integrated and comprehensive cleaning machine with energy saving,
environmental protection and batch cleaning. It can fully perform cleaning and drying functions online. It greatly improves the whole cleaning process, with high cleaning efficiency, higher quality, safer and more environmentally friendly.

The main products of ROC: SMT Cleaning Machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA Cleaning Machine, SMT Nozzle etc. If there is any need, please contact us.

Production Features:

1.Clean 40 nozzles in one time, quicker and more efficient
2.Replace traditional manual clean, avoid troubles caused by ultrasonic cleaner, reduce rejection rate.
3.To clean the dirt completely which ultrasonic cleaner can not deal with.
4.Cleaning result will not affect by the smaller and smaller nozzle.
5.Thoroughly clean 99% dirt on nozzle, extend the lifespan of nozzle.
6.Protect the coating surface of nozzle and its reflection panel.
7.Never use solvent, only environmentally friendly DI water is enough.
8.Easy operation.
9.Applicable to all kinds of Mounter nozzles, especially on corss, I-shape, odd-shape nozzles.

Product Description

1.can cleaning all kinds of nozzle：Panasonic nozzle, Fuji NXT nozzle，Siemens/ASM nozzle，Sony nozzle ，Samsung nozzle and so on.

2.can detect：dirty，stuck，bending，scratch

3.Input voltage, frequency:AC220V  50HZ

Size of cleaning basket	disc diameter 1000mm x 520mm (H)
Dilution tank capacity	65L (MAX)
Rinse tank capacity	65L (MAX)
Setting drying time	5 minutes
Cleaning mode	360 degree rotating disc; 720 degree high pressure cleaning liquid injection of spray rod
Equipment gas supply	0.45Mpa~ 0.7Mpa
Outlet size	Φ120(W)×30mm(H)
Rinsing drainage flow	40 L/Min
Chemical fluid filter	10μm
DI rinse filter	0.45μm
