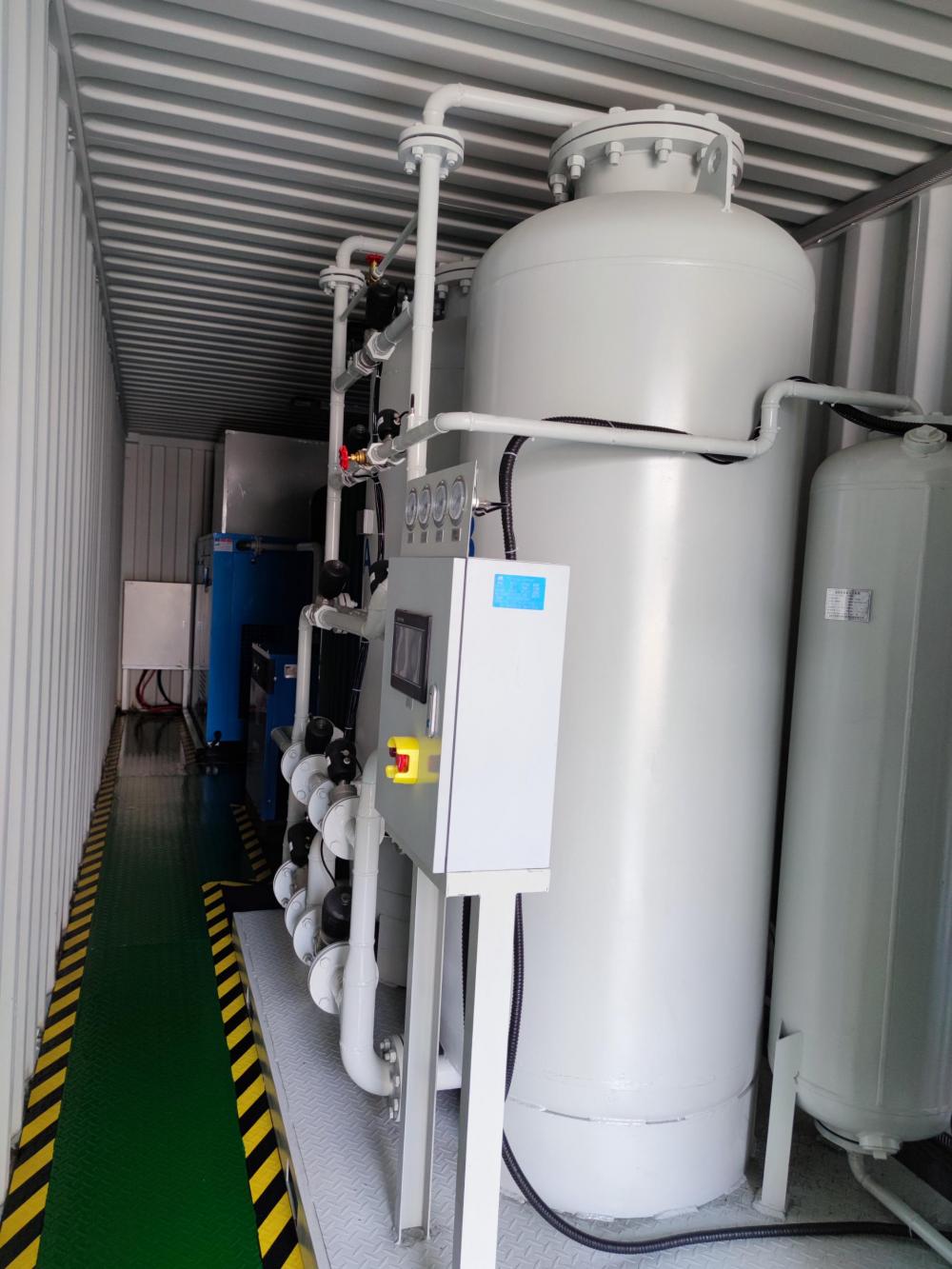

10 NM3/H Skid-Mounted Oxygen Plant

 Oxygen Generator Working Principle:
About the portable oxygen generator.The compressed air passes through the pretreatment system to remove solid impurities such as oil and dust and most of the gaseous water, and enters the adsorption tower equipped with zeolite molecular sieve (ZMS). The nitrogen, carbon dioxide and water vapor in the air are adsorbed by the adsorbent, and the oxygen passes through The superabsorbed bed is separated. When the adsorbed impurities in the adsorption tower reach a certain level, they enter the atmosphere for desorption and desorption to regenerate the adsorbent. The adsorption separation system consisting of two towers and three towers is cyclically switched under the automatic control of PLC or DCS system to complete continuous oxygen production. This process is called the principle of PSA (Pressure Swing Adsorption, PSA for short) pressure swing adsorption oxygen production.

Main Technical Indicators and Features：
PSA Oxygen Generator System Indicators

★ Oxygen flow rate: 1～240 m3/h
★ Oxygen purity: 93%~96%
★ Oxygen pressure: 0.45 ~ 0.6 MPa
★ Dew point: -50℃

Features:(1) High degree of automation (2) Higher reliability (3) More significant commercial value

Our Service:

Pressure swing adsorption (PSA) oxygen generators can be used in industrial and pharmaceutical industries. According to the different requirements of different users in different industries for the use of oxygen, our Kunpeng team provides personalized and professional Gas Production Equipment to fully meet the gas requirements of different users .
