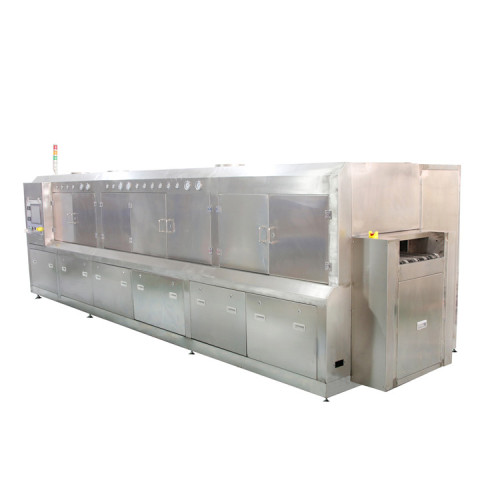

Online PCBA cleaning machine

environmentally friendly PCBA cleaning equipment

The overall 304  stainless steel body is strong and durable , resistant to acid, alkaline cleaning fluid, in line with environmental requirements and
standards；Suitable for mass cleaning，full automat-icon line complete chemical cleaning，DI rinsing , wind cutting drying , drying all processes；
Drying part control section：four handle air knife cutting water+ultra-long infra- redhot air circulation drying section；
Product protection Standard tank heating system：greatly improve cleaning efficiency and shorten cleaning time；

Use the field

Onlie PCBA Cleaning Machine Can effectively clean SMT/THT PCBA welding surface residual ros influx， water soluble flux， clean
type flux/paste and other organic and inorganic pollutants

The main products of ROC: SMT Cleaning Machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA Cleaning Machine, PCB Separator, SMT Spare Parts, Reflow / Wave Soldering Machine, SMT Nozzle, SMT Feeder etc. If there is any need, please contact us.

product parameter:

Content	Parameter
Size in cleaning area	650mm(L) ×600mm(W) × 160mm(H)   3layers
Size of equipment appearance	1300mm(L) ×1400mm(W) × 1950mm(H)
Power / air source	Three-phase five-wire system, 380V/15Kw (rated power) / 0.45Mpa-0.7Mpa
Spray tank capacity	20L
Heater power in spray tank and dilution tank	9KW
Cleaning time	0~99 mins (adjustable)
Cleaning temperature (liquid)	Normal temperature —75 ° C (adjustable)
Rinsing time	1 minute / time (1-59 times / adjustable)
Rinsing temperature (DI water)	Normal temperature —55 ° C (adjustable)
Drying time	0~99 mins (adjustable)
The monitoring range of the resistivity meter	0~18MΩ
Power of heater with solvent tank	9KW
