Automatic PCBA Single Side Cleaning Machine

Automatic PCBA Single Side Cleaning Machine

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB

Delivery Time:: 20 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	Strong
Payment Type:	L/C,T/T
Incoterm:	FOB
Transportation:	Ocean,Land,Air

Product Description

Fully automatic PCBA single side cleaning machine

Product Description

Process flow	Into the board - chemical pre-washing - chemical cleaning - chemical isolation - pre-rinsing - rinsing - drying

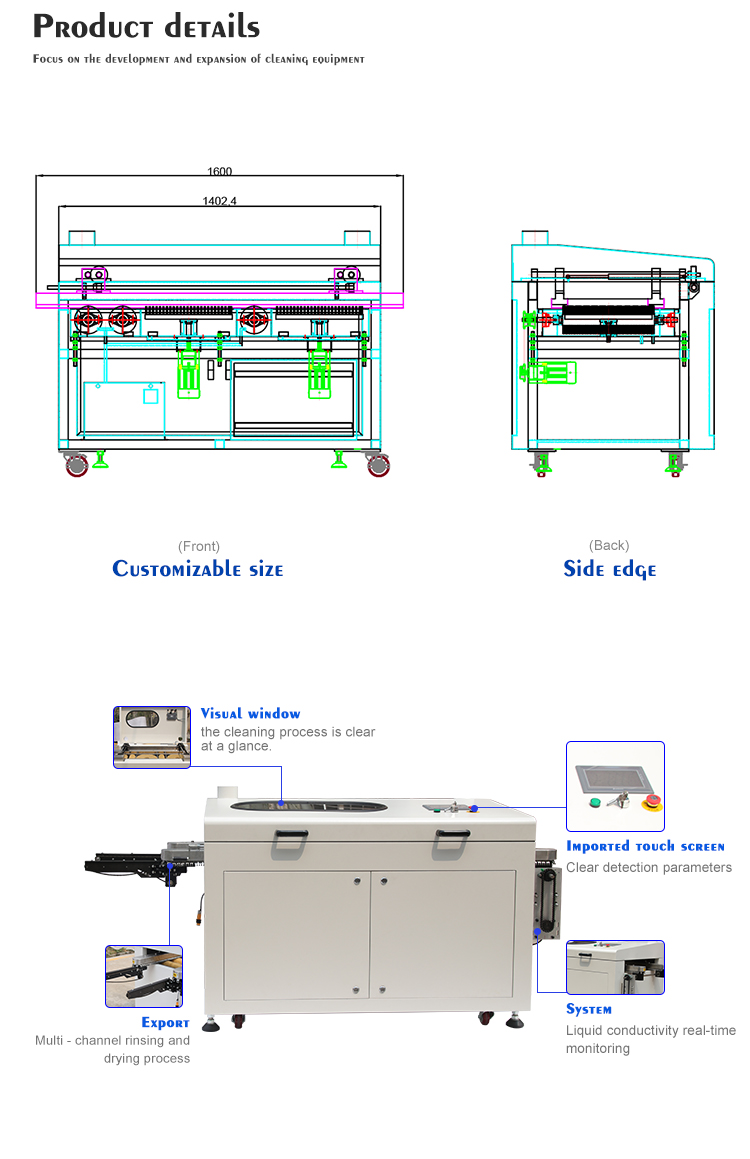

Dimensions	2750(L)X1150(W)X1100mm(H)
Productivity	Basis: according to 350mmX100mm board, 1"'s board spacing, 0.3~0.4m/min working speed Production is: about 20m2 / hour (Example 150*200mm board, hourly output: about 700PCS/H This output is for reference only, whichever is the actual)
Workpiece size	Maximum: 350mm (W) X100mm (H) L = ∞ Minimum ·: 20mmX20mm (fixed clamp required) Thickness: 1-3mm
Working speed	0.1-2m/min adjustable; recommended to 0.3-0.4m/min
Conveying surface height	750±50mm
Conveying surface width	20---350mm can be installed
In and out direction	Left to right out (view from the front window of the unit)
Exhaust volume (exhaust air volume)	About 16M3/Min
control	Touch screen + PLC control

The main products of ROC: SMT Cleaning Machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA Cleaning Machine, SMT Spare Parts, SMT Nozzle, SMT Feeder etc. If there is any need, please contact us.

Fully automatic PCBA single side cleaning machine
