High Quality Onsite Nitrogen Generation Units

High Quality Onsite Nitrogen Generation Units

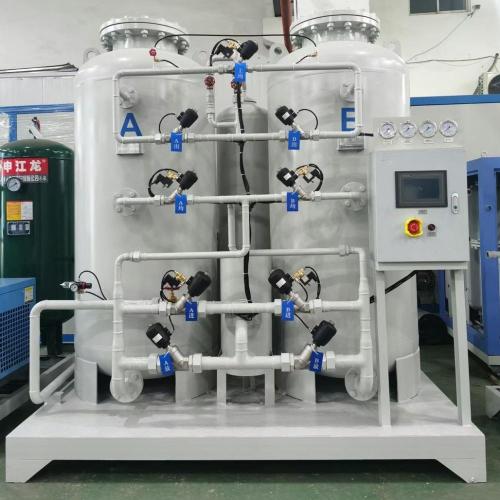

KunPeng Pressure swing adsorption (PSA) nitrogen generators begin with clean, dry compressed air to create a continuous supply of high purity nitrogen. Generating nitrogen in-house is a cost-effective and reliable alternative to the use of cylinder or liquid nitrogen across a wide range of applications.

Kunpeng has Air Separation Plants, Liquid Oxygen / Nitrogen Plant,  PSA Oxygen/Nitrogen Generator, Medical (gas) Oxygen Plant, VPSA Oxygen / Nitrogen Generator, and so on. If you need, please don't hesitate to contact us

Meanwhile we also provide OEM/ODM service of PSA Oxygen/ Nitrogen Generator, you just need to tell us the oxygen use industry, capacity, purity, outlet pressure and equipent brand, we can design and produce for you.

Nitrogen capacity: 1- 2000Nm3/h
Nitrogen purity: 95%-99.999%
Nitrogen pressure: 0.5-0.8Mpa( boost for high pressure
Nitrogen dew point: s-40°C or -60°C(Atmosphere pressure)
Customized pressure, purity and capacity ranges.

Technical characteristics
1.The material source is from the nature, the system only needs compressed air and power, so the cost of power and operation is less
2. Nitrogen purity is easy to adjust, it is only affected by the capacity, purity of normal nitrogen is at the range of 95%-99.99%(can be adjusted), purity of high nitrogen is at the range of 99%-99.999%(can be adjusted)
3. The system is automatic, quick starting and no need to monitor. One button for start and stop, run 10-15 minutes to generate the N2 air
4. The working progress is easy, the configuration is compact, the landing space is less and the environment is well-adapted
5. Snow storm filling can avoid the damage of CMs
6. Digital flow meter has pressure compensation, it is highly precise meter which can monitor the progress, it can test quick flow and accumulate the total capacity
