Psa N2 Nitrogen Production

Psa N2 Nitrogen Production

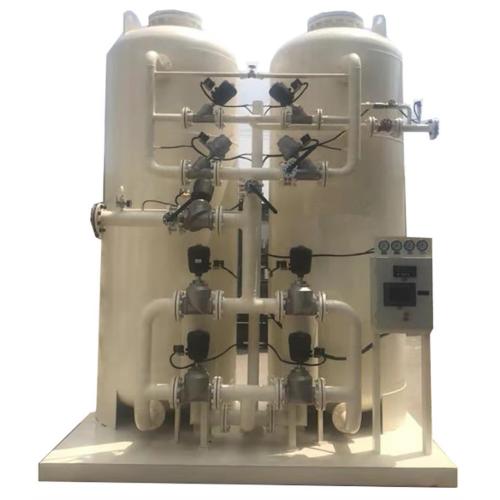

PSA refers to the nitrogen equipment designed and manufactured by pressure swing adsorption technology with clean compressed air as raw material and using physical methods. Nitrogen making machine with high quality imported carbon molecular sieve (CMS) as adsorbent, using the principle of pressure shift adsorption at room temperature, separating air to produce nitrogen of different purity. Usually use two adsorption towers in parallel, controlled by imported PLC imported pneumatic valve automatic operation, alternately pressurized adsorption and decompression regeneration, complete nitrogen and oxygen separation, to obtain the required nitrogen of different purity.

At present, nitrogen generation devices are widely used in safety protection gas, replacement gas, nitrogen injection, tertiary oil recovery, coal mine fire and fire extinguishing, nitrogen-based atmosphere heat treatment, anti-corrosion and explosion-proof, electronics industry, integrated circuits, etc.

The main products of ROC: SMT Cleaning Machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA Cleaning Machine, PCB Separator, SMT Spare Parts, Reflow / Wave Soldering Machine, SMT Nozzle, SMT Feeder etc. If there is any need, please contact us.

Technical indicators

Nitrogen capacity: 1- 2000Nm3/h
Nitrogen purity: 95%-99.999%
Nitrogen pressure: 0.5-0.8Mpa( boost for high pressure
Nitrogen dew point: s-40.C(Atmosphere pressure)
Customized pressure, purity and capacity ranges.

Technical characteristics
1.The material source is from the nature, the system only needs compressed air and power, so the cost of power and operation is less
2. Nitrogen purity is easy to adjust, it is only affected by the capacity, purity of normal nitrogen is at the range of 95%-99.99%(can be adjusted), purity of high nitrogen is at the range of 99%-99.999%(can be adjusted)
3. The system is automatic, quick starting and no need to monitor. One button for start and stop, run 10-15 minutes to generate the N2 air
4. The working progress is easy, the configuration is compact, the landing space is less and the environment is well-adapted
5. Snow storm filling can avoid the damage of CMs
6. Digital flow meter has pressure compensation, it is highly precise meter which can monitor the progress, it can test quick flow and accumulate the total capacity
