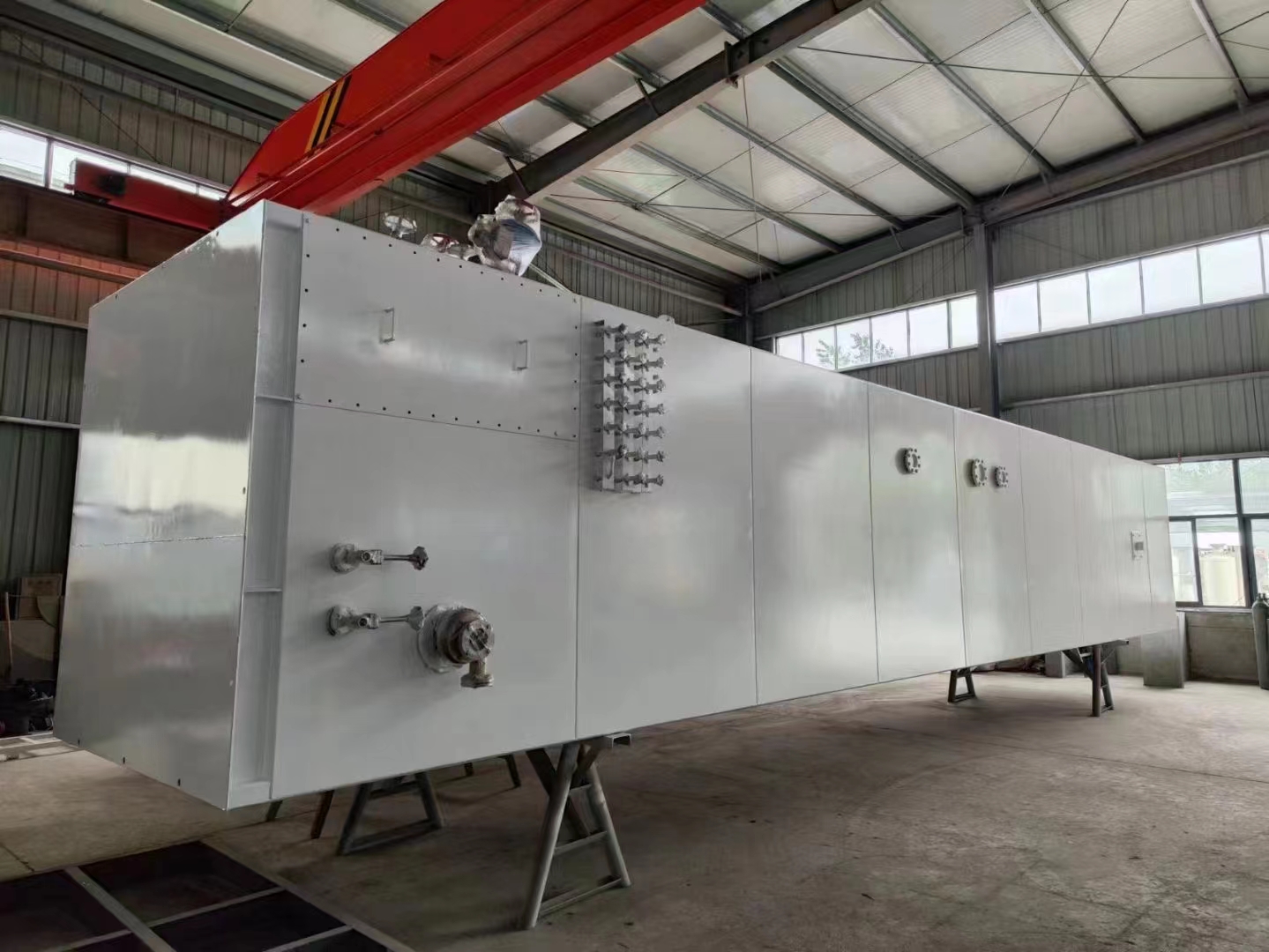

Low pressure External Compression Cryogenic ASU Unit
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|---|
| Incoterm: | FOB,EXW |
| Transportation: | Ocean,Land,Air |
Product Specification
1. Cryogenic Oxygen Air Separation Unit with normal temperature molecular sieves purification, booster-turbo expander, low-pressure rectification column, and argon extraction system according to client’s requirement.
2. According to the product requirement, external compression,internal compression (air boost,nitrogen boost),self- pressurization and other processes can be offered.
3. Blocking structure design of ASU, quick installation on site.
4. Extra low pressure process of ASU which reduce air compressor exhaust pressure and operation cost.
5. Advanced argon extraction process and higher argon extraction rate.

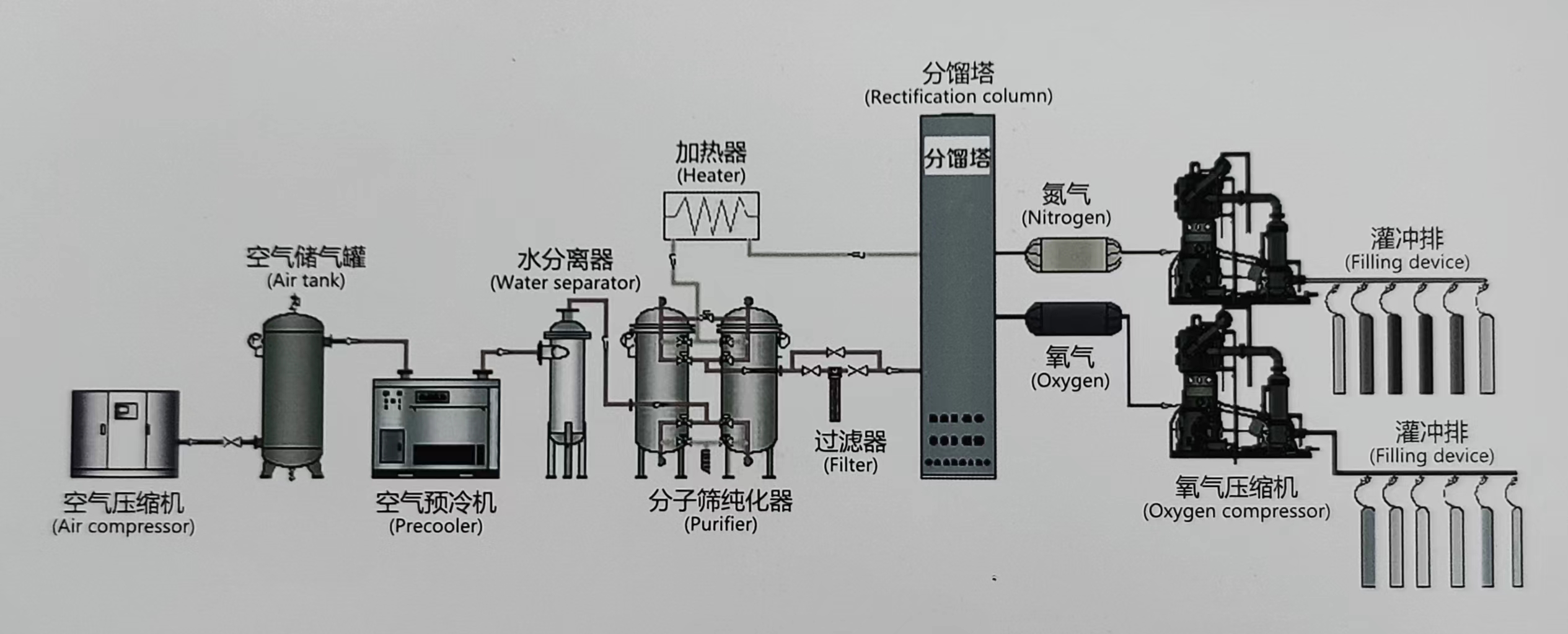

Process Flow of asu plant
3.Full low pressure process with booster turboexpander.
Main Features
1.This development and design of flow is new, my company use the Cryogenic Air Separation Unit technology to mature.
2.Simple operation, convenient maintenance, starting time is short, unit power consumption is low.
3.Oxygen of high purity and very stable, meet and exceed technical indicators of GB8982-1998.
4. Use of air cooling equipment, do not need cooling water, adaptable, saving the cost.
5. Security :The outside compression process is oxygen be compressed at room temperature, The inside compression process is liquid oxygen be compressed at low temperature, Security than more with the inside compression process; Extraction a lot of liquid oxygen from evaporation-condenser, To ensure that no accumulation of hydrocarbons; Evaporation of high pressure with liquid oxygen, reducing the possibility of hydrocarbon accumulation; Reducing fire hazards.
6.Reliability: liquid oxygen pump excellent performance, easy to maintain; Booster compressor is one or two compression, oxygen compressor Booster compressor is three or five compression, High reliability with booster compressor.
