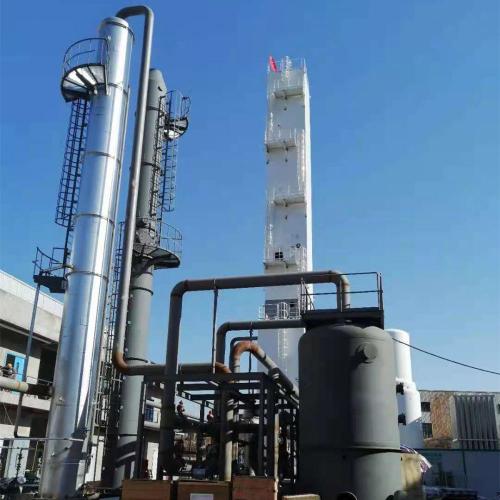

Medical Use Cryogenic Liquid Air Separation Plant Liquid

Medical Use Cryogenic Liquid Air Separation Plant Liquid

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T,Paypal,Others
Incoterm:	FOB,CIF,EXW
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Cryogenic Liquid Air Separation Plant

Principle

The basic principle of air separation is to use cryogenic rectification to condense air into liquid and separate the air according to the evaporation temperature of each component. The two-stage rectification tower simultaneously obtains pure nitrogen and pure oxygen at the top and bottom of the upper tower. It is also possible to take out liquid oxygen and liquid nitrogen from the evaporation side and the condensation side of the main cooling respectively. The air separation in the rectification tower is divided into two stages, air is separated for the first time in the lower tower to obtain liquid nitrogen and at the same time obtain oxygen-enriched liquid air. The oxygen-enriched liquid air is sent to the upper tower for rectification to obtain pure oxygen and pure nitrogen. The upper tower is divided into two sections: with the liquid-air inlet as the boundary, the upper part is the rectification section, which rectifies the rising gas, recovers the oxygen component, and purifies the nitrogen purity, and the lower section is the stripping section to remove the nitrogen components in the liquid, separated to improve the oxygen purity of the liquid.

process

Security technology

* Reliable instrument tube protection system

* Pipes are designed along the tower body
* Pipe design along the tower body main condensation evaporator safety design
* Safety setting of oxygen valve
* Molecular sieve anti-punch technology
* Selection and layout of the throttle valve

Technical parameter-Cryogenic Air Separation Oxygen And Nitrogen Argon Plant

Cryogenic liquid oxygen

1. Q: Can you provide the drawings of your plant/tanks?

Normally, our drawings will be provided to our customers only after the order is confirmed. However, we can provide you with some drawings which belong to our old customers for reference. By the way, here, I need to remind you that our company only provides engineering design drawings and the civil design drawings will be out of our range. Because every place has a different situation, your side needs to find a civil design company in your local market to do the drawings according to your specified environment.

2. Q: How are the producing time and delivery time??

Normally, our production time is 6 months for air separation plants but it also depends on the capacity you require. The

bigger the plant, the longer time for production. Please also note that when the plant is finished, we need to wait for the bulk vessel. It’s very common to wait for one or two months to find the right vessel.

The delivery date is 3-5 months.

3. Q: What about the warranty?

Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 14 months from the date on which the equipment has been delivered, whichever comes first.

Generally speaking, our air separation unit can work normally for 15-20 years if it is maintained properly. As a leading brand in China with over 40 years of history, the reliability and stability of our ASU are much better than small young companies.

KunPeng company mainly deals with equipment, small PSA liquid nitrogen generators, PSA oxygen/nitrogen generators, air separation plants, and liquid oxygen/nitrogen generators, if you have any need, welcome to consult us, thank you.
