N2 O2 Ar Plant Cryogenic Air Separation Unit

Get Latest Price

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T
Incoterm:	FOB,EXW
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Product Description

The asu plant separates atmospheric air into its primary components, typically nitrogen and oxygen, and sometimes also argon and other rare inert gases. The most common method for air separation is cryogenic distillation. Cryogenic air separation plants are built to provide nitrogen or oxygen and often co-produce argon. It uses mature cryogenic rectification technology. Our factory developed and designed a full-low pressure molecular sieve to purify the air and turbo expander refrigeration process to further reduce the energy consumption of small and medium sized air separation plants.

MODEL	PRODUCT	PRODUCTION ( Nm3/h)	Purity
KDO	Oxygen	50 to 3000	99.6% - 99.8%
KDN	Nitrogen, Liquid nitrogen	50 to 3000	99.9%-99.999%
KDON	Oxygen, Nitrogen, Liquid Oxygen, Liquid Nitrogen	50 to 3000	Oxygen:99.6% - 99.8% Nitrogen: 99.9%-99.999%
KDONAR	Oxygen, Nitrogen, Argon Liquid Oxygen, Liquid Nitrogen, Liquid Argon	O2, N2 : 50 to 3000 Ar : 5 to 90	Oxygen:99.6% - 99.8% Nitrogen: 99.9%-99.999% Argon: 1.5ppm O2+4ppm N2

Main Equipment

Self-cleaning suction air filter; Air turbine compressor unit; Air precooling system; Molecular sieve purification system; Distillation column system; Turbo expander system; Refrigerating unit; Product liquid storage system; Gas cylinder, etc

Process Description

The air passes through the air filter, enters the air compressor, compresses to 0.7mpa in the compressor, and then enters the purifier after cooling, where the impurities such as water, carbon dioxide and acetylene in the air are removed. The purified air enters the heat exchanger for heat exchange with the backflow polluted nitrogen. A part of the gas is pumped into the turbine expander through the outlet of the heat exchanger, and the expansion provides a cooling source for the whole set of air separation unit devices. The other gases continue to cool through the second heat exchanger and then enter the rectifying tower, where they are separated by oxygen and nitrogen. Finally, qualified liquid nitrogen is obtained from the top of the rectifying tower. After decompression by the throttle valve, the liquid air at the bottom enters the condensing evaporator at the top of the tower and the nitrogen heat exchange at the top of the rectifying tower, and then passes through the cooler, the second heat exchanger and the main heat exchanger cooling box as the regenerative purifier.

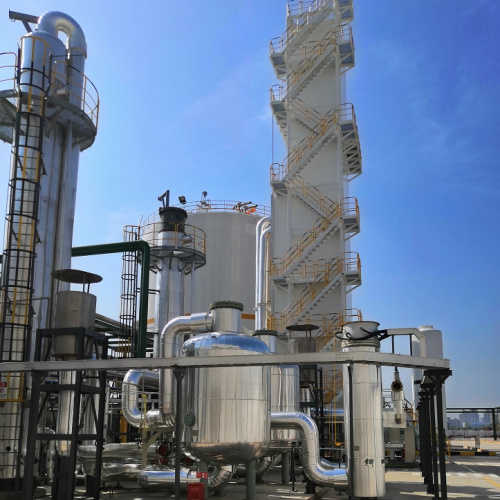

$fractionating tower-2$
