Industrial Medical Large Cryogenic Air Separation Unit

Product Description

The air separation plant separates atmospheric air into its primary components, typically nitrogen and oxygen, and sometimes also argon and other rare inert gases. The most common method for air separation is cryogenic distillation. Cryogenic air separation plants are built to provide nitrogen or oxygen and often co-produce argon. It uses mature cryogenic rectification technology. Our factory developed and designed a full-low pressure molecular sieve to purify the air and turbo expander refrigeration process to further reduce the energy consumption of small and medium-sized air separation plants.

KunPeng has Air Separation Plants, Liquid Oxygen / Nitrogen Plant,  PSA Oxygen/Nitrogen Generator, Medical (gas) Oxygen Plant, VPSA Oxygen / Nitrogen Generator, and so on.  If there is any need, feel free to contact us.

The air passes through the air filter, enters the air compressor, compresses to 0.7mpa in the compressor, and then enters the purifier after cooling, where the impurities such as water, carbon dioxide, and acetylene in the air are removed. The purified air enters the heat exchanger for heat exchange with the backflow polluted nitrogen. A part of the gas is pumped into the turbine expander through the outlet of the heat exchanger, and the expansion provides a cooling source for the whole set of devices. The other gases continue to cool through the second heat exchanger and then enter the rectifying tower, where they are separated by oxygen and nitrogen. Finally, qualified liquid nitrogen is obtained from the top of the rectifying tower. After decompression by the throttle valve, the liquid air at the bottom enters the condensing evaporator at the top of the tower and the nitrogen heat exchange at the top of the rectifying tower and then passes through the cooler, the second heat exchanger and the main heat exchanger cooling box as the regenerative purifier.

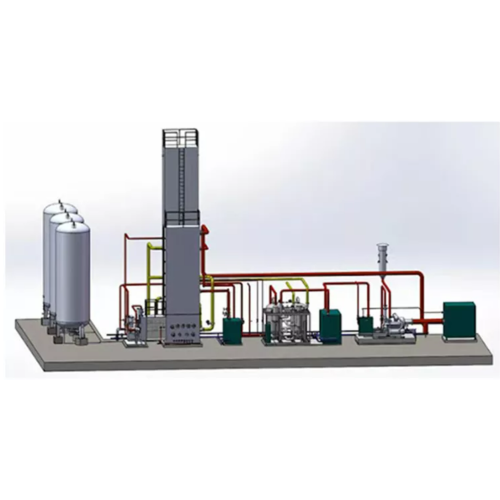

Air compressor; Air tank; Precision filter; Air pre-cooling system; Water separator; Molecular sieve purification system; Heater or molecular sieve purification system; Rectification column; Heater or the rectification column; Gas bearing turbo-expander; Liquid Oxygen Pump; Filling device; Electrical & instrument control system; Liquid oxygen/nitrogen plant cryogenic storage tanks; Gas cylinder, etc

Special Features of ASU Plant:

• A few of the latest technological features incorporated into the Oxygen & Nitrogen plants are listed below.
• Purity of Oxygen produced from all plants is a minimum of 99.7% and Nitrogen Purity can be available up to 1-10 PPM (Depending upon the requirement of the customer).
• All plants use an "Oil-free" rotary screw /centrifugal oil compressor working between 6-13 BAR.
• All plants incorporate Aluminum Brazed exchangers and packed columns for high efficiency.
• Turbo expanders (GAS Bearing) for trouble-free operation.
• All plants can be supplied with automatic PLC control.
• Engineering support along with complete quality control is provided by our company.
• We provide qualified engineers for the Supervision, Installation, and start-up of all our plants as well as training of manpower at customers' sites.
• Very low power consumption with proven performance and virtually easy maintenance required for the machines.
• 100% reliability for oxygen gas quality for industrial & hospital use.
