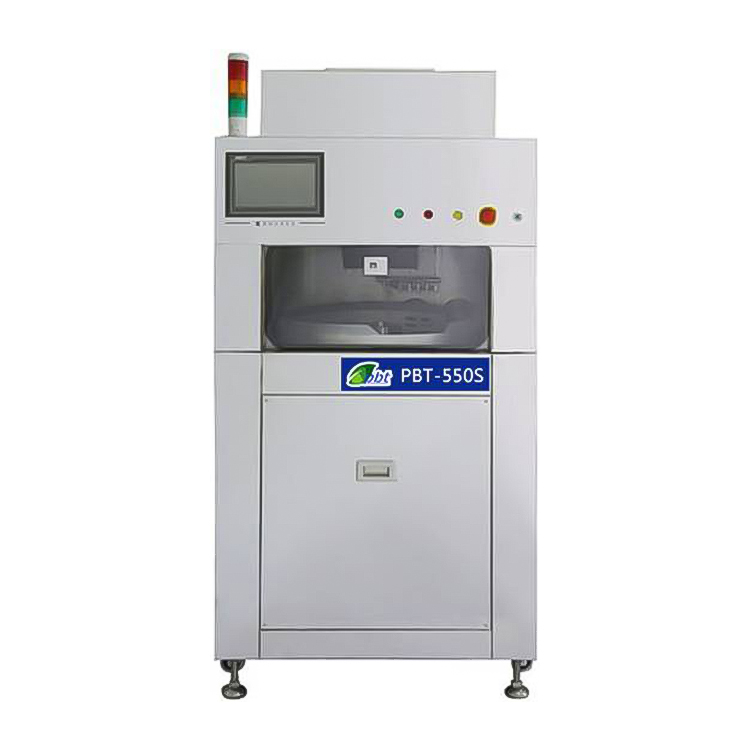

Automatic Mobile phone camera module cleaning machine
Equipment Introduction:
Through the high-precision multi-axis manipulator, Mobile Camera Module Cleaning System is taken
out from the magazine and placed in the cleaning chamber with high
cleanliness. Through the double cooperation of two fluid sprays up and
down and high-speed centrifugal dehydration, the dust cleaning process
on the surface of the product is completed.
Equipment Application and Industry:
It is applicable to chip, optical glass LENS, VCM, LENS and IR surface dust cleaning process in CCM camera module process.
Equipment Advantages:
1.High efficiency,UPH≥68 plates/hour
UPH≥102 plates/hour
2.High yield,yield≥ 99.3%
3.Compatibility,compatible with a variety of carriers
4.High
market share in the domestic market, the stability and efficiency of
the equipment has been recognized by customers, market share ranking top
The main products of ROC: SMT Cleaning Machine, PSA oxygen / nitrogen generator, wafer cleaning equipment, PCBA Cleaning Machine, PCB Separator, SMT Spare Parts, Reflow / Wave Soldering Machine, SMT Nozzle, SMT Feeder etc. If there is any need, please contact us.
| Applicable stencil size | 1050mm(L)×900mm(W)×1900mm(H) |
| Cleaning method | Two fluid cleaning |
| Drying method | High speed centrifugation |
| Transmission horsepower | 3HP |
| Cleaning pressure | Liquid pressure: 3-8Kgf/cm2 Air pressure: 0.2-0.5Mpa |
| DI water supply | Flow rate: >7LPM Resistivity: >17MΩ |
| Gas supply | Pressure: 0.45-0.7Mpa; flow rate: >30m3/H (cleanliness meets cleaning requirements) |
| Pure water inlet path | Ø12mm hose or PT1/2" internal thread |
| Exhaust port diameter | ~4′′×2 (need to enhance ventilation, wind speed is greater than 3m/sec) |
| Machine net weight | About 450KG |
