Rugged PDA camera scanner 4G bluetooth data collector
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, FCA
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3-15 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 1000000 |
| Supply Ability: | 20000000 |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Certificate: | ISO9001 |
| HS Code: | 1223 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

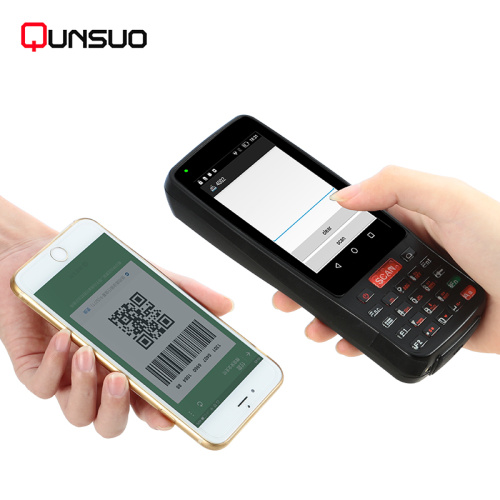

PDA-401 Rugged PDA camera scanner 4G bluetooth data collector
Product Features
1.Android 6.0 device with 4G,3G,wifi ,NFC,GPS,bluetooth,1D laser barcode scanner.
2.IP65 industrial grade rugged classic design
3.With large capacity battery(4000 Mah)
4.Can be connected with many peripheral devices,good compatibility.
5.Provide free SDK for secondary development
Android Pda Scanner；Pda Scanner；Pda Android Barcode Scanner；
Pda Barcode Scanner Android；Pos With Pda；Handheld Android Pda
Applications files
Supermarket cashless payment, inventory management,logistics tracking, mobile communications, business data management, service and other fields
| PDA401 Technical Specifications | mobile data terminal android |
| Mechanical | |
| Dimensions | 162mm×70mm×31mm |
| Weight | 345g without accessories |
| Environmental | |
| Operating Temperature | -10° to 50°C (14° to 122°F) |
| Storage Temperature | -20° to 70°C (-13° to 158°F) |
| Humidity | 0 to 95% relative humidity (non-condensing) |
| Tumble |
Designed to withstand up to 1,600 (1m) tumbles per IEC 60068-2-32 specification |
| Environmental Sealing |
Independently certified to meet IP64 standards for moisture and particle intrusion |
| System Architecture | |
| Processor | 28nm ARM Quad-core cortex A53 1.3-1.5GHz |
| GPU | Mali-T720 |
| Memory RAM | 1GB |
| Storage | eMMC 8G and Support Max64GB SD card |
| Display |
4.0 inch 480*800 high resolution, full axis viewing IPS LCD With Industrial touch panel |
| Keypad | 23 physical Keyboards |
| Camera | Rear 5.0M AF camera |
| Battery | Internal 4000mAH rechargeable high-performance battery |
| Interface |
Micro SIM slot*2//TF card slot *1/RS232*1/Micro USB*1 (PSAM card slot *2 ,Type-c*1 Optional) |
| Platform | Android 6.0、7.0 |
| Communicate | |
| GSM/GPRS/EDGE | 850/900/1800/1900MHz |
| 3G Network | CDMA/EVDO/WCDMA/TD-SCDMA |
| LTE 4G network | LTE-FDD:B1/ B3/ B7/B8/B28 and LTE-TDD:B38/B39/B40/B41 |
| Wi-Fi | IEEE 802.11 b/g/n |
| Bluetooth | BT4.0 |
| GPS |
Integrated autonomous GPS receiver with built-in Assisted-GPS (A-GPS) services and software utilities |
| Data Collection | |
| 1D barcode | Symbol Technologies laser Scan Engine |
|
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5,Codabar, MSI, RSS,etc |
|
| 2D QR | Pro CCD Scan Mobile Engine |
|
PDF417/ MicroPDF417/ Composite/ TLC-39/Datamatrix/ QR/ code/ Micro/ QR/ code/ Aztec/MaxiCode;/ Postal/ Codes:/ US/ PostNet/ US/ Planet/UK/Postal/ Australian/Postal/Japan/Postal |
|
| NFC | |
| Frequency | 13.56MHz |
| W/R Tag | ISO/IEC 14443A/B,ISO15693,Mifre,Felica |
1. All items will be 100% check or tested before shipping.
2. Warranty is 12 months, if there is no Man-made problem,we will replace or repair for your freely.
3. If you need to exchange or return,please request a return address from us.Items return must contains all accessories and packing well.The buyer should pay for the return shipping fee.
4. For the product maintenance,we will send the video for your reference.If necessary,we will send technical staff to train client's repairer for free.
5. We own the best after-sale service, if any problems happened,our team will do our best to solve for customers.
6. We will provide technical assistance for the whole life.
7. Please send by EMS or your local post when send back
1. Are you manufacturer?
Yes. we are manufacturer profession in thermal printer,handheld PDA, barcode scanner etc.
2. Would you provide SDK for me ?
Yes, we offer free SDK if you order sample.
3. What warranty for the products?
According to our warranty policy, we will provide 12 months warranty time from the shipment date for our products (Excluded the consumable parts).
4. What is the mimimum order?
We accept one piece for standard products. If require OEM, will see detailed requirements and confirm MOQ to you
5. Can we get the free sample?
Sorry, generally we would not provide the free sample, If the cusomer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
When they place the mass order ,we can return the sample cost to the customers.
6. Do you accept Paypal?
Yes, we accept paypal, Besides ,we accept Western Union ,T/T.L/C,Secure payment (Escrow Service from Alibaba) and so on
7. What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment, For quantity, the leading time will be 1-4 weeks depends on exact quantity.
8. Which way to deliver the goods?
By Express: DHL UPS TNT FEDEX or Aramex EMS E-packing
By Sea: Inform us the Sea Port to check which ship line
By air: Inform us the Airport to check which flight
Or pick up by the customers
9. What the after sale service?
a. Our all products will provide 12 months warranty
b. Enough stock spare parts for guarantee
c. Professional enginerrs provide 7*24 online service
