China MAINTEX Motor for 24BYJ48 12 vdc stepping motor

Specification:

Diameter: 24 mm
Step Angle: 5.625 degree

Voltage: 4V, can be customized.

Phase: 4

Rotation: CW/CCW

Excitation: Bipolar, 1-2

Parameter of China MAINTEX Motor for 24BYJ48 12vdc stepping motor

Items	Spec.
Step Angle(degrees)	5.625 degree/64
Holding Torque	60mN.m
Reduction Ratio	1:64
Detent torque	≥90mN.m
Pull out torque	≥90mN.m
Current / Phase	21 ohm±10%
Height of output shaft	10.2±0.5mm
Input Torque	≥90mN.m(DC4V,400HZ)
OEM	Accept

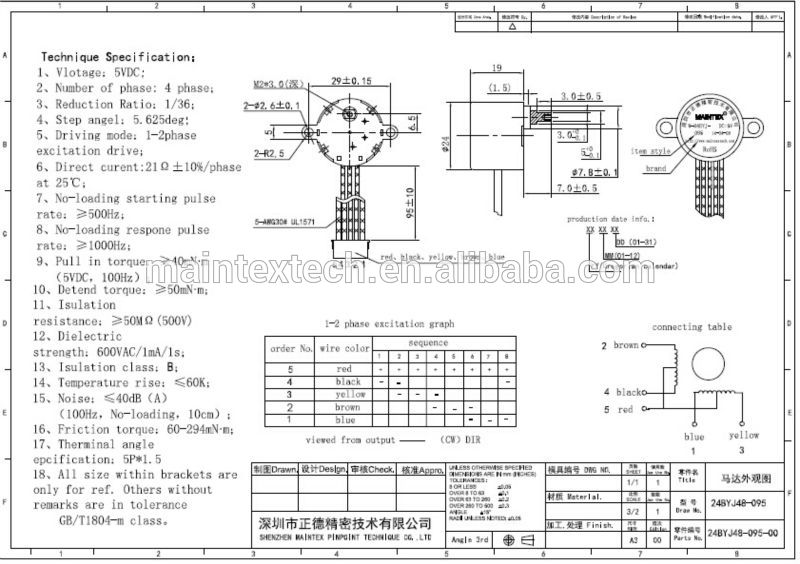

Drawing of China MAINTEX Motor for 24BYJ48 12vdc stepping motor

Application of 24BYJ48 mini motor air conditioner permanent magnet dc motor

Our Company Maintex&FM

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
