20BYJ46 geared reducer stepper motor wiring micro stepping motors,5v dc worm micro gear step motor price

Product Description

Diameter: 20 mm
Step Angle: 7.5°

Voltage: 5V, can be customized.

Phase: 4

Rotation: CW/CCW

Excitation: Bipolar, 1-2

Parameter of 20BYJ46 stepper motor wiring microstepping

Items	Spec.
Resistance per phase	22±10%/phase
Response frequency	≥600HZ
Starting frequency	≥500HZ
Detent torque	≥60mN.m
Pull out torque	≥60mN.m
Dielectric strenth	3 MAX/MΩ
Step angle	7.5 degree
Reduction ratio	1/85
OEM	Accept

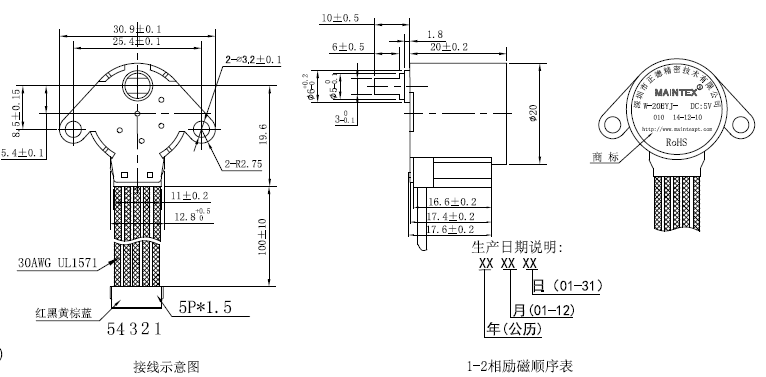

Drawing of 20BYJ46 stepper motor wiring microstepping

Company Information

Our Factory

Equipment

Advantages

Exhibitions

Partners

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
