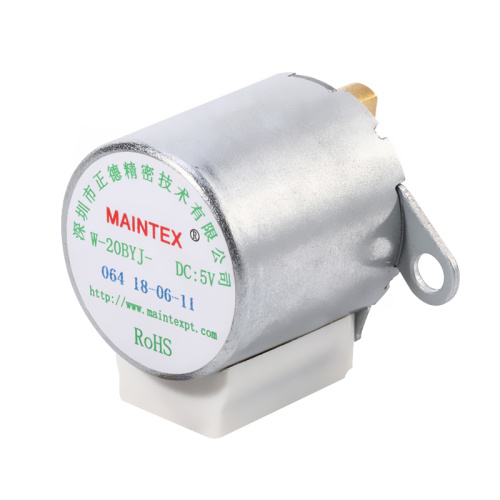

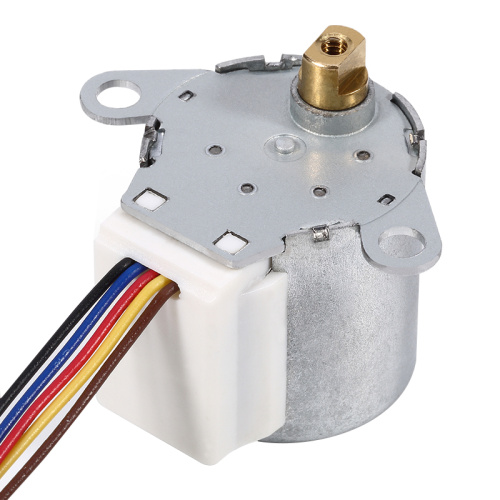

High Torque 5V 4Phase Geared Reducer Stepper Motor

High Torque 5V 4Phase Geared Reducer Stepper Motor

Get Latest Price

Payment Type:: T/T

Incoterm:: FOB, EXW

Min. Order:: 2000 Piece/Pieces

Min. Order:: 2000 Piece/Pieces

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100000
Supply Ability:	100000
Payment Type:	T/T
Incoterm:	FOB,EXW
Certificate:	ROHS
HS Code:	8501101000
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

The stepping motor is an open-loop control motor that converts electrical pulse signals into angular displacement or linear displacement. It is the main executive element in modern digital program control systems and is widely used.

1. Specification of Maintex 20BYJ46 High Torque 5V 4 Phase Geared Reducer Stepper Motor:

MODEL	ITEMS	SPEC
20BYJ46-064	Rated Voltage	5VDC
	Phase	4
	Reduction Ratio	1/85
	Step Angle	7.5°
	Exciting Method	1-2
	Direct-current Resistance	16Ω±10%(25°C)
	No-load pull-in Frequency	≥800Hz
	No-load pull-out Frequency	≥500Hz
	pull-in Torque	≥80mN.m(5VDC.400Hz)
	Detent Torque	≥50mN.m
	Insulation Resistance	≥50MΩ 500VDC
	Dielectric Strenght	500/600VAC(min)
	Insulation Class	B
	Noise	≤40dB
	Friction Torque	39.2-196mN.m
	Terminal Spec	1.5mm*5P

Parameters can be customized according to your actual demands, for detailed informations please contact with us or leave a message.

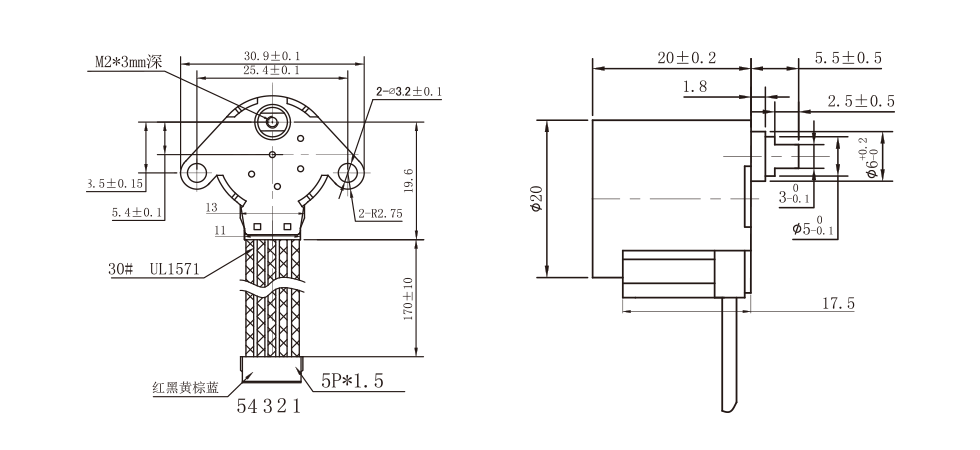

2. Drawing of Maintex 20BYJ46 High Torque 5V 4 Phase Geared Reducer Stepper Motor:

big stepper motor

step motor 20byj46

20byj46 stepping motor gearhead

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor, Barrier Gate, Treadmill motor and other motors' OEM / ODM service, please contact us for further information.
