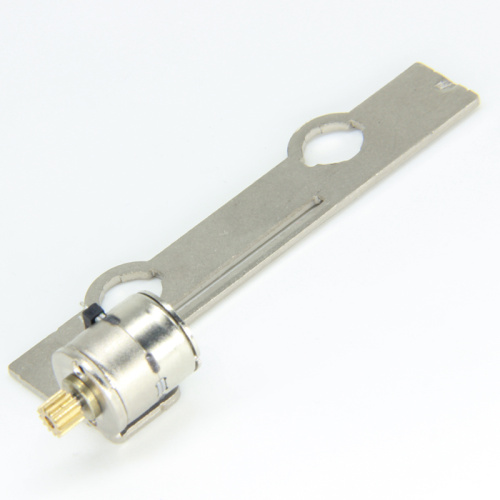

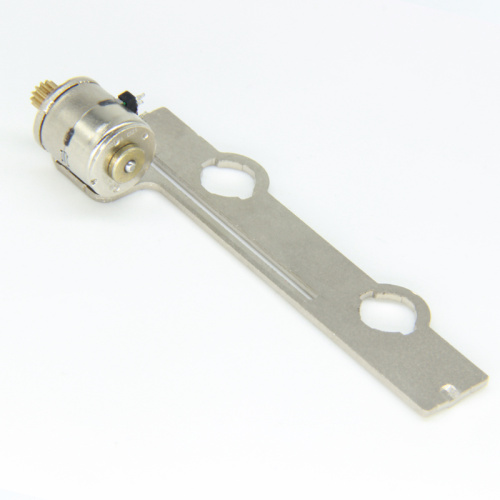

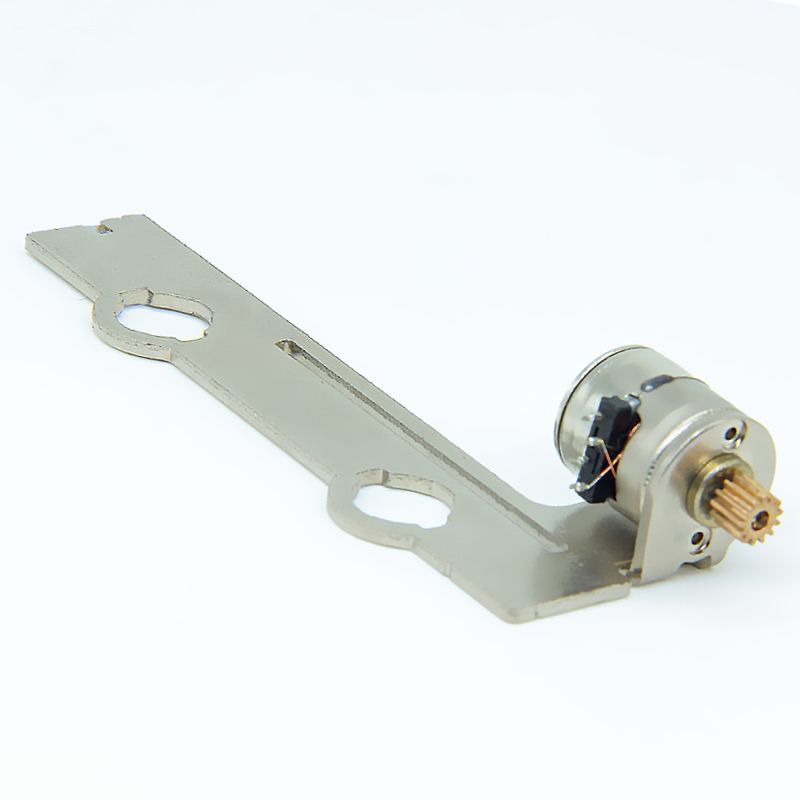

10BY25-013 Lead Screw Stepper Motor

-----------professional globle motor supplier

Product Description

Maintex specializes in offering 2-phase, 4-phase micro stepper motors, covering a wide range of applications with a frame size of BY 10 to 42. Made of high quality cold roll sheet copper and anti-high temperature permanent magnet, all of Maintex's stepper motors are a complete design of high reliability, high accuracy, and featuring low noise, low vibration, low motor heating and smooth run.

Characteristic

Model	Items	SPEC
10BY25-019	Driving Voltage	5±10%VDC
	Phase	2
	Exciting Method	2月2日
	Exciting Mode	Bipolar
	Step Angle	18±7%°
	Rotor Inertia	0.06gcm²
	Rotation	CW/CCW
	Resistance	20±7%Ω(25°C)
	Inductance	3.5±20%mH
	Max.pull-in Frequency	1000Hz
	Max.pull-out Frequency	1200Hz
	Holding Torque	20gf.cm(5VDC)
	Detent Torque	10gf.cm
	Insulation Resistance	100MΩ 500VDC
	Noise	≤40dB

Basic Drawing
