Basic Info

Product Description

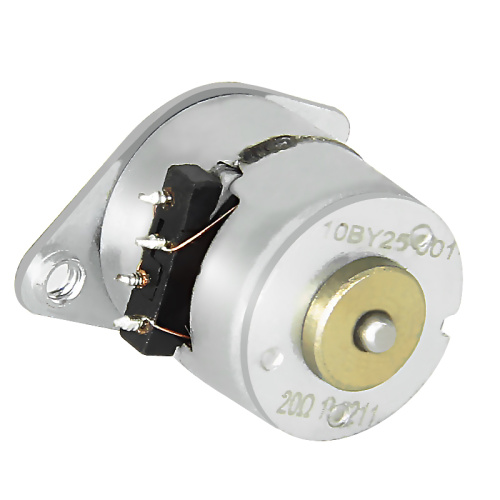

10BY25 Waterproof Stepper Motor for Printer

10BY25 Waterproof Stepper Motor for Printer Parameters

Model	Items	SPEC
10BY25	Driving Voltage	5±10%VDC
	Phase	2
	Exciting Method	2-2
	Exciting Mode	Bipolar
	Steo Angle	18±7%°
	Rotor Inertia	0.06gcm²
	Rotation	CW/CCW
	Resistance	20±7%Ω(25°C)
	Inductance	3.5±20%mH
	Max.pull-in Frequency	1000Hz
	Max.pull-out Frequency	1200Hz
	Holding Torque	30gf.cm(5VDC)
	Detent Torque	6gf.cm
	Insulation Resistance	100MΩ 500VDC
	Noise	≤40dB

Main Performance of 10BY25 Waterproof Stepper Motor for Printer

Diameter: 10 mm

Step Angle: 18°

Voltage: 5V, 15V, 25V, customized.

Phase: 2

Rotation: CW/CCW

Excitation: Bipolar, 2-2

Drawing of 10BY25 Waterproof Stepper Motor for Printer
