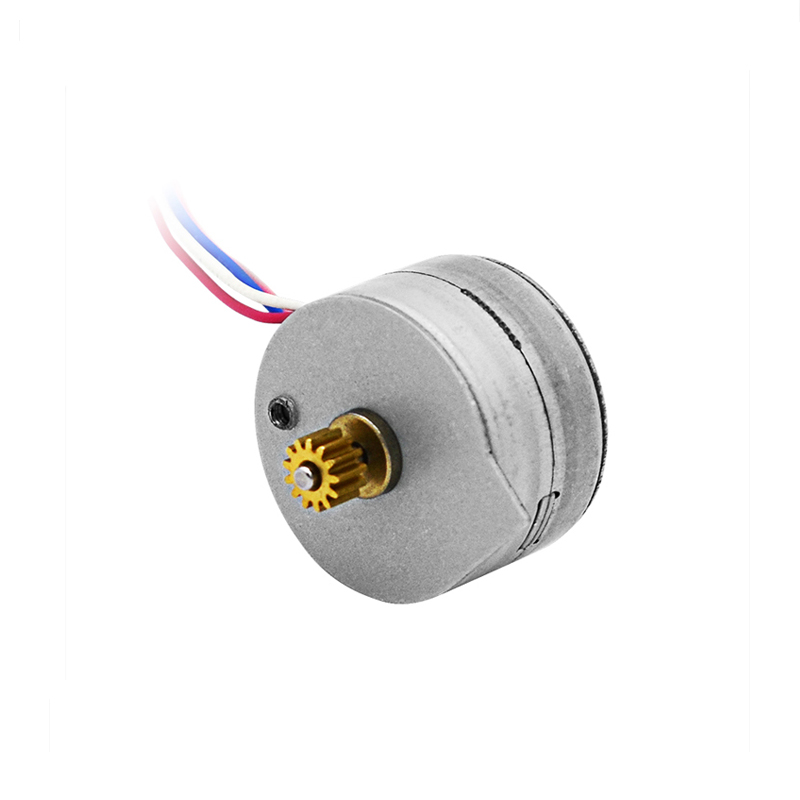

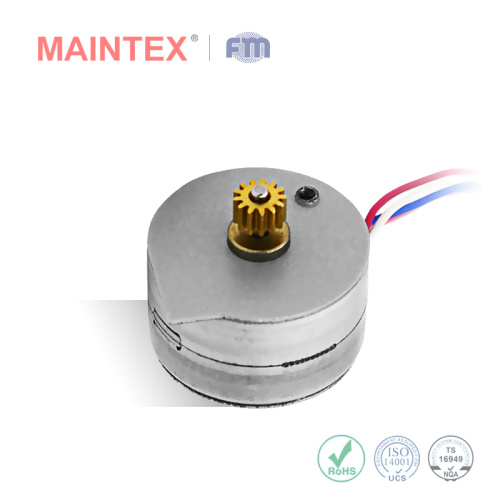

15BY25-103 Waterproof Stepper Motor for Scanner

Parameter of 15BY25-103 Waterproof Stepper Motor for Scanner

Model	Items	SPEC
15BY25-103	Driving Voltage	5±10%VDC
	Phase	2
	Exciting Method	2-2
	Exciting Mode	Bipolar
	Steo Angle	18±7%°
	Rotor Inertia	0.06gcm²
	Rotation	CW/CCW
	Resistance	12±10%Ω(25°C)
	Inductance	4±20%mH
	Max.pull-in Frequency	1000Hz
	Max.pull-out Frequency	1500Hz
	Holding Torque	30gf.cm(5VDC)
	Detent Torque	10gf.cm
	Insulation Resistance	100MΩ 500VDC
	Noise	≤40dB

waterproof stepper motor, waterproof stepper motor for scanner, stepper motor for scanner

All parameter can be customized according to your actural demand, for detailed information please contact me or leave a message.

Drawing of 15BY25-103 Waterproof Stepper Motor for Scanner

waterproof stepper motor, waterproof stepper motor for scanner, stepper motor for scanner
