Basic Info

Place of Origin:	China
Productivity:	100000
Supply Ability:	100000
Payment Type:	T/T,Paypal
Incoterm:	FOB,EXW
Certificate:	ROHS
HS Code:	8501101000
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

Maintex Factory supply 12Mm N20 Carbon Brushed Dc Motor For Electronic Lock.

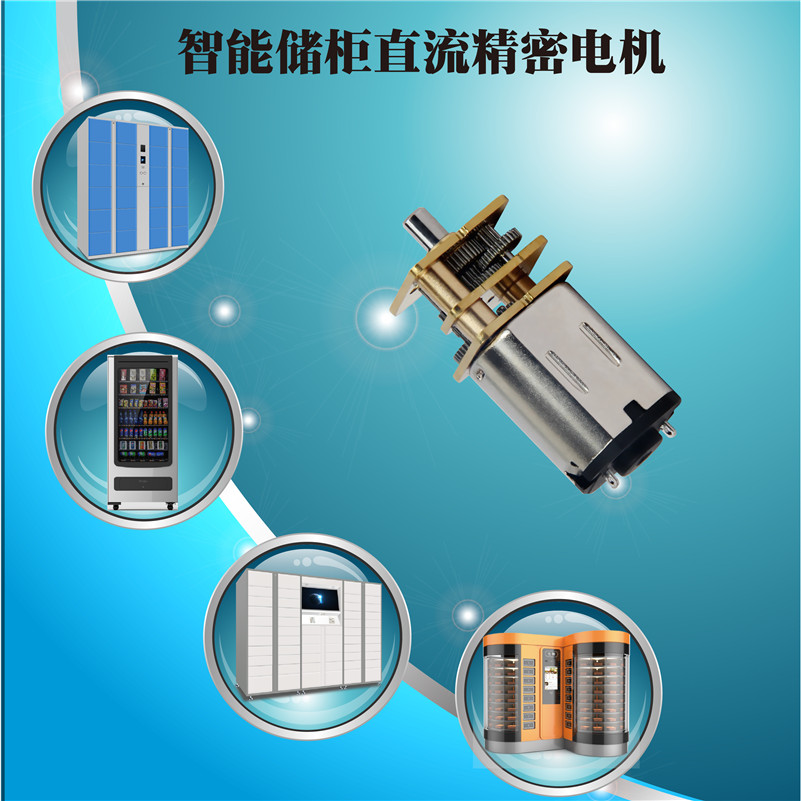

1 = 9.5G = 0.0095KG all-metal gear can be reverse / forward / reverse with self-locking function, low noise and large torque. The motor is small, useful, and widely used. Yes. Baby size is small, torque is large, current is small The larger the reduction ratio, the quieter the motor will run. Electronic door locks, automatic door locks, intelligent robots, toy cars, DIY professional motors .... The working temperature of the N20 geared motor is in the range of 40-50 degrees.

MODEL	ITEMS	SPEC
N20	Rated Voltage	6VAC
	Direction of Rotation	CCW
	Operating Temperature	-10 °C ~ +50 °C
	Operating Humidity	30% ~ 80%
	Gearbox Ratio	1:210
	Rated Speed	21000 ± 10% rpm
	No Load Current	<85mA
	No Load Speed	100 ± 10% rpm
	Starting Voltage	0.5 V
	Starting Current	22mA
	Rated Loading	0.4Kg • cm
	Rated Load Current	217mA
	Rated Load Speed	77 ± 10% rpm
	Stall Current	0.82A Max
	Maximum Torque	1.8Kg.cm Max
	Rated Power	0.33W

Parameters can be customized according to your actual demands, for detailed informations please contact with us or leave a message.

dc motor with encoder 12mm electronic lock motor micro gear motor n20 Maintex 12mm N20 dc Motor For Electronic Lock

All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
