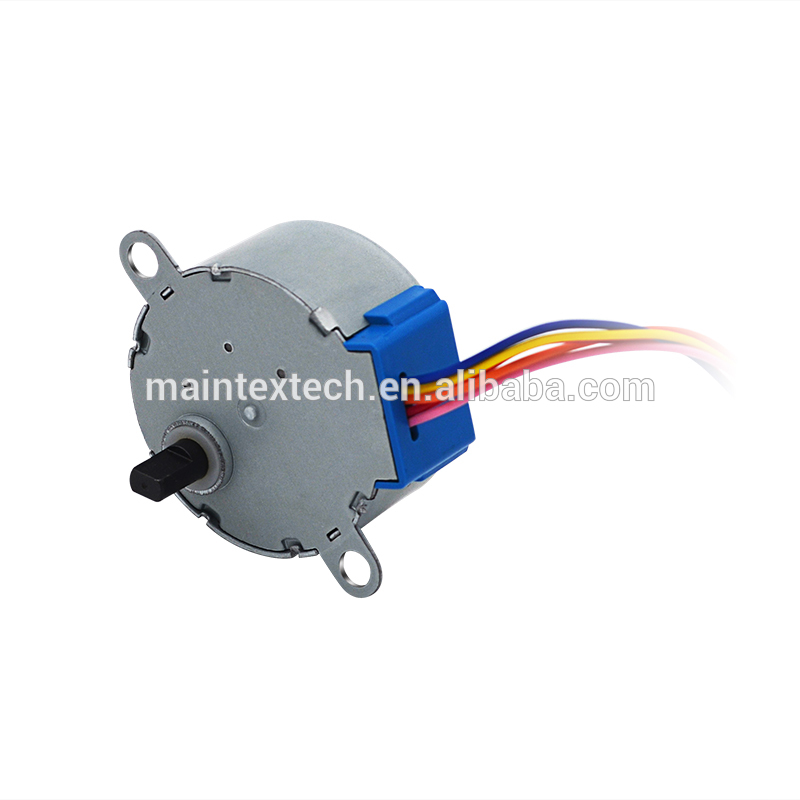

Motor with Gear Reduction| Micro Linear Stepper Motor

12V Motor with Gear Reduction | Micro Linear Stepper Motor is a type of Micro Stepper Motor and also belongs to Stepper Motor. Microstepping is a method of controlling stepper motors, typically used to achieve higher resolution or smoother motion at low speeds.

Micro Stepper Motor divides each full step into smaller steps to help smooth out the motor’s rotation, especially at slow speeds.

Microstepping is achieved by using pulse-width modulated (PWM) voltage to control current to the motor windings. The driver sends two voltage sine waves, 90 degrees out of phase, to the motor windings. While current increases in one winding, it decreases in the other winding. This gradual transfer of current results in smoother motion and more consistent torque production than full- or half-step control.

Main Performance of Permanent Magnet 12V Motor with Gear Reduction | Micro Linear Stepper Motor

Diameter: 35 mm
Step Angle: 7.5°

Voltage: 6V, customized.

Phase: 4

Excitation: 1-2

Parameter of Permanent Magnet 12V Motor with Gear Reduction | Micro Linear Stepper Motor

Driving Voltage	6±10% V
Phase	4 Phase
Lead Wire	5
Excitation	1-2
Reduction	1/42.5
Step Angle	7.5°
Resistance	15±10% Ω
Pull In Frequency	500 Hz
Pull Out Frequency	700 Hz
Pull In Torque	260 mN.m
Detent Torque	260 mN.m
Insulation Resistance	50 MΩ
Dielectric Strength	600 VAC/1mA/1s
Friction Torque	2.5-3.0 Kgf.cm
Insulation Grade	B
Temperature Rise	60 K
Weight	69 g
Noise	40 dBmax

All parameter can be customized according to your actural demand, for detailed information please contact me or leave a message.

Drawing of Permanent Magnet 12 Volt dc Electric Motor
