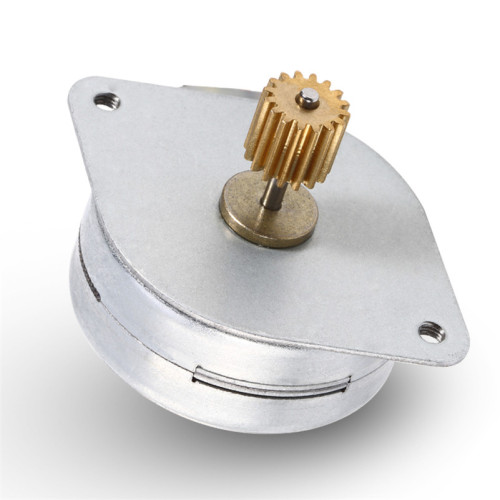

Maintex 35BY212 24V 35mm Permanent Magnet Stepper Motor
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, EXW
- Min. Order:
- 2000 Piece/Pieces
- Min. Order:
- 2000 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 100000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | ROHS |
| HS Code: | 8501101000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Maintex 35BY212 Diameter 35mm 2 Phase 24V Permanent Magnet Stepper Motor For Pos Machine.
In the whole step operation, the same stepper motor can be equipped with both full / half step driver and subdivision driver, but the operation effect is different. The stepper motor driver cyclically excites the two coils of the two-phase stepper motor according to the pulse / direction instruction (that is, the coil is charged to set the current). Each pulse of this driving method will move the motor by a basic step angle, which is 1.80. Degrees (a total of 200 step angles per revolution of a standard two-phase motor).
1. Specification of Maintex 35BY212 Diameter 35mm 2 Phase 24V Permanent Magnet Stepper Motor For Pos Machine:
| MODEL | ITEMS | SPEC |
| 35BY212-018 | Driving Voltage | 24±10%VDC |
| Phase | 2 | |
| Exciting Method | 2-2 | |
| Exciting Mode | Bipolar | |
| Step Angle | 7.5° | |
| Rotor Inertia | 0.06gcm² | |
| Rotation | CW/CCW | |
| Resistance | 15±10%Ω(25°C) | |
| Inductance | 17±20%mH | |
| Max.pull-in Frequency | 800Hz | |
| Max.pull-out Frequency | 1000Hz | |
| Holding Torque | 300gf.cm(24VDC) | |
| Detent Torque | 150gf.cm | |
| Insulation Resistance | 100MΩ 500VDC | |
| Noise | ≤40dB |
Parameters can be customized according to your actual demands, for detailed informations please contact with us or leave a message.
2. Drawing of Maintex 35BY212 Diameter 35mm 2 Phase 24V Permanent Magnet Stepper Motor For Pos Machine:
All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
