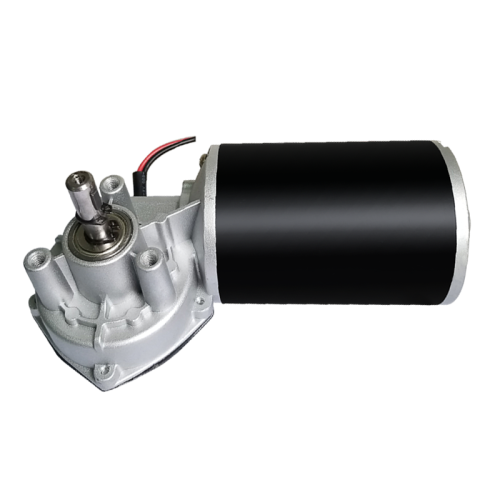

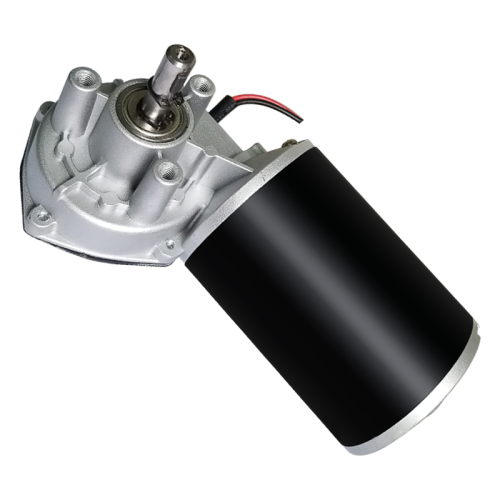

ZD76-12120-50 DC Gear Motor is a type of geared motor.

The geared motor is an integrated body of the reducer and the motor. Such an integrated body is also commonly referred to as a gear motor or a geared motor.

The Gear Motor can be divided into Gear Reduction Motor, Geared Stepper Motor, Brushless Gear Motor, Carbon Brush Gear Motor and other types.

ZD76-12120-50 DC Gear Motor Parameters

MODEL	ITEMS	SPEC
ZD76-12120-50	Driving Voltage	12VDC
	Output Power	120W
	No-load Speed	50±5rpm
	No-load Current	≤1.5A
	Load Speed	38±5rpm
	Load Current	≤8A
	Peak Torque	≥8N·m
	Reduction ratio	1:75
	Length	97mm
	Diameter	76mm

Drawing of ZD76-12120-50 DC Gear Motor

Applications of Gear Motor

• Smart homes

• Car drives
• Robot drives
• E-commerce logistics warehouses
• Precision instruments
• Industrial automation equipments
• Electronic products
• Precision machineries
