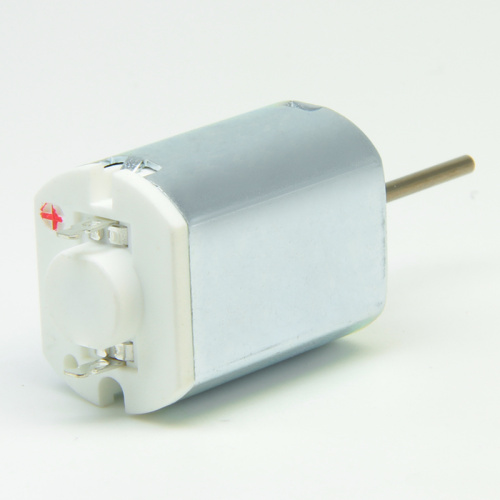

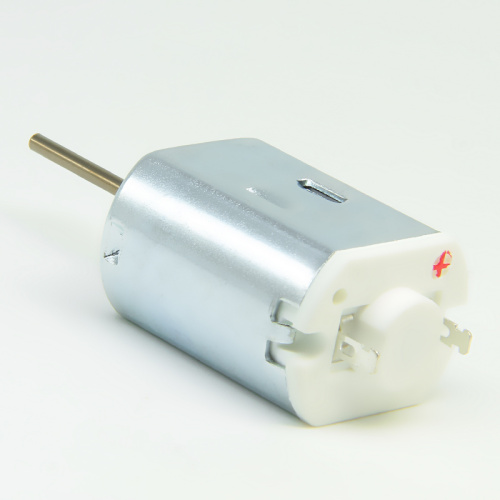

FM-40-RIN-CF Carbon Brush Motor is a type of Carbon Brush Motor.
Carbon Brush Motor is a rotary electric machine that includes a brush device that converts electrical energy into mechanical energy (electric motor) or converts mechanical energy into electrical energy (generator). Brushed motor is the basis of all motors. It has the characteristics of quick start, timely braking, smooth speed regulation in a wide range, and relatively simple control circuit.

FM-40-RIN-CF Carbon Brush Motor Parameters

MODEL	ITEMS	SPEC
FM-40-RIN-CF	Voltage	24VDC
	No-load Current	6mA
	No-load Speed	2450rpm
	Rated Torque	5N·m
	Load Current	13mA
	Load Speed	2200rpm
	Peak current	74.6mA
	Peak Torque	49N·m
	Output Power	0.11W
	Diameter	23.5mm
	Length	30mm

Drawing of FM-40-RIN-CF Carbon Brush Motor

FM-40-RIN-CF

Applications of Carbon Brush Motor
• Electric toothbrush
• Electric toys
• Electric tools
• Electric callus removers
• Robot vacuum cleaner
• Automobile electric components
• Small home appliances
• Treadmill
• Medical - Powered surgical instruments, Dental hand tools, Infusion, Volumetric & Insulin Pumps, Diagnostic & scanning equipment
• Security & Access - Security cameras, Locks, Bar code readers, Paging systems
• Aerospace & Defense - Cockpit gauge, Indicators, Satellites, Optical scanners
• Robotics & Factory Automation - Conveyors, Remote controlled vehicles, Industrial robots
• Power Hand Tools - Shears, Pruning hand tools, Nail guns
• Office equipment
• Semiconductors
• Model railways
• Document handling equipment
• Optics equipment
• Automotive
• Transportation equipment
• Audio & video equipment
• Medical Analyzers
• Infusion Pumps
• Electronic Assembly Surface Mount Equipment - Electronic assembly, Robotics and Automated machinery equipment and Pick and place machinery
