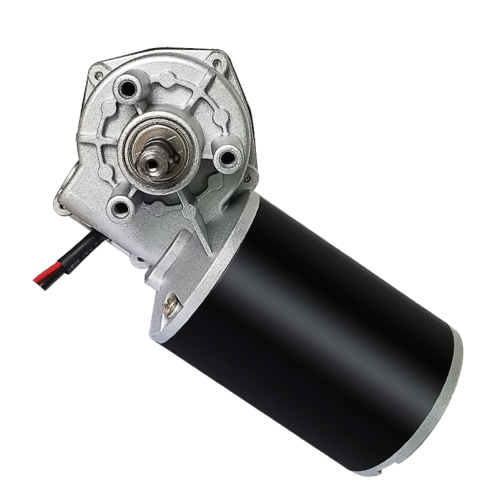

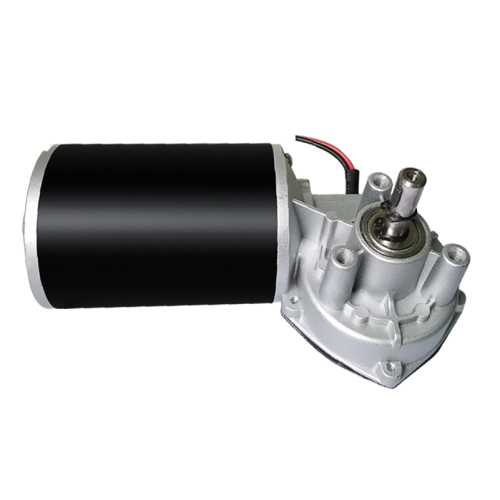

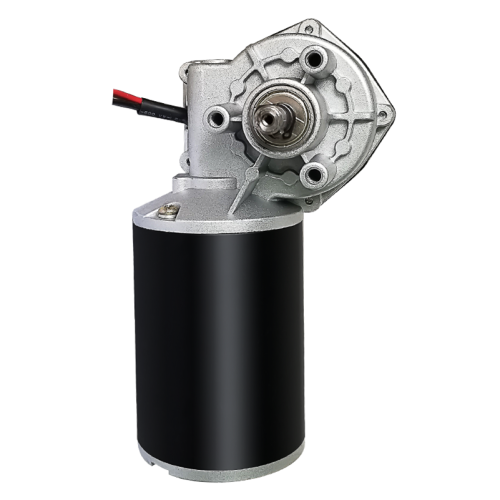

12V DC Geared Motor 120W Worm Gear Motor
- Payment Type:
- T/T, Paypal
- Incoterm:
- FOB, EXW
- Min. Order:
- 2000 Bag/Bags
- Min. Order:
- 2000 Bag/Bags
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 100000 |
| Payment Type: | T/T,Paypal |
| Incoterm: | FOB,EXW |
| Certificate: | ROHS |
| HS Code: | 8501101000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
The geared motor is an integrated body of the reducer and the motor. Such an integrated body is also commonly referred to as a gear motor or a geared motor.
The Gear Motor can be divided into Gear Reduction Motor, Geared Stepper Motor, Brushless Gear Motor, Carbon Brush Gear Motor and other types.
Typical application areas: Electric drying racks, electric curtains, sole cleaning machines.
Parameters:
MODEL
ITEMS
SPEC
ZD76-12120-50
Driving Voltage
12VDC
Output Power
120W
No-load Speed
50±5rpm
No-load
Current
≤1.5A
Load Speed
38±5rpm
Load Current
≤8A
Peak Torque
≥8N·m
Reduction
ratio
1:75
Length
97mm
Diameter
76mm
ZD76 series:
| Product type |
Voltage (VDC) |
Power (W) |
No-load speed (RPM) |
No-load Current (A) |
load speed (RPM) |
Load current (A) |
load torque (N.m) |
Reduction ratio |
length (mm) |
Outer diameter (mm) |
| ZD76L-12120-50 | 12 | 120 | 50±5 | ≤1.5 | 38±5 | ≤8 | ≥8.0 | 1:75 | 97 | 76 |
| ZD76L-2495-180 | 24 | 95 | 180±5 | ≤1.2 | 15±5 | ≤4.5 | ≥4.5 | 1:20 | 97 | 76 |
| ZD76L-2495-150 | 24 | 95 | 150±5 | ≤1.0 | 130±5 | ≤3.5 | ≥3.3 | 1:20 | 97 | 76 |
| ZD76L-24150-60 | 24 | 150 | 60±5 | ≤1.5 | 48±5 | ≤6.0 | ≥12 | 1:60 | 97 | 76 |
| ZD76L-220200-60 | 220 | 200 | 60±5 | ≤0.2 | 45±5 | ≤0.8 | ≥15 | 1:60 | 97 |
76 |
Parameters can be customized according to your actual demands, for detailed informations please contact with us or leave a message.

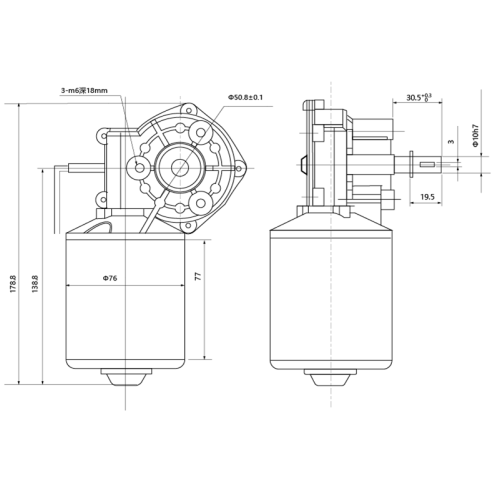

Drawing:
Applications of Gear Motor
• Smart homes
• Car drives
• Robot drives
• E-commerce logistics warehouses
• Precision instruments
• Industrial automation equipments
• Electronic products
• Precision machineries
• Electric lifting equipments
• Agricultural seeders
• Electric garages
• Car electric shutters
• Canvas machineries
• Household appliances
• Automatic hoe machines
• Bread machines
• Putter equipments
• Automatic oil press machinces
• Cooking machines
• Electric drying racks
• Electric curtains
• Sole cleaning machines
• Sweeping robots
• Oil pumps
• Air pumps
• Water pumps
All characteristics above are customizable, if you want Worm Gear Motor, Stepper Motor, Brushless DC Motor, Brush Motor and other motors' OEM / ODM service, please contact us for further information.
